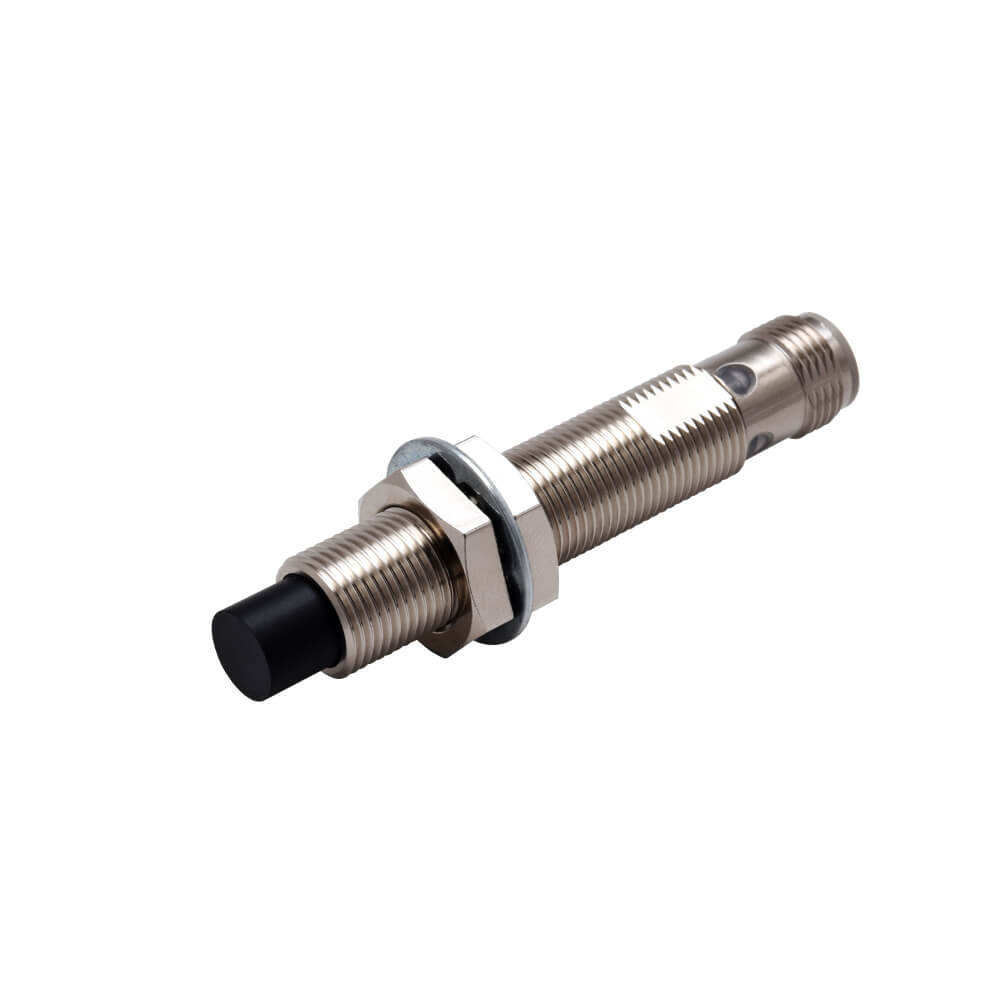

Omron E2E-X10MB2L12-M1 Inductive Proximity Sensor

Technical Description

Modern industrial automation systems frequently require reliable position feedback and object detection without mechanical contact. The Omron E2E-X10MB2L12-M1 Inductive Proximity Sensor is designed to address these requirements through electromagnetic sensing technology. This model belongs to the E2E NEXT family and features a 10 mm sensing distance combined with a PNP normally closed output.

The sensor utilizes a cylindrical M12 threaded housing manufactured from nickel-plated brass. Its connector-based design allows quick installation and replacement while supporting maintenance procedures commonly used in automated production environments. The combination of IP67 and IP69K protection ratings enables operation in facilities exposed to moisture, coolant, dust, and routine washdown procedures.

Working Principle

The sensing face continuously generates a high-frequency electromagnetic field. When a conductive metallic target enters the detection zone, eddy currents are created within the target material. These currents influence the oscillation characteristics of the internal circuit.

The sensor electronics monitor the resulting changes and switch the output state once the predefined threshold is reached. Since the detection process is entirely contactless, the sensing mechanism experiences no mechanical wear during normal operation.

The Omron E2E-X10MB2L12-M1 Inductive Proximity Sensor is optimized for metallic object detection and can be integrated into machine control systems requiring consistent switching performance.

Typical Areas of Use

• Automated assembly equipment
• Conveyor positioning systems
• Material transfer stations
• Machine tool automation
• Industrial robotics
• Packaging machinery
• Metal processing equipment
• Automated storage systems

Industrial Applications

In automated assembly environments, the sensor can verify fixture positioning and confirm the presence of metallic components before process execution. Reliable detection contributes to improved machine sequencing and reduced process interruptions.

Within logistics and material handling systems, the sensor can monitor pallet carriers, transfer mechanisms, and indexing components. The 10 mm sensing range offers installation flexibility when larger mechanical tolerances must be accommodated.

For machine tool applications, the sensor may be used to detect carriage positions, metal workpieces, and machine actuators. Its robust housing construction helps withstand vibration and exposure to industrial contaminants.

Advantages

• Non-contact metal detection
• 10 mm sensing distance
• PNP normally closed output configuration
• M12 connector for simplified wiring
• Nickel-plated brass housing
• 400 Hz response frequency
• IP67 and IP69K environmental protection
• Suitable for demanding industrial conditions

Sector-Specific Examples

Automotive Manufacturing

Detection of fixture clamps, positioning mechanisms, and transfer equipment.

Packaging Operations

Monitoring metal machine elements involved in indexing, carton handling, and product movement.

Warehouse Automation

Position verification of automated carriers and transport systems.

Metalworking Facilities

Detection of metal blanks, machine slides, and process positioning elements.

Factors to Consider During Selection

Engineers should evaluate sensing distance requirements, available mounting space, output configuration, environmental exposure, and controller compatibility before selecting an inductive proximity sensor.

The Omron E2E-X10MB2L12-M1 Inductive Proximity Sensor provides a combination of extended sensing distance, compact M12 dimensions, and connector-based installation, making it suitable for a wide variety of industrial automation projects.

Additional information about compatible sensing technologies can be found within Omron sensor series.

Frequently Asked Questions

What is the sensing distance of this sensor?

The nominal sensing distance is 10 mm.

Which output type does the sensor provide?

It provides a PNP normally closed (NC) output.

Is the sensor shielded or unshielded?

This model is designed as a non-flush (unshielded) sensor.

What supply voltage is required?

The operating voltage range is 10 to 30 VDC.

What connection method is used?

The sensor uses a standard M12 connector connection.

Can it operate in washdown environments?

Yes. The sensor is rated IP67 and IP69K for demanding industrial environments.

Where is the Omron E2E-X10MB2L12-M1 Inductive Proximity Sensor commonly installed?

The Omron E2E-X10MB2L12-M1 Inductive Proximity Sensor is commonly used in assembly machines, conveyors, robotic systems, and material handling equipment.

What materials can the sensor detect?

The sensor is intended for the detection of metallic targets using inductive sensing technology.
