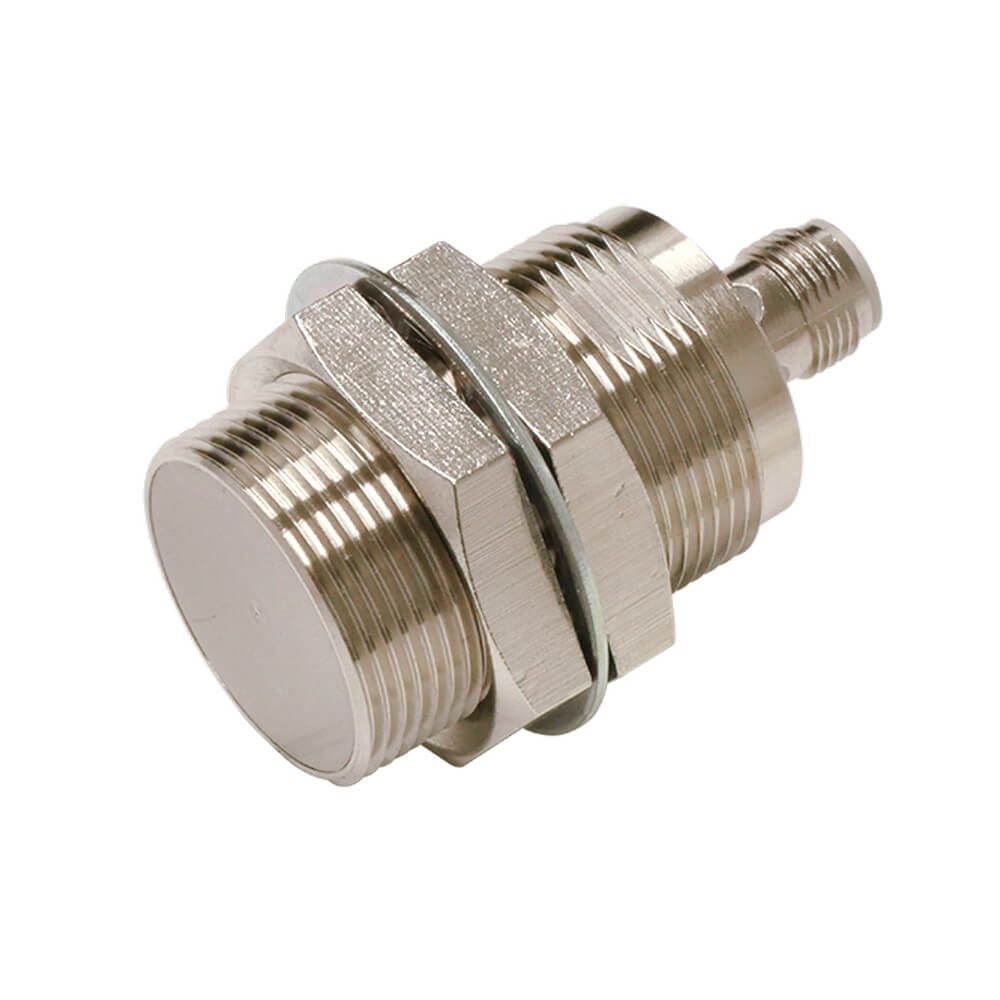

Omron E2E-X10C230-M1 Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Sensing Distance | 10 mm |
| Housing Size | M30 |
| Mounting Style | Shielded (Flush) |
| Output Type | NPN, Normally Closed (NC) |
| Supply Voltage | 10 to 30 VDC |
| Response Frequency | 400 Hz |
| Connection Type | M12 Connector |
| Housing Material | Nickel-Plated Brass |
| Protection Rating | IP67 / IP69K |
| Operating Temperature | -40°C to +85°C |
| Current Consumption | Max. 16 mA |
Technical Description
The Omron E2E-X10C230-M1 Inductive Proximity Sensor is a cylindrical M30 sensor designed for reliable detection of ferrous metal targets in industrial automation systems. The sensor belongs to the E2E NEXT family and combines a compact mechanical design with stable sensing characteristics. Its shielded sensing structure allows flush mounting while maintaining a nominal sensing distance of 10 mm.
The Omron E2E-X10C230-M1 Inductive Proximity Sensor uses an NPN normally closed output and operates from a DC supply ranging from 10 to 30 VDC. The housing is manufactured from nickel-plated brass and is designed for demanding industrial environments where exposure to dust, moisture, and washdown procedures may occur.
Working Principle
The sensor generates a high-frequency electromagnetic field at the sensing face. When a metallic object enters this field, eddy currents are induced in the target material. These currents alter the oscillation characteristics inside the sensing circuit. The internal electronics detect this change and switch the output accordingly.
Because the sensing method is contactless, there is no mechanical wear during operation. This makes the sensor suitable for repetitive positioning, object detection, and machine status monitoring applications.
Typical Applications
- Position detection in conveyor systems
- Machine tool automation
- Packaging equipment
- Assembly line monitoring
- Metal part presence verification
- Automated material handling systems
- Manufacturing cell integration
Industrial Applications
In automotive production facilities, the sensor can be used to verify the presence of metallic fixtures before robotic operations begin. In packaging plants, it can monitor machine positions and detect moving metal components. Metalworking facilities often integrate inductive sensors into CNC equipment for position feedback and process monitoring.
Food and beverage machinery manufacturers may also use the sensor in protected installation areas where durable environmental protection ratings are required.
Advantages
- 10 mm sensing distance with shielded installation
- High environmental protection rating of IP67 and IP69K
- Wide operating temperature range
- Compact M30 housing design
- Contactless detection technology
- M12 connector simplifies replacement and maintenance
- Suitable for industrial automation environments
Sector-Specific Examples
Automotive Manufacturing
Detection of fixture positions, transfer mechanisms, and workpiece carriers.
Packaging Industry
Monitoring actuator positions and verifying machine cycle sequences.
Material Handling
Detection of pallets, metal carriers, and conveyor-mounted components.
Machine Building
Integration into production equipment requiring reliable metallic object detection.
Selection Considerations
- Verify that the target material is suitable for inductive sensing.
- Confirm that a 10 mm sensing distance meets application requirements.
- Ensure compatibility with NPN normally closed control inputs.
- Consider environmental exposure and required IP rating.
- Check available installation space for the M30 housing.
- Verify connector compatibility with existing wiring systems.
