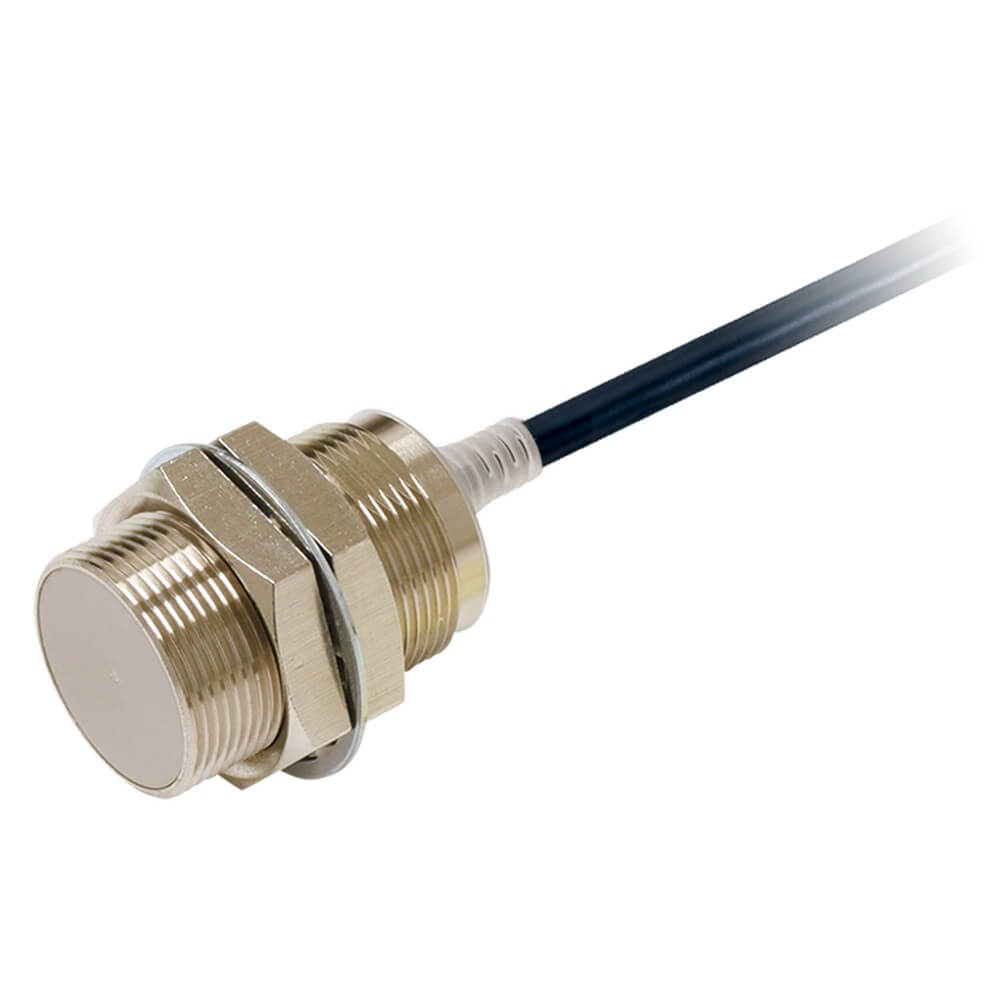

Omron E2E-X10C230 2M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Manufacturer | Omron |
| Model | E2E-X10C230 2M |
| Sensor Type | Inductive Proximity Sensor |
| Housing Size | M30 |
| Mounting Type | Shielded (Flush) |
| Sensing Distance | 10 mm |
| Output Type | NPN Normally Closed (NC) |
| Supply Voltage | 10 to 30 VDC |
| Connection Method | 2 m PVC Cable |
| Housing Material | Nickel-Plated Brass |
| Response Frequency | 400 Hz |
| Protection Rating | IP67, IP67G, IP69K |
| Operating Temperature | -40°C to +85°C |
| Overall Length | 82.3 mm |
The Omron E2E-X10C230 2M Inductive Proximity Sensor is designed for industrial automation systems that require normally closed sensing logic. It provides non-contact metal detection while supporting reliable operation in manufacturing, logistics, and machine control environments.
With a shielded M30 housing and a sensing distance of 10 mm, the sensor is suitable for installations where space constraints require flush mounting within metallic structures.
Technical Description
The Omron E2E-X10C230 2M Inductive Proximity Sensor uses electromagnetic induction to detect metallic targets entering its sensing zone. Unlike normally open variants, this model provides an NPN normally closed output, making it suitable for specific safety and monitoring strategies.
The sensor operates from a 10 to 30 VDC supply and is equipped with a 2-meter integrated cable for direct wiring into industrial control systems.
The Omron E2E-X10C230 2M Inductive Proximity Sensor is commonly selected where continuous signal monitoring is required during normal operating conditions.
Omron E2E-X10C230 2M Working Principle
The sensing face emits an electromagnetic field. When a metal target approaches, energy is absorbed through induced eddy currents.
The internal electronics recognize this change and alter the output state according to the normally closed configuration. This allows the control system to detect target presence and sensor status simultaneously.
Omron E2E-X10C230 2M Applications
- Safety monitoring circuits
- Machine interlock systems
- Conveyor automation
- Metal positioning systems
- Industrial handling equipment
- Packaging machinery
- Production line monitoring
- Automated transfer systems
Omron E2E-X10C230 2M Industrial Applications
Machine Safety Systems
Normally closed outputs are often used where signal continuity monitoring is required.
Manufacturing Automation
The sensor can monitor machine positions and component movement throughout production cycles.
Material Processing Equipment
Detection of metallic actuators and positioning mechanisms supports process control functions.
Omron E2E-X10C230 2M Industrial Transport Systems
Conveyor and transfer equipment can use the sensor for position verification and sequence control.
Advantages
- Normally closed output configuration
- Reliable metal detection
- Flush mounting capability
- Robust industrial housing
- High environmental resistance
- Wide operating temperature range
- Suitable for continuous monitoring applications
Omron E2E-X10C230 2M Frequently Asked Questions
What output logic does this model provide?
It provides an NPN normally closed output.
What is the sensing distance?
The rated sensing distance is 10 mm.
Can it be installed flush?
Yes, the shielded design supports flush mounting.
What voltage range is supported?
The sensor operates from 10 to 30 VDC.
Is it suitable for harsh environments?
Yes, it supports IP67, IP67G, and IP69K protection levels.
What cable length is supplied?
A 2-meter integrated cable is included.
What materials can be detected?
The sensor is intended for conductive metallic targets.
Which industries commonly use this model?
Manufacturing, logistics, packaging, machine building, and industrial automation sectors commonly use it.
