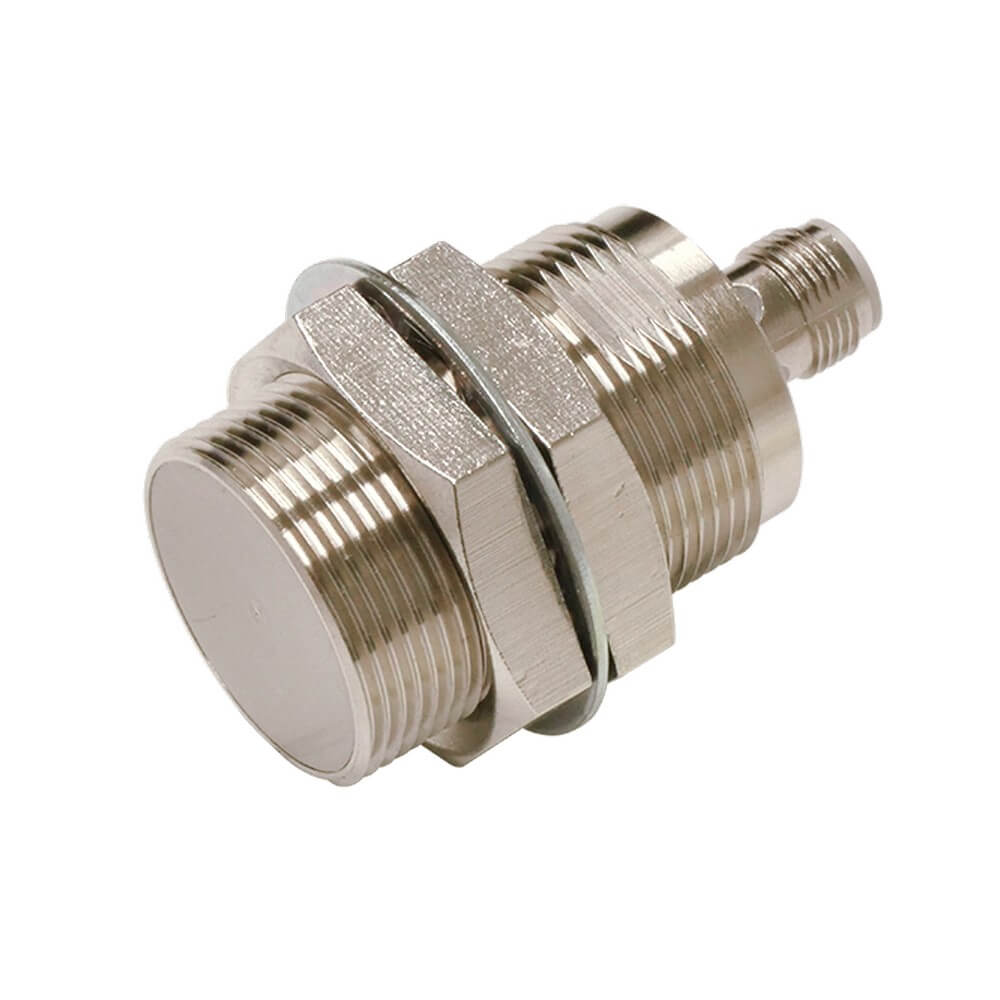

Omron E2E-X10C130-M1 Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E NEXT |
| Housing Size | M30 |
| Mounting Type | Flush Shielded |
| Sensing Distance | 10 mm |
| Output Type | NPN NO + NC |
| Communication | IO-Link COM2 |
| Supply Voltage | 10 to 30 VDC |
| Connection Method | M12 Connector |
| Protection Rating | IP67 / IP69K |
| Housing Material | Nickel-Plated Brass |
| Operating Temperature | -40°C to +85°C |
| Overall Length | 58 mm |
Omron E2E-X10C130-M1 Technical Description
The Omron E2E-X10C130-M1 Inductive Proximity Sensor combines conventional metal detection with digital communication capabilities through IO-Link technology. Designed for modern automation environments, it enables both object detection and device-level data exchange.
The sensor features a shielded M30 housing and a rated sensing distance of 10 mm. Through its M12 connector interface, it can be integrated into smart manufacturing architectures that require condition monitoring and parameter management.
Working Principle
The Omron E2E-X10C130-M1 Inductive Proximity Sensor uses electromagnetic induction to detect conductive metallic targets. Changes in the oscillation field are converted into switching signals while additional operating data can be communicated through the IO-Link interface.
Applications
- Smart manufacturing systems
- Machine condition monitoring
- Automated assembly lines
- Robotic production cells
- Industrial material transport systems
- Digitalized automation architectures
Industrial Applications
The sensor is suitable for facilities implementing predictive maintenance strategies, machine monitoring functions, and industrial communication networks.
Additional industrial sensing options are available within Omron sensor solutions.
Advantages
- IO-Link communication capability
- Diagnostic data access
- Remote parameter configuration
- Compact M30 design
- IP67 and IP69K environmental protection
- Wide operating temperature range
Sector Examples
The Omron E2E-X10C130-M1 Inductive Proximity Sensor can be used in automotive assembly systems for machine status verification and sensor diagnostics.
In automated warehousing facilities, it can support equipment monitoring and position detection functions.
In process manufacturing, it can provide switching information while enabling device-level communication with controllers.
Selection Considerations
- Verify IO-Link master compatibility.
- Review communication requirements.
- Confirm installation space for M30 mounting.
- Check environmental operating conditions.
- Ensure metallic target detection requirements match the application.
Omron E2E-X10C130-M1 Frequently Asked Questions
Does this sensor support IO-Link?
Yes. It supports IO-Link COM2 communication.
What sensing distance is available?
10 mm.
What output configuration is provided?
NPN outputs with normally open and normally closed functionality.
What connector type is used?
An M12 connector interface is provided.
Can it be integrated into Industry 4.0 systems?
Yes. IO-Link communication supports digital integration and diagnostics.
What protection rating is specified?
IP67 and IP69K.
Where is the Omron E2E-X10C130-M1 Inductive Proximity Sensor commonly used?
It is widely used in intelligent manufacturing and advanced automation systems.
What temperature range is supported?
-40°C to +85°C.
