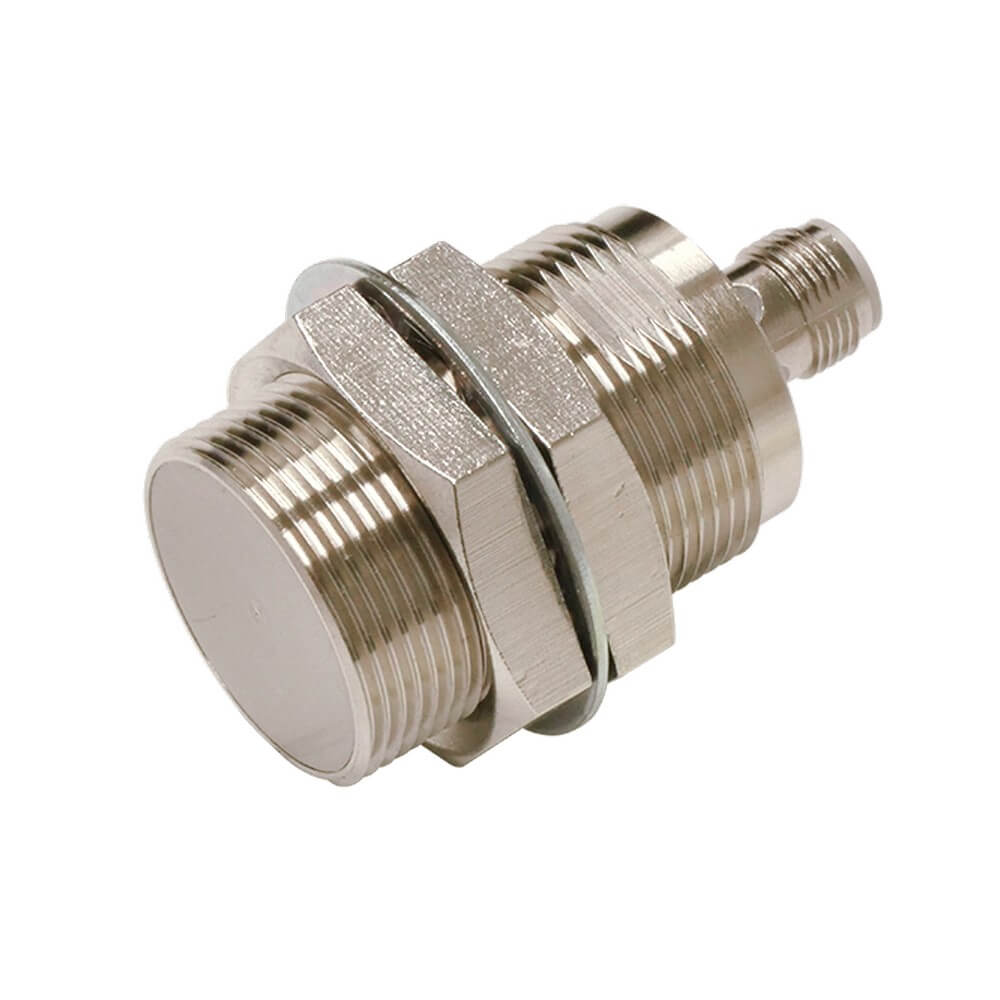

Omron E2E-X10B3D30-M1 Inductive Proximity Sensor

Technical Description

The Omron E2E-X10B3D30-M1 Inductive Proximity Sensor is designed for reliable non-contact detection of metallic targets in industrial automation systems. Built within the E2E NEXT family, this sensor combines a compact M30 cylindrical housing with IO-Link communication capabilities, enabling both standard switching functions and advanced diagnostic data exchange.

The sensor features a shielded construction with a 10 mm sensing distance and utilizes a nickel-plated brass housing to support operation in demanding industrial environments. Its PNP output configuration provides both normally open and normally closed signals, allowing greater flexibility in control system integration.

Working Principle

The Omron E2E-X10B3D30-M1 Inductive Proximity Sensor operates by generating an electromagnetic field at the sensing face. When a conductive metal object enters this field, eddy currents are induced within the target material. These currents alter the oscillation characteristics of the sensor, triggering the output stage.

Through IO-Link communication, the sensor can also provide operational data, status monitoring, and parameterization functions to compatible controllers and automation networks.

Key Features and Functional Characteristics

• 10 mm shielded sensing distance
• PNP output with NO and NC switching modes
• IO-Link COM2 communication support
• M12 connector interface
• IP67 and IP69K environmental protection
• Nickel-plated brass housing construction
• Operation from 10 to 30 VDC
• Suitable for temperatures from -40°C to +85°C

Applications

The Omron E2E-X10B3D30-M1 Inductive Proximity Sensor is used in applications where consistent metallic object detection is required without mechanical contact.

• Automated assembly systems
• Machine tool position verification
• Transfer line monitoring
• Industrial conveyor tracking
• Robotic end-effector positioning
• Packaging equipment
• Automated storage and retrieval systems

For additional industrial sensing technologies and related product families, engineers can explore Omron sensor product lines.

Industrial Applications

Automotive Manufacturing

Used for detecting metal carriers, fixtures, and moving mechanical assemblies during production and inspection processes.

Machine Building

Supports accurate position confirmation for actuators, slides, and mechanical stops in automated machinery.

Material Handling Systems

Provides object presence verification within conveyor-based transport systems and automated logistics installations.

Packaging Operations

Assists with machine sequencing by monitoring metal machine components and positioning elements.

Advantages

• Non-contact operation reduces mechanical wear
• IO-Link connectivity enables diagnostics and parameter management
• High resistance to water, dust, and washdown environments
• Compact short-body design simplifies installation
• Wide operating temperature range supports harsh environments
• Multiple output states increase integration flexibility

Industry-Specific Use Cases

In automotive body assembly lines, the Omron E2E-X10B3D30-M1 Inductive Proximity Sensor can verify fixture positioning before robotic welding operations begin.

Within warehouse automation systems, the sensor can detect metallic shuttle positions to ensure accurate storage and retrieval cycles.

For CNC machining centers, it can monitor tool changer mechanisms and moving machine components without requiring physical contact.

In packaging facilities, the sensor helps verify actuator positions and machine states throughout repetitive production cycles.

Considerations When Selecting a Sensor

• Confirm that the target material is metallic.
• Verify that a 10 mm sensing distance meets application requirements.
• Determine whether IO-Link integration is required.
• Check available installation space for M30 threaded mounting.
• Review environmental conditions including washdown requirements.
• Ensure controller compatibility with PNP outputs.

Frequently Asked Questions

What type of sensor is the Omron E2E-X10B3D30-M1 Inductive Proximity Sensor?

It is a shielded inductive proximity sensor designed for non-contact detection of metallic objects.

What is the sensing distance?

The rated sensing distance is 10 mm.

Does the sensor support IO-Link communication?

Yes. The sensor supports IO-Link COM2 communication at 38.4 kbps.

What output configuration is available?

The sensor provides PNP outputs with both normally open and normally closed operating modes.

Which protection ratings are supported?

The sensor is rated IP67 and IP69K for resistance against dust, water ingress, and washdown conditions.

What connection method is used?

The sensor utilizes a standard M12 connector.

Where is the Omron E2E-X10B3D30-M1 Inductive Proximity Sensor commonly installed?

It is commonly used in machine automation, automotive production, material handling systems, and packaging equipment.

What operating temperature range is supported?

The device is specified for operation between -40°C and +85°C.

Can the Omron E2E-X10B3D30-M1 Inductive Proximity Sensor detect non-metallic materials?

No. As an inductive sensor, it is intended for metallic target detection.
