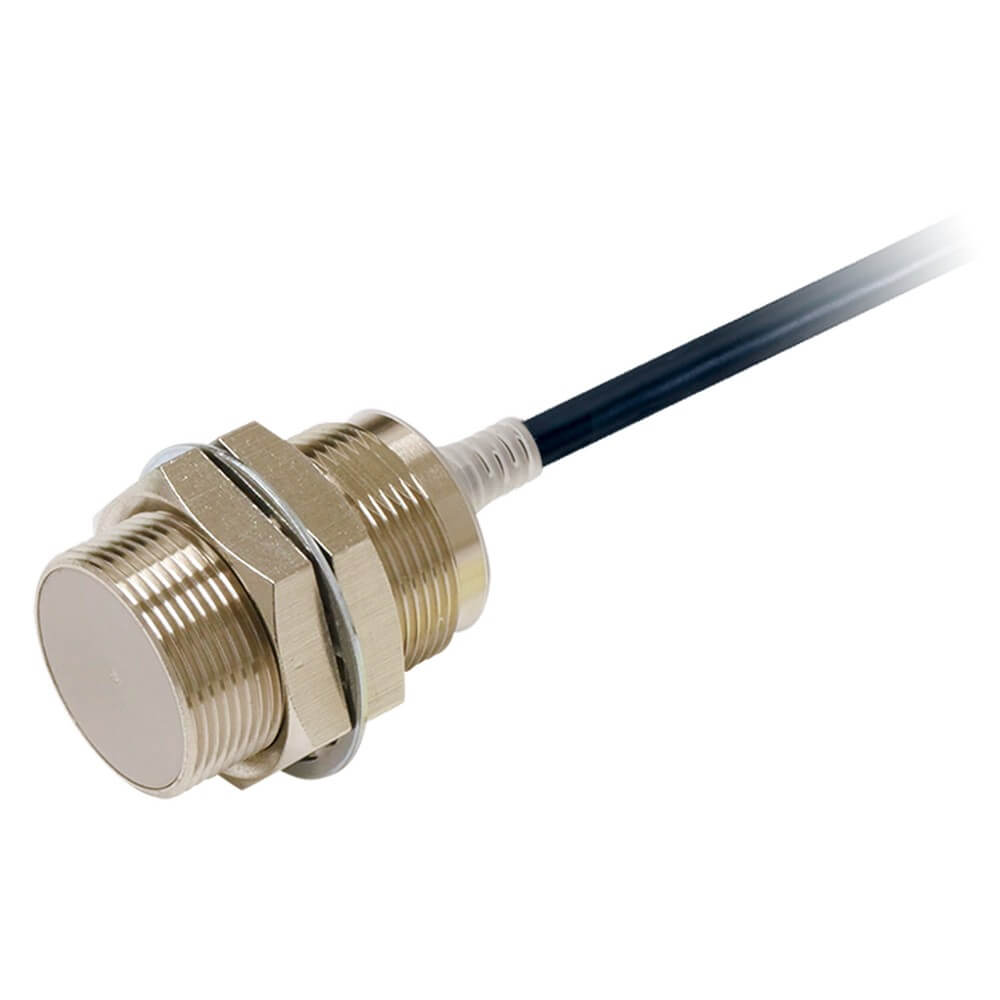

Omron E2E-X10B230 5M Inductive Proximity Sensor

Technical Description

Industrial automation systems frequently require dependable object detection solutions that can operate continuously under challenging environmental conditions. The Omron E2E-X10B230 5M Inductive Proximity Sensor is designed for non-contact detection of metallic targets while maintaining stable performance in manufacturing, material handling, and machine automation applications.

This model belongs to the Omron E2E NEXT sensor family and incorporates an M30 cylindrical housing with a flush mounting design. Its 10 mm sensing distance enables reliable metal detection while minimizing installation constraints in compact machinery.

The extended 5-meter cable length allows greater installation flexibility when sensors must be connected to remote control cabinets, distributed I/O stations, or centralized PLC systems.

Technical Characteristics

The Omron E2E-X10B230 5M Inductive Proximity Sensor operates using a DC supply voltage ranging from 10 to 30 VDC and provides a PNP normally closed output. The shielded sensing construction allows flush installation inside metal machine frames without significantly affecting sensing performance.

Its nickel-plated brass housing provides mechanical durability while protecting internal electronics from industrial contaminants. The oil-resistant PVC cable supports operation in environments where lubricants, coolants, and cleaning agents are commonly present.

Protection ratings including IP67, IP67G, and IP69K enable operation in applications involving washdown procedures, water exposure, and demanding cleaning requirements.

Working Principle

The Omron E2E-X10B230 5M Inductive Proximity Sensor uses an internal oscillator to generate a high-frequency electromagnetic field at the sensing face.

When a metallic target enters this field, eddy currents develop within the object. These currents absorb energy from the oscillator and change its operating characteristics. Internal signal processing circuitry detects this variation and switches the output state.

Since detection occurs without physical contact, the sensor avoids mechanical wear associated with conventional limit switches. This contributes to long-term operational consistency in automated systems.

Common Areas of Use

• Automated production lines
• Packaging machinery
• Machine tools
• Material transfer systems
• Conveyor automation
• Robotic manufacturing cells
• Metalworking equipment
• Industrial assembly stations

The Omron E2E-X10B230 5M Inductive Proximity Sensor is particularly useful in installations where longer cable routing is necessary and where control equipment may be located several meters away from the sensing point.

Industrial Applications

Assembly Automation

Assembly systems often require confirmation that metallic components have reached designated positions before the next manufacturing step begins. The sensor provides reliable presence detection without mechanical contact.

Machine Tool Systems

Machining centers utilize inductive sensors for position verification, fixture monitoring, and tool exchange mechanisms. The robust housing design supports operation in environments exposed to coolant and vibration.

Logistics Automation

Automated transport and conveyor systems use proximity sensors to detect carriers, positioning elements, and metal transport fixtures throughout production facilities.

Food and Beverage Equipment

Machines requiring frequent cleaning procedures can benefit from the sensor’s high ingress protection ratings, particularly in equipment where metallic machine components must be monitored.

Advantages

• Reliable non-contact metal detection
• Extended 5-meter cable for flexible installation
• Flush mounting capability
• Wide operating temperature range
• High environmental protection ratings
• Oil-resistant cable construction
• Suitable for industrial automation systems
• Reduced maintenance compared to mechanical switches

The Omron E2E-X10B230 5M Inductive Proximity Sensor supports consistent detection performance while helping engineers simplify machine design and maintenance planning.

For additional sensing technologies and compatible automation products, engineers can explore Omron sensor series used across industrial applications.

Sector-Specific Usage Examples

• Monitoring pallet positions in logistics centers
• Detecting metallic fixtures in automotive assembly lines
• Verifying actuator positions in packaging equipment
• Monitoring machine guard mechanisms
• Position sensing on transfer systems
• Detection of metal carriers in robotic production cells

Important Selection Considerations

When selecting an inductive sensor, users should evaluate the required sensing distance, available mounting space, target material characteristics, output configuration, cable length requirements, and environmental conditions.

The Omron E2E-X10B230 5M Inductive Proximity Sensor is suitable for applications requiring a shielded M30 sensor with a PNP normally closed output and an extended cable connection.

Proper installation distances and cable routing practices should always follow manufacturer recommendations to ensure optimal performance.

Frequently Asked Questions

What is the sensing distance of this sensor?

The rated sensing distance is 10 mm.

What type of targets can be detected?

The sensor is designed for detecting metallic objects using inductive sensing technology.

What output configuration is provided?

It features a PNP normally closed output.

Can the sensor be mounted flush with metal surfaces?

Yes. The shielded construction supports flush mounting installations.

Why does this model have a 5-meter cable?

The longer cable simplifies installation when control equipment is located farther from the sensing point.

Is it suitable for washdown environments?

Yes. IP67, IP67G, and IP69K ratings support demanding cleaning conditions.

What is the operating voltage range?

The sensor operates between 10 and 30 VDC.

What temperature range can it withstand?

It is designed for operation from -40°C to +85°C.

Where is the Omron E2E-X10B230 5M Inductive Proximity Sensor commonly installed?

It is widely used in assembly systems, machine tools, conveyor systems, packaging machinery, and logistics automation equipment.

Does the sensor require regular maintenance?

Only routine inspection and cleaning are typically required because there are no mechanical contacts subject to wear.
