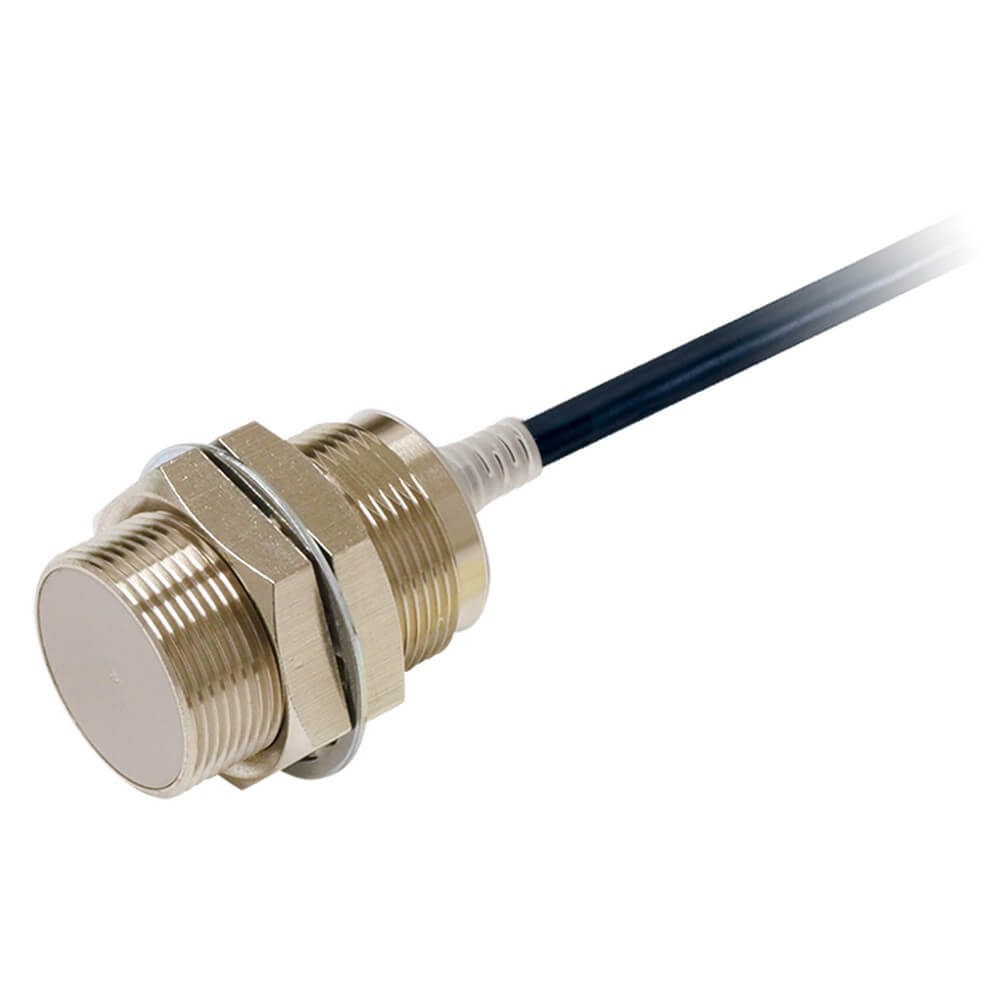

Omron E2E-X10B1T30 5M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Series | Omron E2E |
| Housing Size | M30 |
| Mounting Type | Shielded (Flush) |
| Sensing Distance | 10 mm |
| Output Type | PNP Normally Open |
| Supply Voltage | 10 to 30 VDC |
| Connection Method | Pre-wired Cable |
| Cable Length | 5 m |
| Protection Rating | IP67 |
| Housing Material | Nickel-Plated Brass |
| Operating Temperature | -25°C to +70°C |
| Response Frequency | 500 Hz |
The Omron E2E-X10B1T30 5M Inductive Proximity Sensor is developed for industrial systems that require medium-distance cable routing while maintaining reliable metal target detection. The integrated 5-meter cable simplifies installation across conveyors, packaging equipment, and material handling systems.
Technical Description
The Omron E2E-X10B1T30 5M Inductive Proximity Sensor uses inductive sensing technology to detect conductive metallic objects without physical contact. The M30 threaded housing supports installation in industrial equipment exposed to vibration, dust, and production contaminants.
Working Principle
The sensor continuously generates an electromagnetic field. When a metallic target enters the sensing range, induced eddy currents alter the field characteristics. Internal circuitry evaluates these changes and activates the output signal.
Applications
- Packaging lines
- Conveyor automation
- Material transport systems
- Sorting equipment
- Pallet handling systems
- Warehouse automation
- Industrial production lines
- Transfer stations
Industrial Applications
Distribution centers use inductive sensors to verify transport carrier positions. Packaging facilities employ them for machine synchronization and component detection. Conveyor systems integrate sensors to monitor stopper positions and mechanical movement.
Advantages
- Extended 5-meter cable length
- Reliable non-contact detection
- Flush mounting capability
- IP67 protection rating
- Industrial-grade housing
- Reduced maintenance requirements
Industry-Specific Examples
In logistics facilities, the sensor may detect metal pallet carriers. In packaging systems, it can monitor guide mechanisms and machine positions. Automated sorting equipment can utilize the sensor for movement verification and sequencing control.
Selection Considerations
- Evaluate installation distance requirements.
- Confirm compatibility with controller inputs.
- Verify sensing range requirements.
- Review environmental conditions.
- Consider available mounting space.
More automation products can be explored through Omron sensor series.
Omron E2E-X10B1T30 5M Frequently Asked Questions
1. What cable length is provided?
The sensor includes a 5-meter cable.
2. What is the sensing distance?
10 mm.
3. Is it suitable for flush mounting?
Yes.
4. What output type does it use?
PNP normally open.
5. What protection rating is available?
IP67.
6. Can it detect non-metallic objects?
It is designed primarily for metallic targets.
7. Which applications commonly use it?
Conveyors, packaging systems, and material handling equipment.
8. Where is the Omron E2E-X10B1T30 5M Inductive Proximity Sensor installed?
It is commonly installed in medium-sized industrial automation systems requiring extended cable routing.
