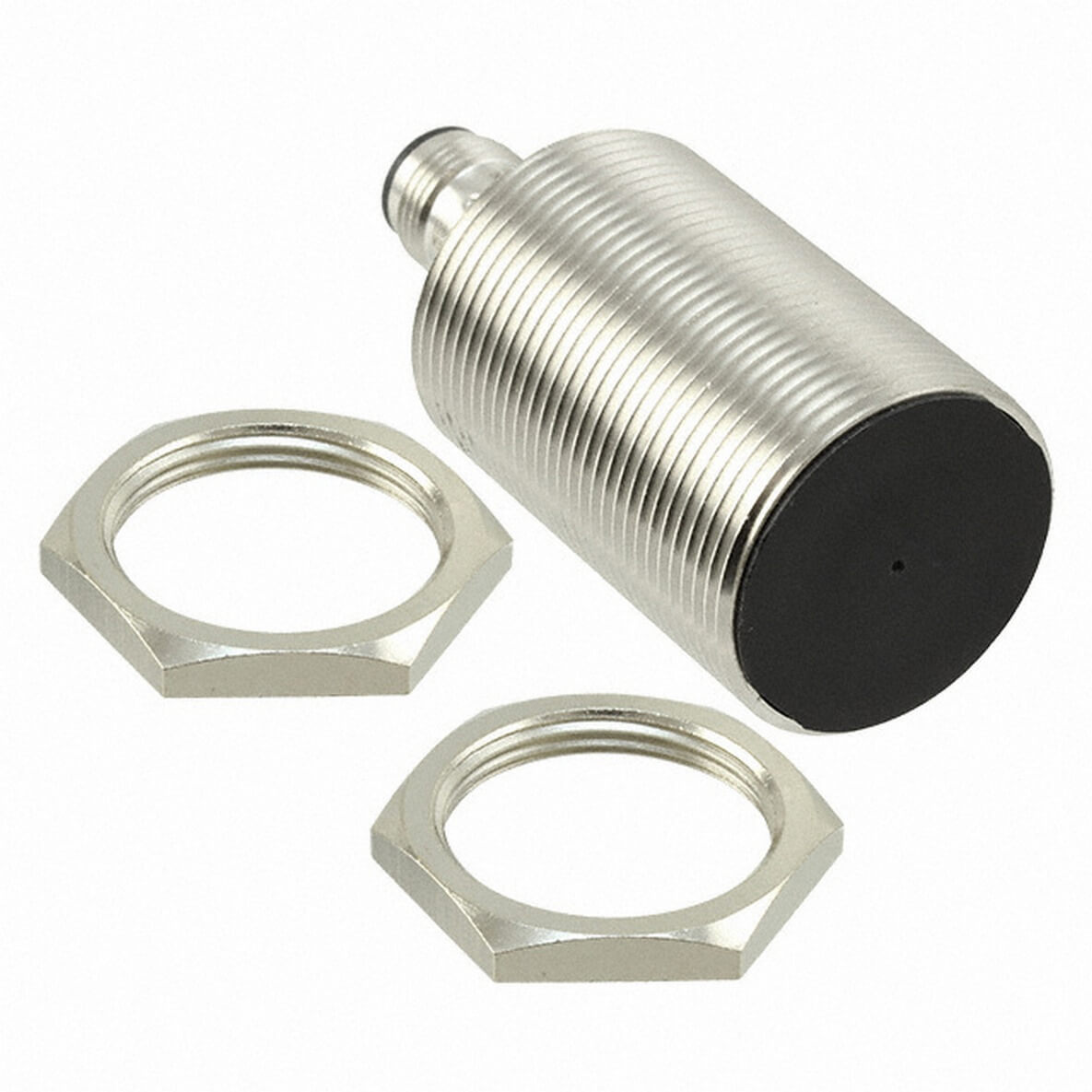

Omron E2B-M30KS10-M1-B1 Inductive Proximity Sensor

The Omron E2B-M30KS10-M1-B1 Inductive Proximity Sensor is designed for non-contact detection of metallic targets in industrial automation systems. Built with a nickel-plated brass housing and a shielded sensing structure, this sensor is intended for installations where reliable object detection is required within compact machine layouts. The M30 cylindrical body allows straightforward integration into conveyors, assembly stations, packaging equipment, and automated material handling systems.

As part of the E2B sensor family, the Omron E2B-M30KS10-M1-B1 Inductive Proximity Sensor combines standard industrial specifications with a durable mechanical design. Its M12 connector interface simplifies installation and maintenance while supporting quick replacement procedures during equipment servicing.

Technical Description

This sensor uses an electromagnetic field generated by an internal oscillator to detect metallic objects. When a conductive target enters the sensing zone, eddy currents are induced in the target material. These currents affect the oscillation amplitude, allowing the sensor electronics to determine the presence of the object and switch the output accordingly.

The device features a 10 mm sensing distance and a PNP normally open output configuration. Its shielded design focuses the sensing field directly in front of the sensor face, reducing the influence of surrounding metal structures and enabling flush mounting.

Working Principle

The operating principle of the Omron E2B-M30KS10-M1-B1 Inductive Proximity Sensor is based on electromagnetic induction. A high-frequency oscillation circuit creates a magnetic field at the sensing surface. When a metal object approaches this field, energy is absorbed through eddy current generation.

The sensor continuously monitors changes in the oscillation level. Once a predefined threshold is reached, the internal switching circuit activates the PNP output signal. The process occurs without mechanical contact, minimizing wear and reducing maintenance requirements.

Applications and Installation Areas

The Omron E2B-M30KS10-M1-B1 Inductive Proximity Sensor is suitable for numerous automation environments requiring metal object detection.

• Position detection on conveyor systems
• Machine tool automation
• Automated assembly equipment
• Packaging and labeling machinery
• Transfer systems and indexing tables
• Robotic workstations
• Metal component counting applications
• Production line monitoring

Its shielded sensing structure makes it suitable for installations where surrounding metal parts are located close to the sensing surface.

Industrial Applications

Automotive Manufacturing

Used for detecting metal fixtures, body components, and positioning elements throughout assembly processes.

Packaging Industry

Provides presence detection for metal carriers and machine components within packaging and sorting equipment.

Material Handling Systems

Supports accurate object positioning on conveyors and automated transport lines.

Machine Building

Integrated into industrial machinery for end-position monitoring, part detection, and sequence control functions.

Advantages

• Non-contact sensing technology
• Compact M30 cylindrical housing
• Flush mounting capability
• IP67 environmental protection
• Nickel-plated brass construction
• M12 connector for simplified maintenance
• Wide operating temperature range
• Suitable for standard industrial environments

The robust housing design helps protect internal electronics from dust, moisture, and mechanical stress commonly encountered in factory automation systems.

Industry-Specific Usage Examples

• Detecting pallet stops in logistics facilities
• Monitoring metal workpiece movement in machining centers
• Position verification in robotic welding cells
• Detecting carrier plates in assembly lines
• Monitoring actuator positions in automated machinery
• Counting metal containers in production systems

Engineers frequently select the Omron E2B-M30KS10-M1-B1 Inductive Proximity Sensor when a flush-mounted sensor with a 10 mm sensing distance is required.

Considerations When Selecting a Sensor

• Required sensing distance
• Target material characteristics
• Available installation space
• Electrical interface requirements
• Environmental protection needs
• Mounting configuration
• Connector or cable preferences
• Machine operating temperature range

For additional product families and related sensing technologies, explore Omron sensor product ranges.

Frequently Asked Questions

1. What type of sensor is the E2B-M30KS10-M1-B1?

It is an inductive proximity sensor designed for non-contact detection of metallic objects.

2. What is the sensing distance?

The nominal sensing distance is 10 mm.

3. Does the sensor use a PNP or NPN output?

This model features a PNP output configuration.

4. What is the operating mode?

The sensor operates as a Normally Open (NO) device.

5. Can it be mounted flush with metal surfaces?

Yes. The shielded construction supports flush mounting installations.

6. What environmental protection rating does it provide?

The sensor is rated IP67 for protection against dust and temporary water exposure.

7. What connection method is used?

The device utilizes an M12 connector connection.

8. What temperature range is supported?

The specified operating temperature range is -25°C to +70°C.

9. Which industries commonly use this sensor?

Automotive, packaging, logistics, machine building, and general factory automation sectors commonly utilize this model.

10. What materials can be detected?

The sensor is designed primarily for detecting metallic targets through inductive sensing technology.
