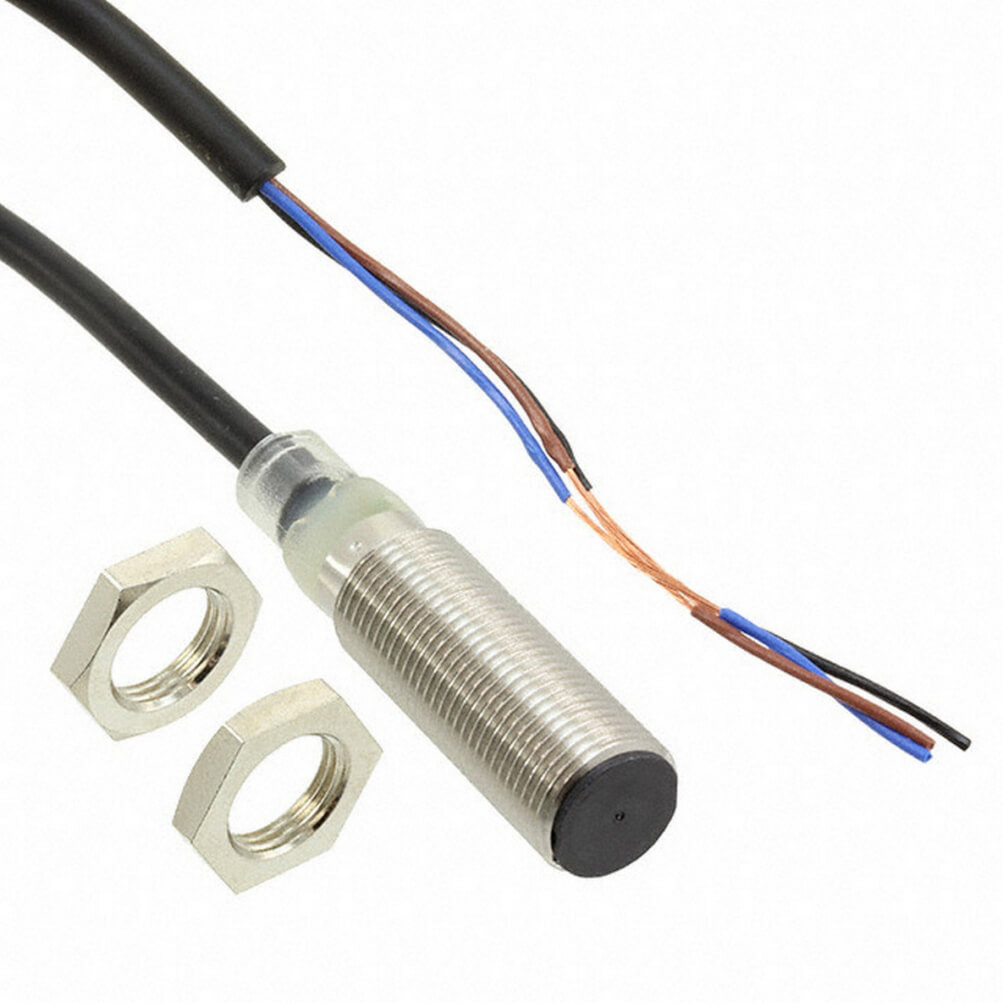

Omron E2B-M12KS04-WP-B2 5M Inductive Proximity Sensor
| Feature | Value |
|---|---|
| Product Type | Inductive Proximity Sensor |
| Series | Omron E2B |
| Housing Diameter | M12 |
| Mounting Style | Shielded (Flush) |
| Sensing Distance | 4 mm |
| Output Type | PNP |
| Output Function | Normally Closed (NC) |
| Supply Voltage | 10 to 30 VDC |
| Cable Length | 5 m |
| Connection Method | PVC Cable |
| Protection Rating | IP67 |
| Housing Material | Nickel-Plated Brass |
| Operating Temperature | -25°C to 70°C |
Omron E2B-M12KS04-WP-B2 5M Technical Description
The Omron E2B-M12KS04-WP-B2 5M Inductive Proximity Sensor is designed for industrial metal detection applications where reliable object sensing and extended cable reach are required. Its compact M12 housing and shielded sensing structure allow installation in equipment with limited space while maintaining stable switching characteristics.
This model incorporates a PNP normally closed output and a factory-installed 5-meter cable, making it suitable for machine layouts where control panels are located at significant distances from field devices.
The Omron E2B-M12KS04-WP-B2 5M Inductive Proximity Sensor is frequently used in production systems that require continuous monitoring of metallic machine components, carriers, fixtures, and positioning mechanisms.
Working Principle
The sensor creates an electromagnetic sensing field around its active face. When a metal object enters this field, induced eddy currents affect the internal oscillator circuit. The sensor electronics detect this change and modify the output state.
This non-contact detection method provides long operational life and consistent performance in repetitive industrial processes.
Application Areas
- Automated packaging systems
- Production line monitoring
- Machine position verification
- Metal fixture detection
- Conveyor transport systems
- Automated assembly equipment
- Material handling systems
- Industrial transfer stations
Advantages
- 4 mm sensing distance
- PNP normally closed output
- 5-meter cable connection
- Compact M12 housing
- Flush mounting capability
- IP67 environmental protection
- Reliable metal detection
- Suitable for continuous-duty operation
Industrial Usage Examples
Automated assembly lines use inductive sensors to verify fixture alignment before process execution. Packaging machinery integrates proximity sensors to monitor moving components and synchronization mechanisms.
The Omron E2B-M12KS04-WP-B2 5M Inductive Proximity Sensor can also be installed in conveyor transfer systems to confirm the location of metallic carriers and stopping mechanisms.
Omron E2B-M12KS04-WP-B2 5M For broader sensing solutions and related technologies, visit Omron sensor series.
Frequently Asked Questions
1. What is the sensing distance?
The nominal sensing distance is 4 mm.
2. What output configuration is used?
The sensor uses a PNP normally closed output.
3. What cable length is supplied?
The sensor includes a 5-meter integrated cable.
4. Can it detect non-metallic objects?
No. The sensor is designed for conductive metallic targets.
5. Is it suitable for washdown environments?
Its IP67 protection rating supports operation in demanding industrial environments.
6. What mounting style is used?
The sensor uses a shielded flush-mount design.
7. Which voltage range is supported?
The operating voltage range is 10 to 30 VDC.
8. What industries typically use this model?
Manufacturing, logistics, packaging, machine building, and automation industries commonly utilize this sensor.
