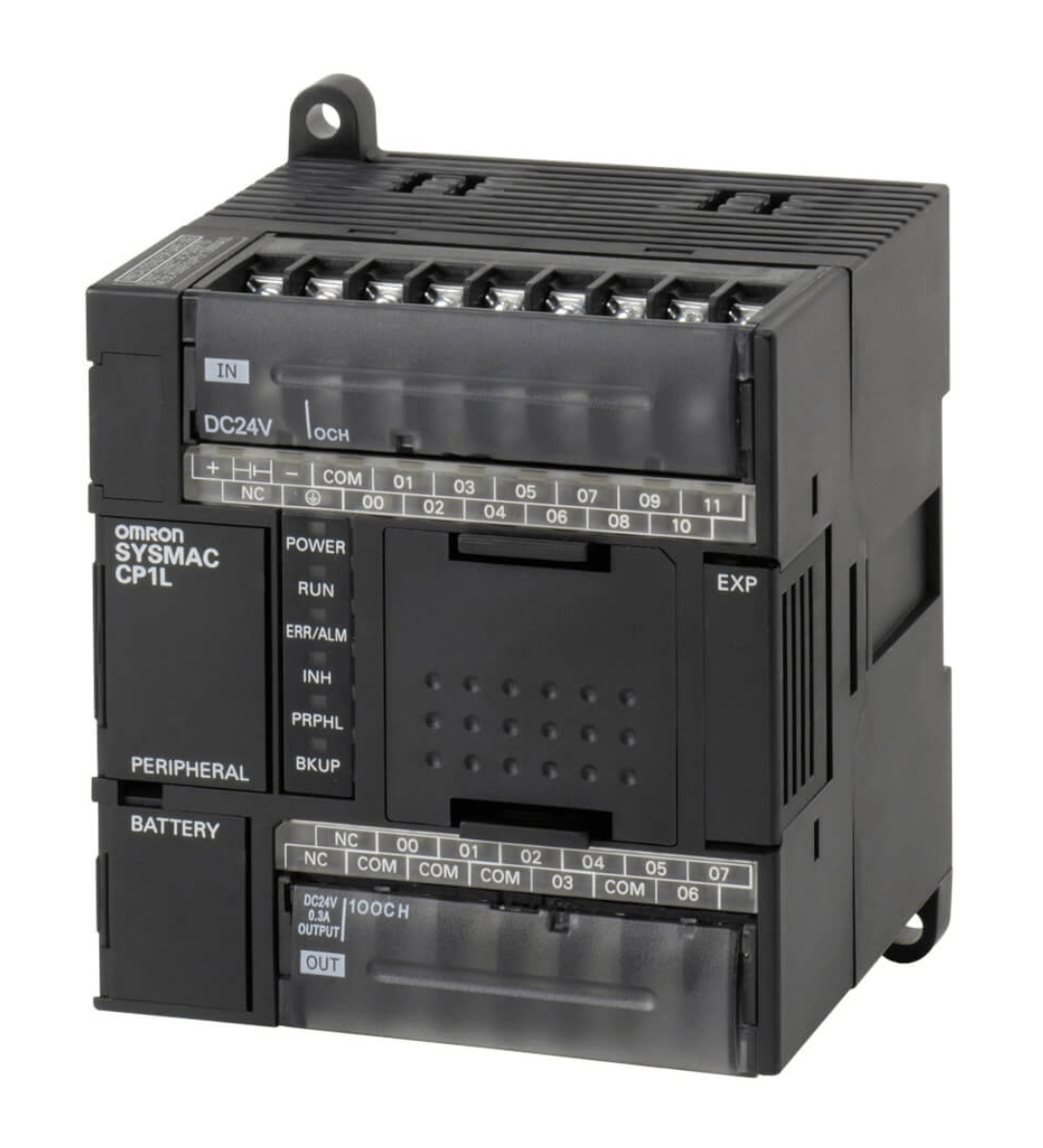

Omron CP1L-L20DT1-D Controller



Omron CP1L-L20DT1-D Controller – Compact, High-Speed Solution for Industrial Automation

The CP1L-L20DT1-D controller is a powerful yet compact PLC (Programmable Logic Controller) from Omron, engineered to meet modern industrial automation demands. Designed for efficiency and reliability, this controller delivers excellent performance in a wide range of applications. Whether you’re managing a small machine or an advanced system, this unit offers a future-proof automation solution.

Omron CP1L-L20DT1-D Controller Specifications

  • Inputs: 12 digital inputs (24V DC)
  • Outputs: 8 digital transistor outputs (PNP)
  • Power Supply: 24V DC
  • Program Capacity: 5K steps
  • Data Memory: 10K words
  • High-Speed Counter: 100 kHz x 4 channels
  • Pulse Output: 100 kHz x 2 channels
  • Communication: USB programming port

Its robust configuration ensures the CP1L-L20DT1-D controller can handle complex automation with ease and precision.

Industrial Omron CP1L-L20DT1-D Controller Applications

This controller is widely used in industrial environments, including:

  • Packaging machinery – Fast, reliable control of packing lines.
  • Conveyor systems – Ideal for motor control and object tracking.
  • Automated testing stations – High-speed input/output performance enhances accuracy.
  • Assembly lines – Efficient coordination of equipment and sensors.

The Omron CP1L-L20DT1-D Controller for automation solutions offers speed and flexibility without requiring bulky PLC racks.

Connectivity & Integration

CP1L-L20DT1-D connectivity options include a USB port for programming and optional expansion modules for RS-232C and RS-485. Integration into existing PLC system architectures is seamless, and compatibility with Omron CX-One software enables efficient configuration and diagnostics.

Reliability and Performance

Engineered with durability in mind, the CP1L-L20DT1-D industrial controller operates reliably under harsh conditions. It’s known for:

  • Stable operations under high electromagnetic noise
  • Fast response time for real-time processing
  • Long lifespan even in continuous use environments

Its operational stability and high-frequency switching make it the go-to unit for OEMs and plant engineers alike.

Programming and Setup

With intuitive programming via CX-Programmer, CP1L-L20DT1-D programming and configuration is straightforward. Developers can use ladder logic, structured text, and function blocks to craft logic that meets demanding workflows.

Remote Monitoring and Support

CP1L-L20DT1-D remote monitoring compatibility allows users to access system status, logs, and diagnostics remotely using Ethernet or serial interfaces. Maintenance teams benefit from reduced downtime thanks to onboard troubleshooting guides and status indicators.
