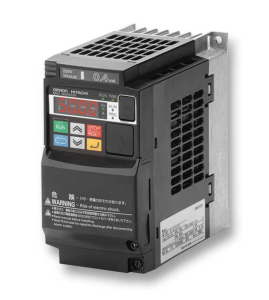

Omron 3G3MX2-AB022-P-E Inverter: Compact Power for Industrial Automation
The Omron 3G3MX2-AB022-P-E inverter from Omron is a high-efficiency variable frequency drive (VFD) designed for precise motor control and reliable performance in industrial environments. Engineered for single-phase 200 VAC systems, this compact AC drive excels in factory automation, conveyor systems, and material handling. With advanced sensorless vector control, robust torque performance, and seamless system integration, the 3G3MX2-AB022-P-E is a durable solution for optimizing industrial processes. Discover its technical specifications, installation requirements, and applications to enhance your operations.
Technical Specifications of Omron 3G3MX2-AB022-P-E Inverter
The 3G3MX2-AB022-P-E is tailored for compact, high-performance applications, offering reliable power without a heatsink. Below are its key technical parameters:
| Parameter | Specification |
|---|---|
| Power Rating | 2.2 kW (HD) / 3.0 kW (ND) |
| Input Voltage | Single-phase 200-240 VAC |
| Output Current | 11.0 A (HD) / 12.0 A (ND) |
| Frequency Range | 0.1 to 580 Hz |
| Control Method | Sensorless Vector Control, V/f Control |
| Protection Rating | IP20 |
| Safety Features | STO (ISO 13849-1, Cat 3/PLd) |
Key Features and Industrial Applications
Energy-Saving Design and Sensorless Vector Control
The Omron 3G3MX2-AB022-P-E inverter is an energy-saving solution, optimizing power consumption for applications like conveyor systems and presses. Its sensorless vector control delivers precise motor control, achieving 200% starting torque at 0.5 Hz. This feature ensures smooth operation for cyclic tasks, supporting both induction and permanent magnet motors in industries such as manufacturing and food processing.
Robust Torque Control and Positioning
With advanced torque control and positioning capabilities, the 3G3MX2-AB022-P-E is ideal for applications requiring high precision, such as hoists and material handling. Its compact design, without a heatsink, simplifies installation in space-constrained environments while maintaining reliable performance under heavy loads.
Industrial Network Connectivity and System Integration
The inverter supports Modbus-RTU communication as standard, with optional fieldbus protocols like EtherCAT, DeviceNet, and PROFIBUS for enhanced industrial network connectivity. Its programming interface, compatible with Omron’s CX-Drive software, allows easy configuration and monitoring, ensuring seamless integration into automated systems.
Installation and Maintenance
Installing the 3G3MX2-AB022-P-E requires a well-ventilated environment to ensure optimal performance, given its heatsink-free design. The IP20-rated enclosure protects against dust, while regular maintenance—such as checking terminal connections and cooling fans—ensures long-term reliability. The technical datasheet and programming guide, available through Omron’s official resources, provide detailed installation requirements and troubleshooting guidance.
Safety and Durability
The 3G3MX2-AB022-P-E meets rigorous safety standards, including ISO 13849-1 (Cat 3/PLd) for Safe Torque Off (STO) and CE, UL, and cUL certifications. Built-in protection features, such as overcurrent, overvoltage, and thermal overload safeguards, enhance its durability in demanding industrial settings.
Why Choose the Omron 3G3MX2-AB022-P-E Inverter?
The 3G3MX2-AB022-P-E inverter is a reliable drive system for factory automation, offering a compact, energy-saving design and advanced motor control. Its robust torque performance, flexible network connectivity, and durable construction make it a top choice for conveyor systems, hoists, and other industrial applications. With comprehensive technical documentation and a user-friendly programming interface, this inverter ensures easy setup and maintenance. Invest in the 3G3MX2-AB022-P-E to boost efficiency and reliability in your industrial operations.
