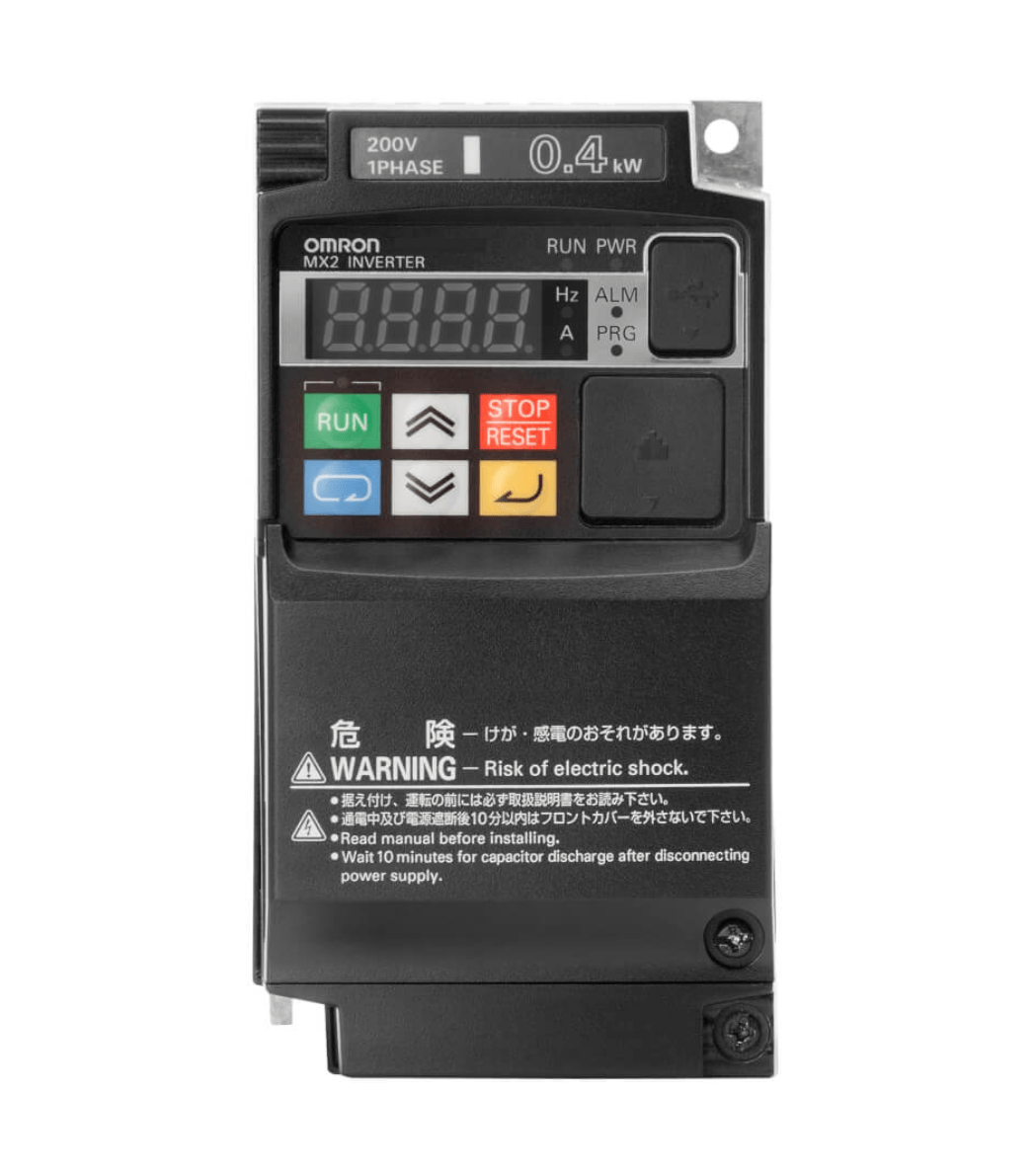

Omron 3G3MX2-AB007-P-E Inverter – Compact Frequency Inverter
The Omron 3G3MX2-AB007-P-E inverter from Omron is a high-efficiency, compact frequency inverter designed for precise motor control in industrial automation applications.
Omron 3G3MX2-AB007-P-E Inverter – Technical Specifications
| Parameter | Specification |
|---|---|
| Power Rating | 0.75 kW (1 HP) |
| Input Voltage | 3-phase 200-240V AC ±10% |
| Output Current | 3.7 A |
| Frequency Range | 0.5 to 400 Hz |
| Control Method | Sensorless vector control/V/f control |
| Communication | Modbus RTU (RS-485) |
| Protection Class | IP20 |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
Industrial Applications
Pump Control Systems
Energy-efficient operation with PID control for fluid handling applications.
Conveyor Systems
Precise speed regulation and smooth acceleration/deceleration for material handling.
Fan Control
Optimized airflow control with energy-saving algorithms.
General Machinery
Reliable motor control for various industrial machines.
Key Features
Advanced Motor Control
Sensorless vector control provides high starting torque (150% at 1 Hz) without requiring feedback devices.
Energy Saving Operation
Automatic energy optimization reduces power consumption by up to 30% in appropriate applications.
Robust Design
Industrial-grade components ensure reliable operation in demanding environments with vibration and electrical noise.
Easy Integration
Standard Modbus communication protocol enables seamless connection to PLCs and control systems.
Installation and Setup
The compact design (W90 x H130 x D129.5 mm) allows for space-saving installation in control panels. Clear terminal markings and intuitive parameter structure simplify setup process.
Wiring Requirements
- Power supply: 3-phase 200-240V AC
- Motor connection: 3-wire output
- Control signals: 2 digital inputs, 1 analog input
- Communication: RS-485 terminal block
Why Choose Omron 3G3MX2-AB007-P-E Inverter?
- Compact size saves valuable panel space
- Energy-efficient operation reduces electricity costs
- Precise motor control improves process quality
- Reliable performance in industrial environments
- Easy setup and maintenance
- Comprehensive protection features
