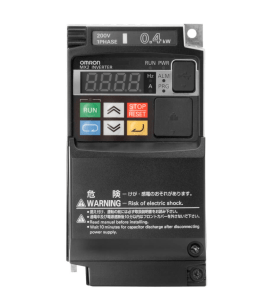

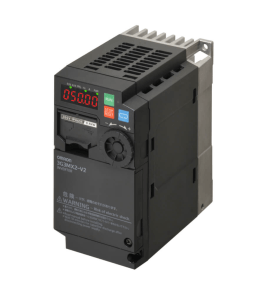

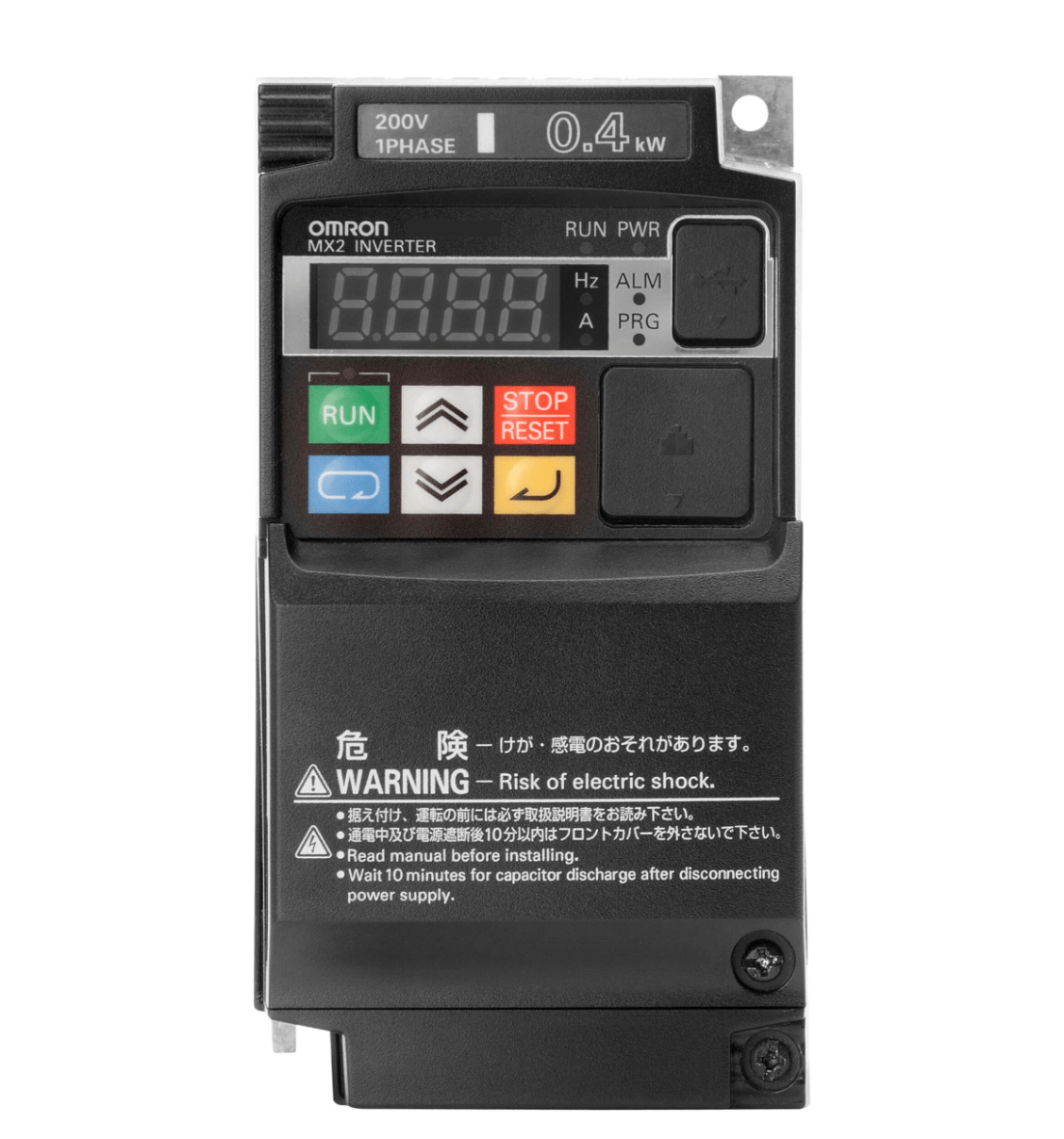

Omron 3G3MX2-AB004-E Inverter : The Ultimate Compact Industrial Inverter for High-Performance Applications

The Omron 3G3MX2-AB004-E inverter represents cutting-edge technology in industrial motor control systems, delivering exceptional performance for factory automation and manufacturing processes. This high-efficiency AC drive combines compact design with robust functionality, making it the ideal choice for demanding industrial applications requiring precise motor control and energy optimization.

Omron 3G3MX2-AB004-E Inverter – Advanced Technical Specifications

The Omron 3G3MX2-AB004-E inverter technical specifications demonstrate superior engineering designed for industrial excellence. This reliable drive system incorporates state-of-the-art technology to deliver consistent performance across various operating conditions.

Specification	Details
Power Rating	0.4 kW (0.5 HP)
Input Voltage	Single Phase 200-240V AC
Output Voltage	Three Phase 0-240V AC
Frequency Range	0.1 to 400 Hz
Control Method	Sensorless Vector Control / V/f Control
Communication	Modbus RTU, RS-485
Operating Temperature	-10°C to +50°C
Protection Rating	IP20 (Standard Enclosure)
Dimensions	68 x 130 x 146 mm (W x H x D)

Industrial Applications and System Integration

The versatile Omron 3G3MX2-AB004-E inverter industrial applications span across multiple sectors, from manufacturing to material handling. This durable industrial inverter excels in conveyor systems, packaging machinery, textile equipment, and automated production lines where precise speed and torque control are essential.

Factory Automation Excellence

In modern 3G3MX2-AB004-E factory automation environments, this drive system provides seamless integration with existing control networks. The advanced industrial network connectivity enables real-time monitoring and control, supporting Industry 4.0 initiatives and smart manufacturing processes.

Conveyor Systems and Material Handling

For 3G3MX2-AB004-E conveyor systems, this inverter delivers smooth acceleration and deceleration profiles, reducing mechanical stress while maintaining optimal throughput. The precise motor control capabilities ensure consistent material flow and minimize product damage during transport operations.

Advanced Control Features

Sensorless Vector Control Technology

The innovative 3G3MX2-AB004-E sensorless vector control technology eliminates the need for encoder feedback while maintaining exceptional torque control accuracy. This feature reduces installation complexity and maintenance requirements while delivering superior performance across the entire speed range.

PID Control and Process Optimization

The integrated 3G3MX2-AB004-E PID control functionality enables precise process control for applications requiring constant pressure, flow, or temperature regulation. This built-in capability eliminates the need for external controllers, reducing system complexity and costs.

Communication and Connectivity

The 3G3MX2-AB004-E Modbus communication protocol ensures seamless integration with supervisory control systems and HMI interfaces. The RS-485 interface supports network topologies up to 32 devices, enabling comprehensive system monitoring and control capabilities.

Energy Efficiency and Environmental Benefits

As an energy-saving Omron 3G3MX2-AB004-E inverter, this drive system significantly reduces power consumption through optimized motor control algorithms and automatic energy-saving modes. The high-efficiency design contributes to lower operating costs and reduced carbon footprint in industrial facilities.

Installation and Programming

Simple Installation Requirements

The 3G3MX2-AB004-E installation requirements are straightforward, with compact dimensions allowing flexible mounting options. The drive requires minimal panel space while providing comprehensive protection features including overcurrent, overvoltage, and thermal protection.

User-Friendly Programming

The comprehensive 3G3MX2-AB004-E programming guide ensures rapid commissioning and optimization. The intuitive parameter structure and built-in auto-tuning functions simplify setup procedures, reducing installation time and commissioning costs.

Reliability and Support

Built for industrial environments, this reliable 3G3MX2-AB004-E drive system incorporates robust protection circuits and high-quality components ensuring long-term operation reliability. The comprehensive diagnostic capabilities and detailed troubleshooting guide minimize downtime and maintenance costs.
