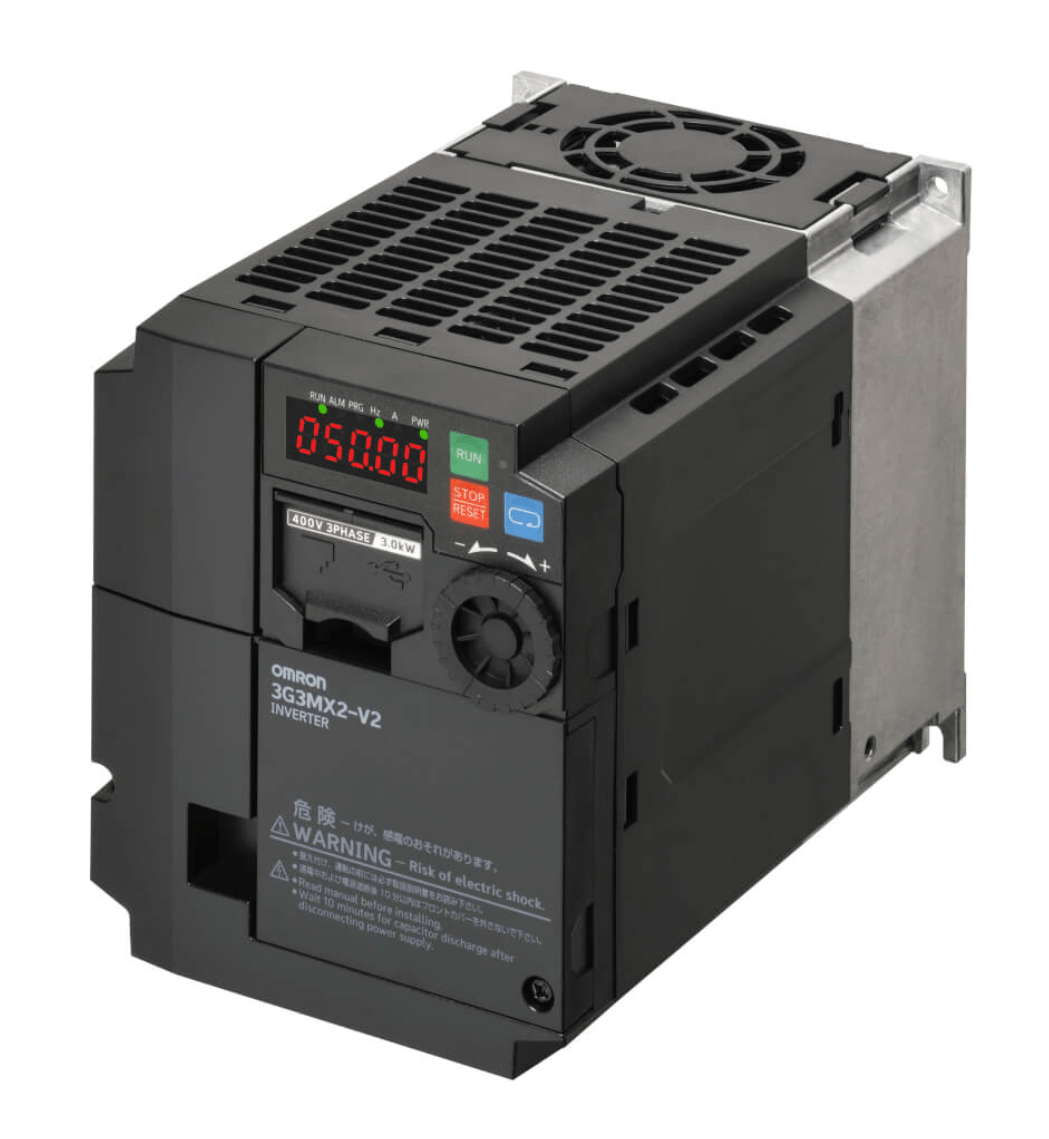

Omron 3G3MX2-A4022-HF Inverter: Superior Performance for Industrial Automation
In today’s industrial facilities, reliable motor control systems are essential for enhancing productivity and operational efficiency. The Omron 3G3MX2-A4022-HF inverter represents a cutting-edge solution designed to meet the demanding requirements of modern factory automation. This compact yet powerful AC drive combines advanced technology with robust design to deliver exceptional performance across diverse industrial applications. In this article, we explore the technical specifications, applications, and key benefits of the Omron 3G3MX2-A4022-HF inverter.
Technical Specifications of the Omron 3G3MX2-A4022-HF Inverter
The Omron 3G3MX2-A4022-HF is an advanced AC drive that provides superior performance and reliability for industrial applications. Despite its compact dimensions, it offers impressive power capacity and control capabilities that make it ideal for demanding environments.
| Technical Feature | Specification |
|---|---|
| Power Capacity | 2.2 kW (3.0 HP) |
| Input Voltage | 3-Phase, 380-480V AC |
| Output Frequency Range | 0.1 – 1000 Hz (High-Frequency model) |
| Control Methods | V/f Control, Sensorless Vector Control |
| Overload Capacity | 150% for 60 seconds, 200% for 3 seconds |
| Built-in Braking Unit | Yes |
| Protection Rating | IP20 |
| Digital I/O | 5 programmable inputs, 2 programmable outputs |
| Analog I/O | 2 analog inputs (V/I), 1 analog output |
| Communication Interfaces | Modbus-RTU (RS-485), Optional DeviceNet, EtherCAT |
Advanced High-Frequency Control
The 3G3MX2-A4022-HF model is specifically designed for high-frequency applications, with the capability to operate at up to 1000 Hz. This makes it particularly suitable for specialized machinery requiring high-speed motor operation, such as spindles, grinders, and centrifuges. The high-frequency control ensures precise operation even at extreme speeds while maintaining stability and efficiency.
Sensorless Vector Control Technology
The 3G3MX2-A4022-HF inverter features sophisticated sensorless vector control technology that delivers high torque and precise speed control without requiring a speed sensor. This technology utilizes motor modeling and current vector control to generate high torque even at low speeds. As a result, it provides exceptional performance in applications such as crane systems, conveyors, and precision positioning equipment.
Industrial Applications of the Omron 3G3MX2-A4022-HF Inverter
The Omron 3G3MX2-A4022-HF inverter is versatile enough to serve a wide range of industrial sectors:
Factory Automation Systems
In modern manufacturing facilities, the 3G3MX2-A4022-HF provides seamless motor control for critical applications such as conveyor systems, feed lines, and packaging equipment. Its quick response time and high starting torque ensure continuous operation of production lines, enhancing overall productivity and minimizing downtime.
Machine Tool Applications
The high-frequency capabilities of the 3G3MX2-A4022-HF make it ideal for machine tool applications requiring precise control at elevated speeds. From lathes and milling machines to specialized grinding equipment, this inverter delivers the performance needed for high-precision manufacturing processes.
Textile Machinery
Textile machines requiring precise speed control benefit greatly from the 3G3MX2-A4022-HF inverter. It provides consistent tension control for yarn drawing, weaving, and winding operations, significantly improving product quality and reducing material waste.
HVAC Systems
The 3G3MX2-A4022-HF is an optimal solution for fan and pump control in building automation and industrial ventilation systems. Its variable flow control capabilities deliver substantial energy savings while minimizing noise levels.
System Integration and Communication Capabilities
Connectivity and communication capabilities are crucial in modern industrial systems. The 3G3MX2-A4022-HF inverter excels in this area with advanced networking features:
Modbus Communication Protocol
The standard RS-485 based Modbus-RTU protocol enables seamless integration with PLC systems and SCADA applications. Up to 32 devices can be controlled on a single network, facilitating easy integration with centralized control systems and enhancing operational visibility.
Industrial Network Connectivity
Optional communication cards allow connection to common industrial networks such as DeviceNet, EtherCAT, and PROFIBUS-DP. This flexibility simplifies integration with existing automation systems and provides versatility in large-scale factory automation projects.
Energy Efficiency and Sustainability
The 3G3MX2-A4022-HF inverter is designed with energy conservation in mind:
Automatic Energy Optimization
An intelligent energy-saving function optimizes motor efficiency, particularly under low-load conditions, to minimize energy consumption. This feature delivers significant cost savings over the long term while reducing the environmental footprint of industrial operations.
Regenerative Energy Management
The built-in braking unit effectively manages regenerative energy during deceleration, potentially feeding it back into the system for further energy savings in appropriate configurations.
Installation and Programming Simplicity
The Omron 3G3MX2-A4022-HF inverter simplifies technical staff’s work with easy installation and rapid commissioning features:
User-Friendly Programming
Drive parameters can be easily adjusted via the integrated LCD operator panel. Additionally, Omron’s CX-Drive software allows detailed parameter settings, monitoring, and diagnostic procedures to be performed from a computer, enhancing setup efficiency and troubleshooting capabilities.
Quick Start-Up
The automatic motor identification function determines motor parameters automatically and makes the necessary adjustments for optimal performance. This feature significantly reduces commissioning time and minimizes production losses during setup.
Reliability and Durability
Designed for long-term operation in challenging industrial environments, the Omron 3G3MX2-A4022-HF inverter is equipped with various protective functions:
Comprehensive Protection Features
Overcurrent, overvoltage, undervoltage, overload, and overtemperature protection functions safeguard both the inverter and the motor it controls. The error log memory stores details of the last six errors, facilitating fault diagnosis and minimizing downtime.
Robust Design
With a wide operating temperature range (-10°C to +50°C) and high humidity resistance, the Omron 3G3MX2-A4022-HF inverter ensures reliable operation even in harsh environmental conditions. Its specialized cooling design delivers high performance in a compact form factor, making it suitable for installations with limited space.
The Omron 3G3MX2-A4022-HF inverter combines all essential features required for industrial motor control applications in a single product. Its compact design, high performance, energy efficiency, and advanced communication capabilities fully meet the requirements of modern factory automation, making it an ideal choice for forward-thinking industrial facilities seeking to enhance productivity and operational efficiency.
