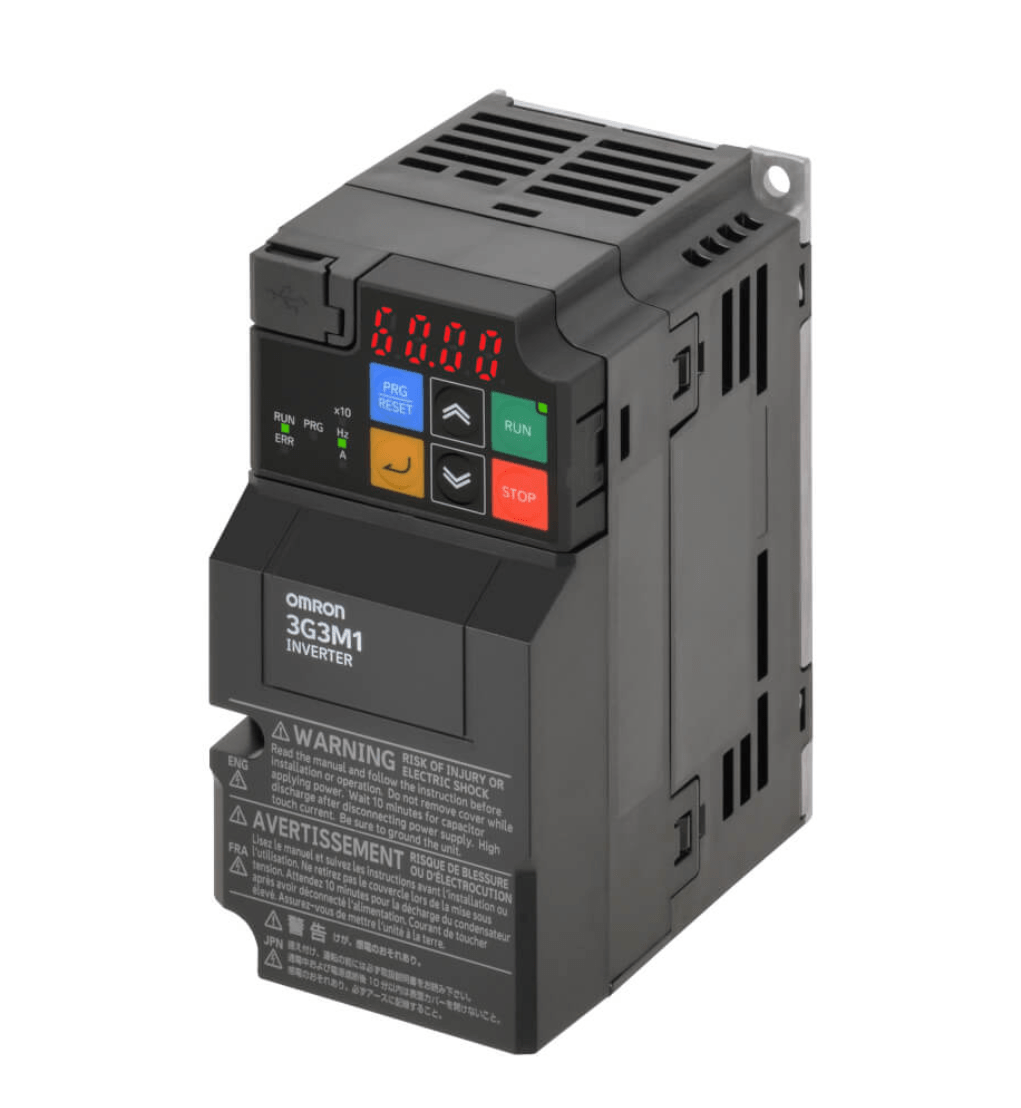

Omron 3G3M1-AB004 Inverter: High-Performance Solution for Advanced Industrial Automation

Engineered for Industrial Excellence

The Omron 3G3M1-AB004 inverter is specially designed to deliver outstanding performance in challenging industrial environments. With its compact form factor, exceptional reliability, and sophisticated control features, this AC drive enhances the efficiency of your production lines while simultaneously reducing operational costs.

Its robust construction and comprehensive protection functions ensure consistent, trouble-free operation even under the most demanding conditions. The 3G3M1-AB004 provides all essential capabilities required to serve as a cornerstone component in modern factory automation systems.

Omron 3G3M1-AB004 İnverter : Technical Specifications

Feature	Value
Power Capacity	0.4 kW
Input Voltage	Single/Three Phase 200-240V AC
Output Frequency	0.1 – 400 Hz
Control Method	V/f Control, Open Loop Vector Control, Closed Loop Vector Control
Communication	RS-485 Modbus RTU, Optional Fieldbus Support
Cooling System	Natural Cooling
Protection Class	IP20
STO Safety	IEC 61800-5-2 / SIL3 Compliant

Advanced Features for Optimal Performance

Versatile Communication Protocols

The Omron 3G3M1-AB004 inverter supports multiple communication protocols, enabling seamless integration with various industrial control systems. Built-in RS-485 with Modbus RTU provides standard connectivity, while optional network adapters support major industrial protocols. This flexibility allows for real-time monitoring and control of drive parameters from your central control system.

Sophisticated Motor Control

With precise speed and torque control capabilities, the 3G3M1-AB004 delivers optimal performance tailored to your specific application requirements. It demonstrates exceptional performance across various motor types through multiple control methods, including V/f, open-loop vector, and closed-loop vector control. Customizable acceleration and deceleration profiles allow you to optimize your production processes for maximum efficiency.

Energy-Saving Technology

The Omron 3G3M1-AB004 inverter incorporates advanced energy-saving functions that significantly reduce operational costs. Its automatic energy optimization mode determines the most efficient operating point based on current load conditions, minimizing energy consumption. This feature provides substantial savings, particularly in variable-load applications such as pump and fan systems.

Industrial Applications

The Omron 3G3M1-AB004 inverter excels in a wide range of industrial applications:

Conveyor Systems

Precise speed control and advanced acceleration/deceleration profiles ensure safe and controlled material transport in conveyor systems. Superior torque control capabilities maintain stable operation even under varying load conditions, optimizing production flow and minimizing downtime.

Pump and Fan Systems

Dedicated pump and fan control functions optimize pressure, flow, and temperature regulation. Built-in PID control functionality provides precise management in closed-loop processes, enhancing system stability and energy efficiency.

Precision Machinery

High-precision positioning and speed regulation capabilities meet the exacting requirements of precision machinery applications. Advanced motor control algorithms ensure accurate motion control even in demanding applications requiring exact positioning.

Installation and System Integration

The 3G3M1-AB004 inverter offers straightforward installation and commissioning procedures. Its space-saving design minimizes control panel footprint, while multiple mounting options accommodate various installation environments.

Intuitive programming tools simplify parameter configuration and setup. The user-friendly interface streamlines the configuration process, even for complex applications, reducing commissioning time and effort.

Installation Requirements

Parameter	Requirement
Ambient Temperature	-10°C to +50°C
Humidity	95% RH or less (non-condensing)
Vibration	5.9 m/s² (0.6G) 10-55 Hz
Protection	Environment protected from dust and moisture
Altitude	Full performance up to 1000m (derating required at higher altitudes)

STO Safety Features

The 3G3M1-AB004 inverter incorporates STO (Safe Torque Off) functionality in compliance with IEC 61800-5-2 standards. This critical safety feature ensures reliable motor shutdown in emergency situations, protecting both personnel and equipment.

With SIL3-compliant design, the drive meets contemporary safety standards and provides high reliability in risk assessments. The integration of advanced safety features reduces reliance on external safety components, lowering overall system complexity and cost.

Maintenance and Troubleshooting

The 3G3M1-AB004 inverter is engineered for longevity with minimal maintenance requirements, reducing total cost of ownership. Integrated diagnostic functions proactively identify potential issues, enabling planned maintenance before failures occur.

A comprehensive error logging system facilitates rapid fault identification and resolution. Detailed operational monitoring capabilities allow continuous performance tracking, supporting the development of effective preventive maintenance strategies.

Conclusion: Elevate Your Industrial Performance

The 3G3M1-AB004 inverter delivers a comprehensive set of features essential for modern industrial facilities in a compact, cost-effective package. Its exceptional performance, versatile communication capabilities, and dependable construction enhance production efficiency while reducing operational expenses.

With support for various industrial communication protocols, the drive integrates seamlessly with existing automation systems. Its durable design and comprehensive protection functions ensure reliable operation even in demanding industrial environments.

Upgrade your factory automation systems with the Omron 3G3M1-AB004 inverter and experience the benefits of advanced motor control technology combined with industry-leading reliability.
