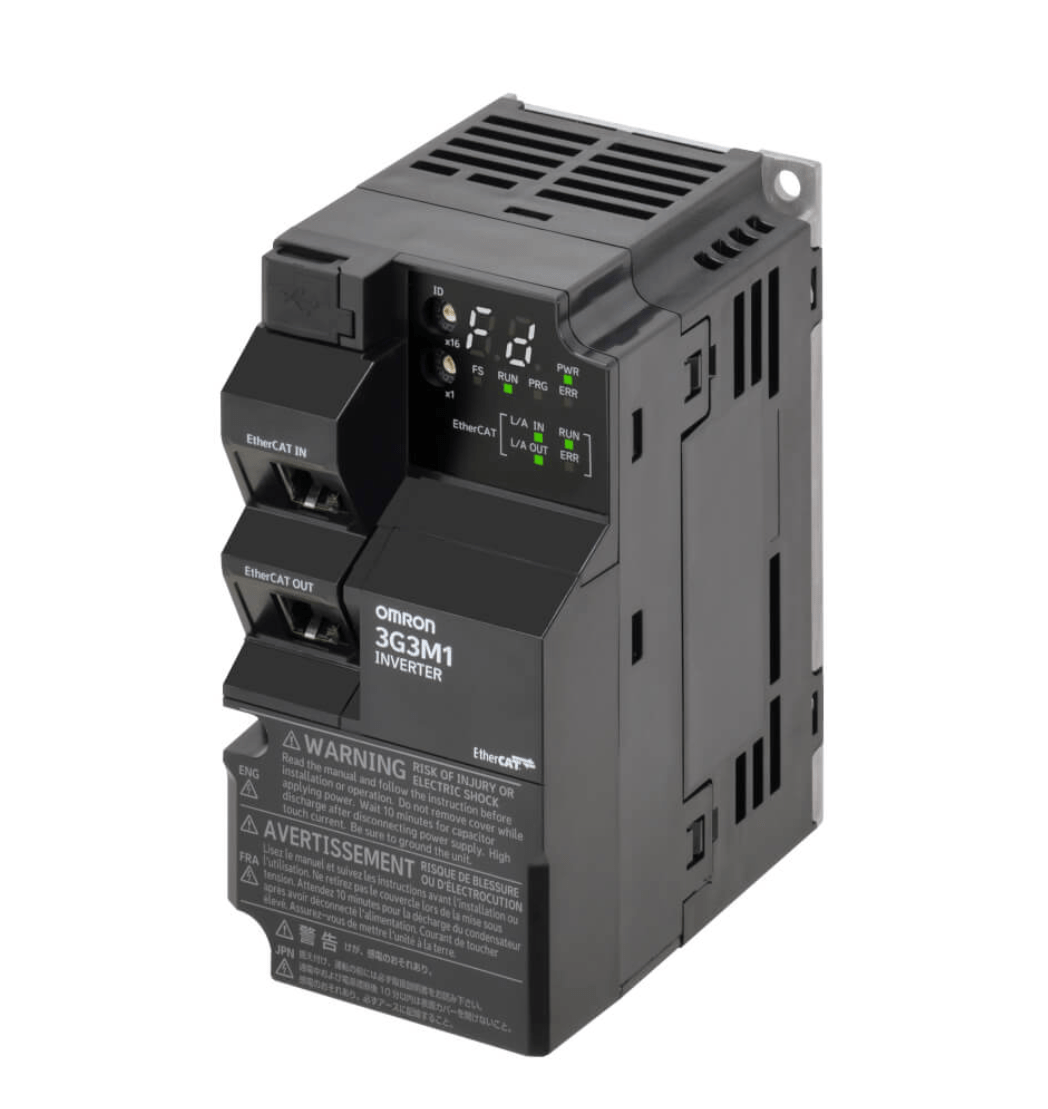

Omron 3G3M1-AB002-ECT Inverter: Compact and High-Efficiency Solution for Industrial Automation

Reliable AC Drive Designed for Industrial Automation

The Omron 3G3M1-AB002-ECT inverter is specifically engineered to deliver exceptional performance in demanding industrial environments. Its compact dimensions, high reliability, and advanced control features increase the efficiency of your production lines while reducing operating costs.

With its robust construction and advanced protection functions, it offers long-term, trouble-free operation even in challenging working conditions. The 3G3M1-AB002-ECT possesses all the essential features required to serve as the cornerstone of modern factory automation systems.

Omron 3G3M1-AB002-ECT İnvertör : Technical Specifications

Feature	Value
Power Capacity	0.2 kW
Input Voltage	Single/Three Phase 200-240V AC
Output Frequency	0.1 – 400 Hz
Control Method	V/f Control, Open Loop Vector Control, Closed Loop Vector Control
Communication	EtherCAT
Cooling System	Natural Cooling
Protection Class	IP20
STO Safety	IEC 61800-5-2 / SIL3 Compliant

Superior Features for Efficiency and Control

EtherCAT Communication Support

The Omron 3G3M1-AB002-ECT inverter supports the EtherCAT protocol, which stands out among industrial communication systems for its high speed and deterministic performance. This enables real-time control and monitoring in your automation systems. It provides seamless integration into your factory network, allowing easy access and management of all drive parameters from your central control system.

Advanced Motor Control Capabilities

Offering precise speed and torque control, it delivers optimal performance according to your application requirements. It shows high performance with different motor types through open-loop and closed-loop vector control options. Dynamic acceleration and deceleration profiles allow you to manage your production processes in the most efficient way.

Energy-Saving Functions

The 3G3M1-AB002-ECT inverter helps reduce your operating costs with integrated energy-saving functions. The automatic energy-saving mode determines the optimal operating point according to the load condition, minimizing energy consumption. This feature provides significant savings, especially in variable-load applications, pump and fan systems.

Industrial Applications

The 3G3M1-AB002-ECT inverter provides superior performance in various industrial applications:

Conveyor Systems

Precise speed control and acceleration/deceleration profiles ensure safe and controlled transport of products in conveyor systems. Advanced torque control features provide stable operation even under different loads.

Pump and Fan Systems

Specialized pump and fan control functions optimize pressure, flow, and temperature control. The PID control function provides precise control in closed-loop processes.

Packaging Machines

High-precision positioning and synchronization capabilities meet the demanding requirements of the packaging industry. Multi-motor control and EtherCAT communication features provide excellent coordination in complex packaging lines.

Installation and System Integration

Installation and commissioning of the 3G3M1-AB002-ECT inverter is straightforward. Its compact design takes up minimal space in control panels. Various mounting options accommodate different installation conditions.

Programming and parameterization processes can be easily performed with advanced software tools. Even the configuration of complex applications is simplified thanks to the intuitive user interface.

Installation Requirements

Parameter	Requirement
Ambient Temperature	-10°C to +50°C
Humidity	95% RH or less (non-condensing)
Vibration	5.9 m/s² (0.6G) 10-55 Hz
Protection	Environment protected from dust and moisture
Altitude	Full performance up to 1000m (derating required at higher altitudes)

STO Safety Features

The Omron 3G3M1-AB002-ECT inverter offers the STO (Safe Torque Off) safety function in accordance with the IEC 61800-5-2 standard. This feature ensures the safe stopping of the motor in emergency situations, helping to protect both employees and machinery.

Its design, compliant with SIL3 safety level, meets modern safety standards and provides a high safety factor in risk assessments. The use of integrated safety features reduces the need for external safety components, lowering system costs.

Maintenance and Troubleshooting

The Omron 3G3M1-AB002-ECT inverter reduces your operating costs with its long-lasting design that requires minimal maintenance. Built-in fault diagnostic functions detect potential problems early, allowing for planned maintenance.

A comprehensive error logging system makes it easy to identify the root causes of failures and respond quickly. Detailed status monitoring features allow you to continuously track the performance of your equipment and develop preventive maintenance strategies.

Conclusion: Your Reliable Partner in Industrial Automation

The Omron 3G3M1-AB002-ECT inverter offers all the features needed by modern industrial facilities in a compact package. Its high performance, advanced communication capabilities, and reliable structure increase the efficiency of your production processes while reducing operating costs.

It provides seamless integration with Industry 4.0 compatible systems thanks to EtherCAT communication support. Its durable design and advanced protection functions guarantee long-lasting and trouble-free operation even in challenging industrial environments.

Take your factory automation systems to the next level with the Omron 3G3M1-AB002-ECT inverter and benefit from its efficiency and control advantages.
