Honeywell SSCSNBN005NDAA5 Pressure Sensor: Technical Features, Measurement Role, and Application Insights
The Honeywell SSCSNBN005NDAA5 pressure sensor is part of Honeywell’s TruStability SSC Series, a widely used family of board mount pressure sensors known for stable measurement, amplified output, and compact integration into electronic systems. When engineers search for the Honeywell SSCSNBN005NDAA5 pressure sensor, they are usually looking for a differential pressure sensor that can support accurate low-pressure measurement in medical, industrial, and airflow-related applications.
What Is the Honeywell SSCSNBN005NDAA5 Pressure Sensor?

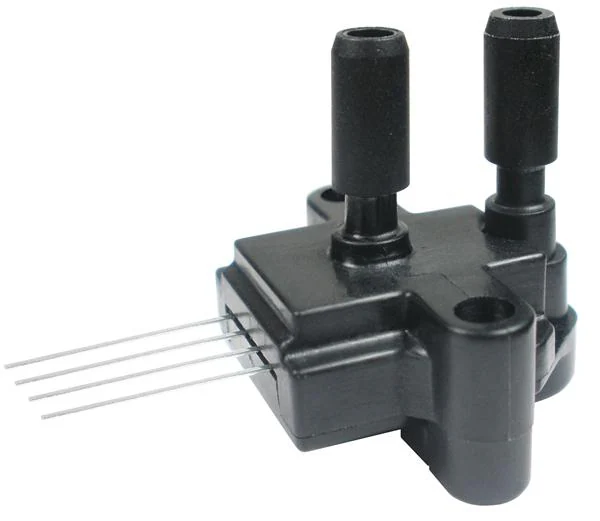

The Honeywell SSCSNBN005NDAA5 pressure sensor is commonly identified as a standard-accuracy amplified analog board mount pressure sensor in SIP format. Technical distributor records describe it as a differential sensor with dual axial ports on the same side, 5 V supply, and an output range of 0.5 V to 4.5 V. The pressure range is listed as ±5 inH2O, which corresponds to a very low-pressure measurement window suited to airflow, filtration, and precision monitoring tasks.
Technical Highlights of the Honeywell SSCSNBN005NDAA5 Pressure Sensor
The Honeywell SSCSNBN005NDAA5 pressure sensor belongs to the SSC Series, which Honeywell describes as a piezoresistive silicon pressure sensor platform with ratiometric analog or digital output options depending on model. For this specific configuration, distributor records identify an amplified analog output, same-side dual axial ports, and fastener-mount SIP packaging. Honeywell’s SSC literature also emphasizes total error band as a meaningful accuracy reference across a compensated temperature range, which is important for engineers who need realistic measurement expectations instead of idealized room-temperature figures.
This matters because low-pressure sensing applications often depend on stable output under varying environmental conditions. In HVAC controls, airflow instrumentation, and medical equipment support functions, small pressure changes can carry significant operational meaning.
Where the Honeywell SSCSNBN005NDAA5 Pressure Sensor Performs Well
The Honeywell SSCSNBN005NDAA5 pressure sensor is a strong fit for airflow measurement, filter monitoring, duct pressure verification, pneumatic control feedback, and other low-pressure differential sensing tasks. It is also relevant in devices that require compact PCB integration and predictable analog signal behavior. Because it uses a 5 V supply and a familiar 0.5 V to 4.5 V analog output span, it can be integrated into many embedded electronics architectures without requiring unusually complex signal conditioning.
In practical engineering work, sensors like the Honeywell SSCSNBN005NDAA5 pressure sensor are often selected not only for their pressure range but for their packaging and port arrangement. Same-side dual axial ports can simplify tubing layout and improve assembly efficiency in compact housings.
Why the SSC Series Remains Popular
Honeywell’s TruStability SSC Series has a strong reputation because it addresses the real needs of instrumentation and OEM design. Those needs include temperature-compensated performance, clear output behavior, manageable packaging, and long-term signal stability. The Honeywell SSCSNBN005NDAA5 pressure sensor reflects this design approach by combining a practical low-pressure range with board mount convenience and analog output simplicity.
For design engineers, another advantage is predictability. A well-documented sensor platform can reduce development friction, support calibration planning, and improve confidence during validation. That is especially valuable when the device will be part of a larger air or gas flow measurement system.
Important Usage Considerations
Technical references indicate that this sensor is intended for dry gases only. That is an important limitation and should be respected during selection. Moisture, contamination, or incompatible media can affect performance and long-term reliability in pressure sensors. Users should also ensure the operating range, tubing arrangement, and PCB mounting method match the final application design.
For more information about Honeywell, it is useful to compare the wider TruStability portfolio when deciding between standard accuracy and higher accuracy pressure sensing options.
FAQ
What pressure range does the Honeywell SSCSNBN005NDAA5 pressure sensor measure?
The Honeywell SSCSNBN005NDAA5 pressure sensor is commonly listed with a ±5 inH2O differential pressure range, which makes it suitable for low-pressure measurement tasks such as airflow and filter monitoring.
What kind of output does the Honeywell SSCSNBN005NDAA5 pressure sensor provide?
This model is identified with an amplified analog output, typically 0.5 V to 4.5 V, and is designed for a 5 V supply. That makes it convenient for many embedded and instrumentation circuits.
What media can the Honeywell SSCSNBN005NDAA5 pressure sensor measure?
Technical references state that it is intended for dry gases only. This is important because using incompatible media can reduce accuracy and compromise sensor life.
Why is the Honeywell SSCSNBN005NDAA5 pressure sensor useful in airflow applications?
Its low differential pressure range, compact board mount format, and analog output make it suitable for measuring subtle pressure differences associated with airflow, filtration, and pneumatic monitoring.
What should engineers check before specifying the Honeywell SSCSNBN005NDAA5 pressure sensor?
They should confirm pressure range, media compatibility, supply voltage, output interface, tubing layout, mounting method, and temperature performance expectations. Those details determine whether the sensor will perform reliably in the final design.
