Honeywell NGCMB10AX01C Limit Switch: Compact Control in a Configurable Platform

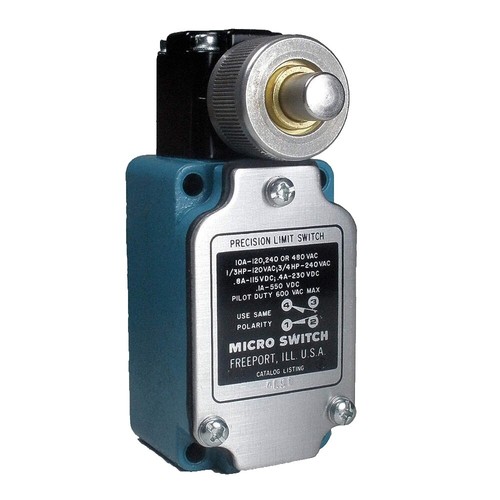

The Honeywell NGCMB10AX01C limit switch is part of Honeywell’s MICRO SWITCH NGC series, a compact and configurable industrial switch family built for medium-duty applications. The Honeywell NGCMB10AX01C limit switch is commonly listed with a 1 m cable with flying leads and a roller plunger style format with 1NC/1NO switching, making it a useful option for machine builders who need flexibility in a compact housing.
What the NGC Series Brings to the Table
Honeywell describes the NGC platform as a configurable family that can be built in a very large number of combinations while maintaining a common housing and mounting footprint. The NGC series also supports SPDT or DPDT circuitry and is described as sealed to IP67 for potential indoor and outdoor use. That combination matters because it gives engineers one platform that can adapt to different machine requirements without forcing a complete redesign.
Why the Honeywell NGCMB10AX01C Is Useful
The Honeywell NGCMB10AX01C compact limit switch fits applications where space is limited but environmental durability still matters. The cable exit style can simplify installation in moving equipment or compact machine zones where conduit-heavy solutions are less practical. The roller plunger arrangement also supports direct mechanical actuation in repeatable motion paths.
Typical Applications
The Honeywell NGCMB10AX01C limit switch is relevant for packaging machines, conveyors, compact automation cells, OEM equipment, guarding-related position checks, and general machine travel monitoring. It is especially useful in equipment that benefits from a sealed, medium-duty, field-ready switch with straightforward wiring.
Engineering Considerations
When selecting the Honeywell NGCMB10AX01C industrial limit switch, engineers should check cable routing, switch travel, mounting footprint, contact logic, and environmental exposure. A compact switch can be highly effective, but only when the actuation geometry is stable and the installation avoids unnecessary side load or cable strain.
For more information about Honeywell, reviewing Honeywell compact and medium-duty switch families can help confirm whether the NGC platform is the right balance between size and robustness.
FAQ
What is the Honeywell NGCMB10AX01C?
It is a compact industrial limit switch from Honeywell’s NGC series, commonly listed with flying leads and a roller plunger style.
Is the Honeywell NGCMB10AX01C sealed?
The NGC series is described as sealed to IP67, which supports use in many indoor and outdoor industrial environments.
Why is the NGC series considered flexible?
The platform is designed as a configurable family with a common housing footprint and multiple circuitry and actuator options.
Where is the Honeywell NGCMB10AX01C typically used?
It is commonly used in compact machinery, packaging systems, conveyors, and OEM applications needing mechanical position feedback.
What should be checked before specifying it?
Confirm contact arrangement, cable length and routing, mounting compatibility, environmental conditions, and actuator alignment.
