Honeywell LSA4L Limit Switch: Heavy-Duty Construction, DPDT Switching, and Industrial Use
The Honeywell LSA4L limit switch is part of Honeywell’s MICRO SWITCH HDLS Series, a well-known heavy-duty industrial switch family used in demanding automation and machine environments. This model is commonly referenced by engineers who need a side rotary limit switch with a robust housing, dependable mechanical action, and double-pole switching capability.
What Is the Honeywell LSA4L Limit Switch?

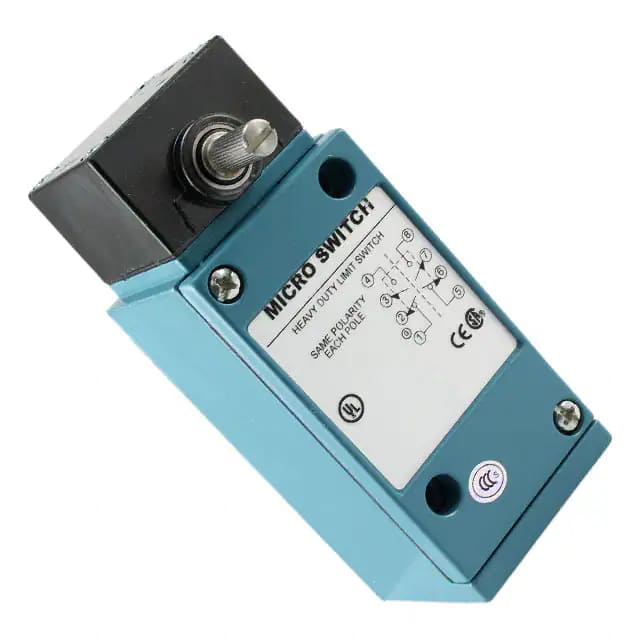

The Honeywell LSA4L limit switch is typically described as an HDLS Series heavy-duty limit switch with side rotary actuator configuration and 2NC/2NO DPDT contact arrangement. That configuration makes it especially useful in industrial control systems where more than one circuit may need to be monitored or switched at the same time. Compared with a simpler SPDT switch, the Honeywell LSA4L limit switch provides greater logic flexibility.
Technical Characteristics of the Honeywell LSA4L Limit Switch
Distributor records identify the Honeywell LSA4L limit switch as a non-plug-in heavy-duty side rotary model in the HDLS family. Honeywell’s official HDLS literature describes the wider series as using boss-and-socket head retention, an all-metal drive train for more consistent performance at elevated temperature, self-lifting pressure plate terminals, corrosion-resistant zinc head and body construction, and sealing elements designed for demanding industrial settings.
That series-level construction matters because it explains why a switch like the Honeywell LSA4L limit switch is used in tough service rather than light-duty control applications. Heavy-duty limit switches must tolerate repeated actuation, environmental stress, and the mechanical realities of factory equipment.
Why DPDT Matters in Industrial Control
The 2NC/2NO DPDT arrangement is one of the most meaningful aspects of the Honeywell LSA4L limit switch. In practical terms, DPDT allows a single mechanical action to influence multiple control paths. For example, one set of contacts can be used for machine control feedback while another supports indication, interlock, or secondary logic. This can simplify wiring strategies and reduce the need for extra sensing hardware in some designs.
For maintenance teams, a well-specified DPDT limit switch can also make troubleshooting more transparent because multiple states can be monitored from one mechanical input point.
Industrial Applications of the Honeywell LSA4L Limit Switch
The Honeywell LSA4L limit switch is suitable for heavy machinery, conveyors, process equipment, hoists, packaging systems, and industrial motion control applications where rugged side rotary actuation is needed. Because of the heavy-duty construction associated with the HDLS Series, this model is relevant wherever long-term mechanical dependability is more important than ultra-compact size.
It is also a practical choice for retrofit projects where legacy Honeywell heavy-duty switch platforms are already present. Maintaining a consistent switch family across machines can simplify spare parts strategy, technician familiarity, and documentation management.
Selection and Installation Notes
When choosing the Honeywell LSA4L limit switch, engineers should evaluate contact requirements, actuator direction, approach geometry, environmental demands, conduit needs, and maintenance access. Heavy-duty switches perform best when the actuator movement is well aligned with the machine path. Poor cam design or excessive overtravel can reduce service quality even in a robust switch family.
For more information about Honeywell, comparing the broader HDLS family can help clarify whether a non-plug-in side rotary DPDT model is the best fit for the application.
FAQ
What type of switch is the Honeywell LSA4L limit switch?
The Honeywell LSA4L limit switch is a heavy-duty HDLS Series industrial limit switch with side rotary actuation and DPDT contact arrangement.
What does 2NC/2NO mean for the Honeywell LSA4L limit switch?
It means the switch includes two normally closed contacts and two normally open contacts. This gives the switch a double-pole double-throw style of functionality and supports more flexible control logic.
Why is the LSA4L limit switch used in industrial machinery?
It is used because the HDLS family is built for rugged service. The series is known for durable construction, heavy-duty switching, and reliable operation in demanding machine environments.
Is the LSA4L limit switch suitable for retrofit work?
Yes. It is often relevant in retrofit and replacement projects where an existing machine already uses Honeywell heavy-duty limit switch hardware and a compatible side rotary DPDT model is required.
What should be checked before installing the Honeywell LSA4L limit switch?
Installers should verify actuator direction, circuit needs, mounting arrangement, conduit entry, environmental conditions, and the actual motion profile of the machine part that will trigger the switch.
