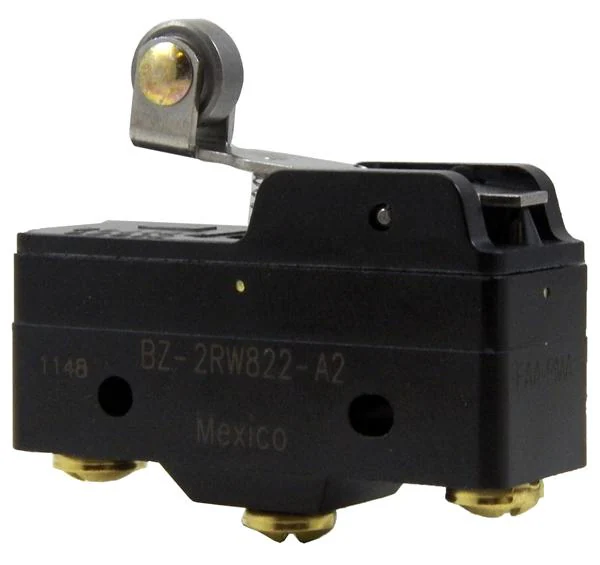

Honeywell BZ-2RW822-A2 Basic Switch: Roller Lever Design and Technical Breakdown
The Honeywell BZ-2RW822-A2 basic switch is a classic snap-action switch from Honeywell’s BZ series, developed for industrial and OEM applications that need a reliable electromechanical response in a compact footprint. This model is typically described as an SPDT roller lever switch with screw mounting and screw termination, making it especially relevant for machine builders who want a switch that is easy to integrate, straightforward to wire, and proven in long-cycle service.
Product identity and switch type
The Honeywell BZ-2RW822-A2 basic switch is widely listed as a snap-action SPDT switch with a roller lever actuator. Datasheet summaries describe it with a maximum current rating of 16 A, voltage capability up to 600 V AC and 250 V DC, 15 A contact rating, silver contacts, and a mechanical life of 20,000,000 cycles. Electrical life is listed at 100,000 cycles, while the operating temperature range is shown as -55°C to 85°C. These figures place the model in a durable class for demanding electromechanical designs.
Why the roller lever matters
A major strength of the Honeywell BZ-2RW822-A2 Honeywell basic switch is its roller lever actuator. In practical use, roller levers reduce friction at the actuation point, particularly where a cam, guide rail, or moving machine part repeatedly passes over the switch. This can improve smoothness of operation and help reduce wear on the actuating interface. The model is associated with a stainless-steel actuator arm and a straight orientation, both of which support stable mechanical engagement in compact assemblies.
Technical considerations for system designers
The Honeywell BZ-2RW822-A2 snap action switch gives designers both normally open and normally closed contact options through its SPDT arrangement. That makes it useful for equipment that needs one signal for confirmation and another for stop, alarm, or redundancy logic. The screw-terminal connection style also remains a practical advantage in industrial settings because it supports field service and replacement without changing the surrounding control architecture.
Another key point is endurance. A mechanical life of 20 million cycles is significant in repetitive-use systems. When the switch is mounted correctly and the actuator path is well controlled, that longevity can make a meaningful difference in maintenance intervals and lifecycle cost. However, system design still matters. Shock loading, side force, aggressive overtravel, and unsuitable electrical loads can all reduce service life in the real world.
Where the Honeywell BZ-2RW822-A2 is commonly used
The Honeywell BZ-2RW822-A2 basic switch can be used in packaging machinery, vending systems, industrial appliances, machine guards, process handling equipment, and custom automation assemblies. It is particularly valuable in internal machine spaces where a sealed field-mount switch would be excessive but a high-quality electromechanical switch is still required.
Its operating temperature range also helps it fit into a broad range of environments, from cold machinery enclosures to warmer equipment housings. While it is not described as an IP-rated sealed unit, it performs well in protected machine interiors where the overall design shields it from direct washdown or heavy contamination.
Installation and maintenance insights
When specifying the Honeywell BZ-2RW822-A2 industrial basic switch, engineers should confirm actuator travel geometry and ensure that the roller lever meets the moving target cleanly. A switch like this works best when the motion path is consistent and the actuator is not twisted or side-loaded. Wiring should be secure, terminal torque should be appropriate, and contact load should be evaluated against the real application rather than only the maximum headline number.
Maintenance teams often prefer products like the Honeywell BZ-2RW822-A2 basic switch because the failure modes are usually understandable. If performance changes, technicians can inspect the actuator, the mounting alignment, the wiring, and the mechanical trigger path directly. For more information about Honeywell, looking across the broader BZ family can help identify close functional alternatives when actuator style or rating requirements change.
FAQ
What type of switch is Honeywell BZ-2RW822-A2?
The Honeywell BZ-2RW822-A2 is a snap-action SPDT basic switch with a roller lever actuator, designed for industrial and OEM equipment integration.
What are the key ratings of the Honeywell BZ-2RW822-A2 basic switch?
Published summaries list a maximum current rating of 16 A, contact current rating of 15 A, and maximum voltage ratings up to 600 V AC and 250 V DC. The switch is also associated with 20,000,000 cycles of mechanical life.
Why is a roller lever useful?
A roller lever reduces friction between the actuator and the moving machine part. This can improve motion smoothness and reduce wear in repetitive actuation applications.
Is Honeywell BZ-2RW822-A2 suitable for harsh outdoor environments?
It is better suited to protected internal machine environments unless the overall system provides sufficient shielding. It is a basic switch, not a fully enclosed field-mounted limit switch.
What temperature range is associated with this model?
Available technical data lists an operating temperature range of -55°C to 85°C, which is broad enough for many industrial applications.
Can the Honeywell BZ-2RW822-A2 be used in retrofit projects?
Yes. Its screw-terminal and screw-mount format can make retrofits easier in older equipment where maintenance teams want a familiar integration style and a dependable mechanical switch response.
