Honeywell 16HM4 Sealed Switch Specification Guide
The Honeywell 16HM4 sealed switch is a compact industrial switching solution intended for applications where environmental resistance and dependable actuation are critical. As a member of Honeywell’s HM Series, this model is associated with miniature hermetically sealed switch construction and is often specified in systems where contamination, corrosion risk, or wide operating temperatures make standard snap-action switches less suitable. For technical procurement teams, the Honeywell 16HM4 sealed switch is a code-specific product that deserves part-level review rather than broad category assumptions.
What Makes the Honeywell 16HM4 Different?

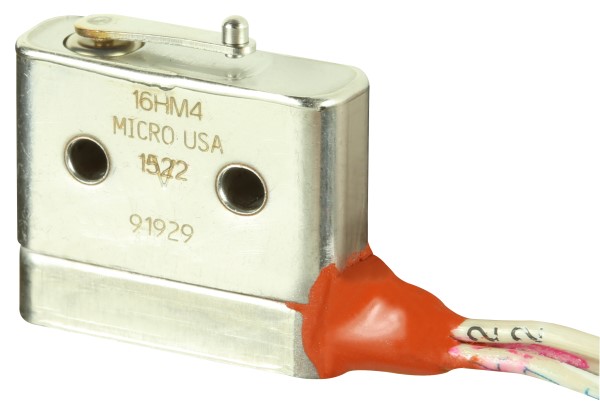

The Honeywell 16HM4 industrial sealed switch is identified as an SPDT miniature switch with a stainless steel enclosure and wire lead termination. Product references describe this model with three 457 mm, or 18 inch, lead wires, with the leads exiting opposite the actuator. A terminal guard is also associated with the 16HM4 configuration, which can support durability and installation confidence in demanding assemblies.
Technical Highlights of the Honeywell 16HM4 Sealed Switch
The Honeywell 16HM4 switch is aligned with the HM Series platform, which uses hermetic sealing to protect the internal switching chamber. This design approach helps maintain stable switching performance in the presence of dust, water, particulates, and corrosive gases. The 16HM4 product references also indicate SPDT circuitry and a rating of 3 A at 28 Vdc, together with a temperature range from -65°C to 260°C. Under non-flexing wire lead conditions, lower-temperature capability can extend even further.
These details make the Honeywell 16HM4 industrial switch useful in systems where electrical performance alone is not enough. Mechanical packaging, lead orientation, and environmental sealing all influence whether a switch will remain reliable over time. That is why Honeywell 16HM4 searches are usually driven by engineering requirements, not casual component browsing.
Where the Honeywell 16HM4 Sealed Switch Is Commonly Used
The Honeywell 16HM4 can be relevant in aerospace support hardware, industrial equipment, test systems, and compact machinery that requires repeatable switching in difficult environments. Because the switch combines hermetic sealing with a miniature footprint, it is a practical choice for tightly packaged systems that still need robust environmental performance.
For more information, visit Honeywell.
FAQ About the Honeywell 16HM4 Sealed Switch
What type of switch is the Honeywell 16HM4?
The Honeywell 16HM4 is an SPDT miniature sealed switch in the HM Series. It is designed for applications that require compact size and strong environmental protection.
How are the leads configured on the Honeywell 16HM4?
Technical references describe the Honeywell 16HM4 with three 18-inch wire leads, and those leads exit opposite the actuator. This can be important for cable routing and installation planning.
Does the Honeywell 16HM4 support harsh temperatures?
Yes. The listed operating range reaches from -65°C to 260°C, which makes the switch suitable for demanding thermal environments compared with many standard industrial switch products.
Why is hermetic sealing useful in the Honeywell 16HM4?
Hermetic sealing helps protect the contacts from contaminants and corrosive conditions. In many industrial and aerospace-adjacent applications, this improves long-term reliability and performance consistency.
Why do buyers search for Honeywell 16HM4 sealed switch details instead of just HM Series information?
Because exact details such as contact form, wire lead length, terminal guard presence, and lead exit direction matter during specification and replacement. The product code defines those practical differences.
