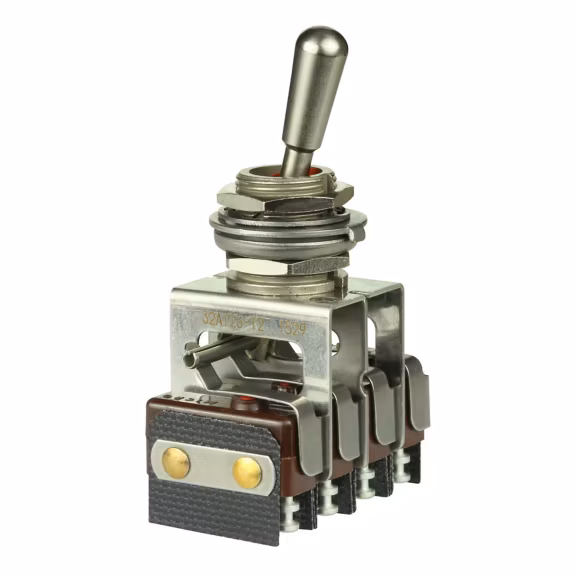

Honeywell 13AT96-T Toggle Switch Overview
The Honeywell 13AT96-T toggle switch is part of the trusted MICRO SWITCH AT Series, a product family known for compact construction, dependable switching performance, and long-term use in demanding control panels. As a Honeywell 13AT96-T toggle switch, this model is commonly referenced by engineers who need a panel mount switching solution with a DPDT circuit and an On-Off-On function. In practical terms, that means it can manage two separate circuits while giving the operator three clear lever positions for controlled switching logic.
Technical Features of the Honeywell 13AT96-T Toggle Switch
The Honeywell 13AT96-T panel mount toggle switch is listed with a DPDT circuit, a 1 A current rating at 30 VDC, a standard round actuator, and solder turret terminals. It uses a panel cutout of 12.40 mm and a 15/32-32 bushing thread, making it suitable for compact operator panels and instrument assemblies where secure mounting matters. The actuator length is approximately 19.05 mm, which gives the operator a familiar and controlled switching feel without taking up excessive front-panel space.
Where the Honeywell 13AT96-T Toggle Switch Fits Best
Because this Honeywell 13AT96-T operator control switch uses an On-Off-On function, it is a practical choice for directional control, mode selection, and low-power switching tasks in industrial electronics, test equipment, control stations, and machine interfaces. Designers often choose AT Series products when they want the reliability of a metal lever and panel mount construction without moving to a much larger switch format. The AT Series platform is also recognized for short behind-panel depth, which can help in crowded enclosures where wiring and component spacing are limited.
Why Engineers Still Search for 13AT96-T
Even though this specific Honeywell 13AT96-T DPDT toggle switch is widely shown as obsolete or discontinued by distributors, it remains relevant for maintenance teams, retrofit projects, and legacy panel documentation. In real-world applications, many facilities do not redesign a complete panel simply because one switch family becomes harder to source. Instead, they need accurate specifications, terminal details, and functional behavior to identify a compatible replacement strategy or validate an existing installed component. That is why part-number-level documentation is still important.
FAQ About 13AT96-T Toggle Switch
What type of switch is the Honeywell 13AT96-T?
It is a Honeywell 13AT96-T toggle switch with a DPDT circuit and an On-Off-On switching function. This allows it to control two circuits with three maintained positions.
What is the voltage and current rating of the Honeywell 13AT96-T toggle switch?
This model is listed with a 1 A rating at 30 VDC. That makes it suitable for lower-power control applications rather than heavy-load switching.
How is the 13AT96-T mounted?
The switch is a panel mount model with a 12.40 mm circular cutout and a 15/32-32 threaded bushing. These dimensions are important when replacing an existing switch in a control panel.
What terminal style does the 13AT96-T use?
The Honeywell 13AT96-T switch uses solder turret terminals, which are often preferred where secure lead attachment and vibration resistance are needed.
Where can this switch be used?
Typical uses include control panels, test instruments, industrial electronics, and operator interfaces where a compact Honeywell 13AT96-T toggle switch is needed for precise circuit selection. For more information about Honeywell, you can review additional product resources and category information.
