Honeywell 13AT8 Toggle Switch: Design Features and Application Benefits

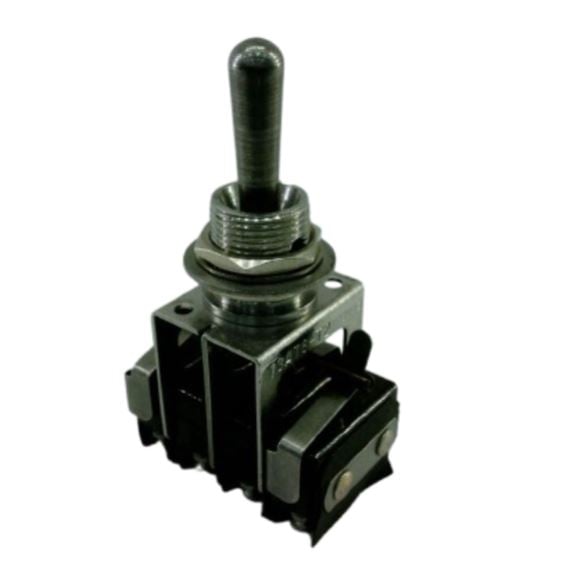

The Honeywell 13AT8 toggle switch is part of the MICRO SWITCH AT Series and is commonly used in technical applications that require reliable multi-circuit manual control. This model is known as a 4PDT, 3-position toggle switch with solder lug termination and a standard round actuator. In other words, the Honeywell 13AT8 operator control switch is designed for projects where one lever must manage several circuits with consistent mechanical action.
Main Characteristics of the Honeywell 13AT8
A major strength of the Honeywell 13AT8 4PDT toggle switch is its ability to control four poles simultaneously. That is especially useful in advanced control logic, instrumentation, communication systems, and specialized machinery interfaces. Compared with a lower-pole toggle switch, the Honeywell 13AT8 industrial toggle switch can support more complex switching tasks while still fitting into a compact panel-mounted format.
The three-position design brings added flexibility. In many systems, that can mean center-state logic, directional commands, or temporary/manual control arrangements depending on the wiring scheme. The AT Series also has a strong reputation for robust metal construction, which is one reason it continues to be specified in demanding technical environments.
Where the Honeywell 13AT8 Fits Best
The Honeywell 13AT8 panel mount toggle switch is often considered for operator panels, laboratory equipment, industrial controls, maintenance stations, transportation systems, and retrofit assemblies. Because it uses solder termination, it may be preferred in builds where long-term connection stability is important.
From a design perspective, the Honeywell 13AT8 3-position toggle switch is especially useful when multiple independent contacts must change state together. That can simplify interface design and reduce the need for multiple individual switches.
Installation and Service Advice
When selecting a Honeywell 13AT8 toggle switch, teams should review actuator clearance, panel cutout compatibility, terminal access, and switch function mapping. Multi-pole switches are highly capable, but accurate documentation matters. During maintenance, checking solder joint quality and actuator feel can help identify wear before it causes downtime.
Well-labeled switching positions also improve usability, especially in systems where the center state has a distinct operational purpose.
FAQ
What type of switch is the Honeywell 13AT8?
The Honeywell 13AT8 toggle switch is a 4PDT, 3-position panel-mount switch in the Honeywell AT Series. It is commonly listed with solder lug termination and a standard round actuator.
Why would a 4PDT switch be useful?
A 4PDT switch can control four separate poles together, which is valuable when a single operator input needs to manage several electrical paths at once. This is often useful in technical control schemes and specialized equipment.
Is the 13AT8 a good fit for industrial panels?
Yes, the 13AT8 industrial toggle switch can be a strong fit for industrial and technical panels where multi-circuit manual control is required. Final suitability should always be checked against the application’s electrical design.
What is the benefit of solder lug termination?
Solder lug termination supports a secure wired connection and is often selected where durability and long-term connection integrity are priorities.
Where can I find more Honeywell-related information?
For more information about Honeywell, you can browse additional product references and supporting resources.
