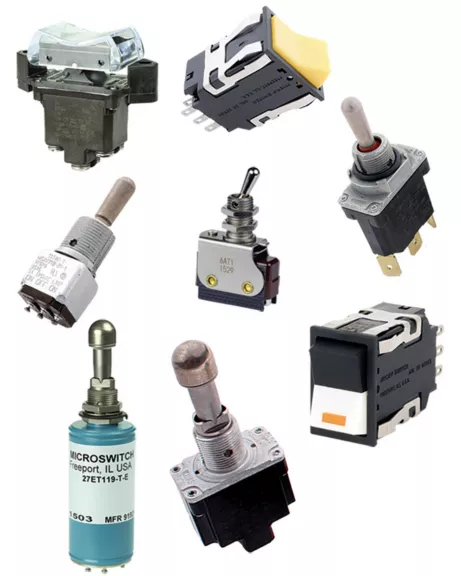

Honeywell 13AT475-T2 Toggle Switch: Technical Overview and Practical Uses
The Honeywell 13AT475-T2 toggle switch is part of the well-known MICRO SWITCH AT Series, a family designed for demanding control applications where mechanical reliability and clear switching feedback matter. This model is commonly identified as a Honeywell 13AT475-T2 toggle switch with a 3PDT, 3-position configuration, a metal tab lever, and T2 double turret solder terminals. For engineers, maintenance teams, and panel builders, that combination makes it a practical choice when multiple circuits need to be controlled from one compact switch body.
What Makes the Honeywell 13AT475-T2 Toggle Switch Distinct?
One of the biggest advantages of the Honeywell 13AT475-T2 industrial toggle switch is its multi-pole design. A 3PDT layout allows three separate circuits to be switched together, which is useful in control panels, test equipment, aerospace support systems, and specialized industrial interfaces. The three-position structure also gives more control flexibility than a basic on-off switch, especially where a center function is needed.
The metal tab lever format is another detail worth noting. It offers a solid manual feel and is often preferred in applications where tactile confidence is important. In addition, the T2 double turret terminal style supports secure soldered wiring, which can help maintain stable electrical connections in vibration-prone environments.
Common Applications for Honeywell 13AT475-T2
The Honeywell 13AT475-T2 toggle switch accessory is often relevant in equipment that needs dependable manual input. Typical use cases include operator panels, electrical control assemblies, military-style equipment layouts, transportation systems, and instrument control boxes. Because the AT Series is known for durable metal construction, it remains a familiar option in projects that prioritize long service life.
For design teams comparing part numbers, the Honeywell 13AT475-T2 tab lever toggle switch stands out when the application specifically calls for three poles, three positions, and solder termination. That makes it different from simpler two-position or lower-pole alternatives in the same product family.
Installation and Maintenance Considerations
When integrating a Honeywell 13AT475-T2 panel mount toggle switch, it is important to verify circuit mapping, lever orientation, and soldering quality during assembly. Good solder practice helps reduce intermittent faults over time. It is also wise to confirm compatibility with the intended panel cutout, surrounding wiring space, and expected duty cycle.
Routine inspection should focus on terminal integrity, lever movement, and any signs of environmental stress. In critical systems, documenting switch position logic can also simplify future servicing and troubleshooting.
FAQ
What type of switch is the Honeywell 13AT475-T2?
The Honeywell 13AT475-T2 toggle switch is a 3PDT, 3-position switch in Honeywell’s MICRO SWITCH AT Series. It is built with a metal tab lever and T2 double turret solder terminals, making it suitable for compact but technically demanding control assemblies.
What does 3PDT mean on the Honeywell 13AT475-T2?
3PDT means three-pole, double-throw. In practical terms, the switch can manage three separate electrical paths at the same time. That is useful when one lever movement must control more than one circuit in a coordinated way.
Why are T2 double turret terminals important?
T2 double turret terminals are designed for soldered connections. They are often chosen where wiring security matters and where installers want a firm, durable electrical joint instead of a quick-connect format.
Is the Honeywell 13AT475-T2 suitable for industrial control panels?
Yes, it is often a good fit for industrial and technical panel applications that require multi-circuit switching, a rugged manual lever, and dependable mechanical operation. Final suitability still depends on the exact electrical and environmental requirements of the project.
