Honeywell 12TW870-8 Operator Controls Toggle Switch Overview
The Honeywell 12TW870-8 operator controls toggle switch is designed for panel-based control systems that require compact dimensions, dependable switching, and environmental protection. Verified product listings describe this model as a DPDT panel mount switch with an on-moment switching function, a 5 A rating at 125 V AC, and an environment-sealed housing format. For engineers and technical buyers, that makes it a relevant option when a switch must deliver immediate user response without sacrificing durability.
Technical Characteristics of the Honeywell 12TW870-8 Operator Controls Switch

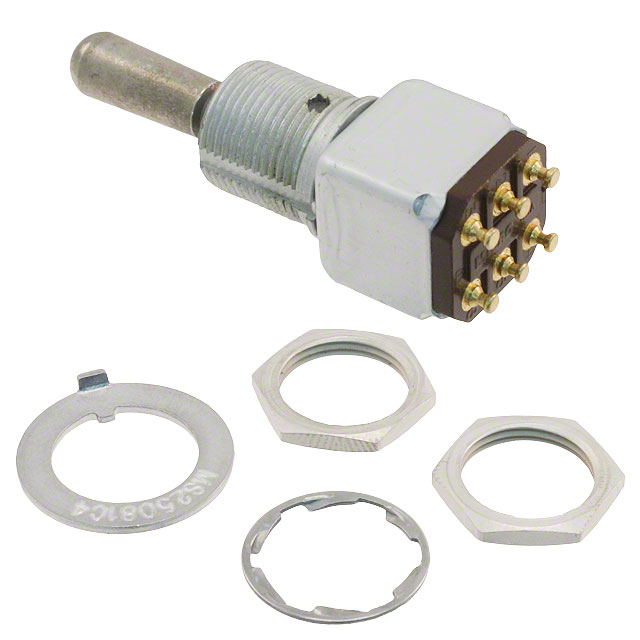

The Honeywell 12TW870-8 toggle switch is part of the TW Series, a product family associated with miniature, ruggedized toggle switch construction. This exact model is commonly shown with a standard round actuator, PC pin termination, and a 15/32-32 threaded bushing for panel mounting. The actuator length is typically listed around 17.27 mm, while the mounting format is aligned with a 12.40 mm circular panel cutout.
What makes the Honeywell 12TW870-8 operator controls component especially useful is its on-moment behavior. In real-world control logic, that means the switch is ideal for functions that should only remain active while the operator is intentionally holding the lever. This is often valuable in jog controls, temporary overrides, machine setup functions, and command circuits where a maintained state could be undesirable.
Why This Honeywell Operator Controls Model Matters
When teams search for a Honeywell 12TW870-8 operator controls switch, they are often not just looking for a catalog part number. They need a control interface that performs consistently over time and under stress. The TW Series is widely recognized for compact dimensions, sealed construction, and suitability for demanding environments. That matters in industries where panels may face vibration, repeated actuation, and intermittent exposure to dirt or moisture.
The Honeywell DPDT toggle switch format also adds versatility. DPDT architecture allows two circuits to be switched together, which is useful in equipment where one physical action must trigger mirrored or coordinated electrical changes. That design flexibility is one reason parts like the Honeywell 12TW870-8 remain relevant across industrial machinery, transportation equipment, and specialized control interfaces.
FAQ
What is the main function of the Honeywell 12TW870-8?
The Honeywell 12TW870-8 operator controls toggle switch is commonly used as a DPDT panel mount switch with an on-moment action. It is suited to command inputs that should only remain active while the lever is held.
Is the Honeywell 12TW870-8 sealed?
Yes. Public product listings place this model in an environment-sealed configuration, which supports use in more demanding operating conditions than unsealed alternatives.
What electrical rating is typically associated with the 12TW870-8 operator controls part?
Distributor data commonly identifies the switch as rated 5 A at 125 V AC. Final electrical suitability should still be checked against the latest application requirements and official documentation.
What actuator style does this Honeywell switch use?
This model is generally listed with a standard round actuator, which gives it a familiar and straightforward operating feel in control panels.
Where is the 12TW870-8 typically used?
It is suitable for operator panels, machinery interfaces, and systems needing temporary switching input, especially where compact size and sealed construction are important.
