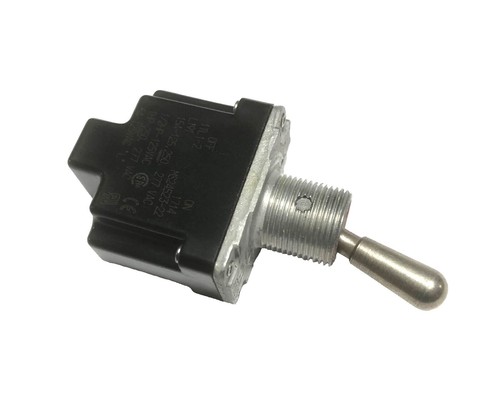

Honeywell 12TW804-72 Operator Controls Accessory: Features, Function, and Selection Insight

The Honeywell 12TW804-72 operator controls accessory is a TW Series toggle solution associated with demanding panel-based control environments. It is a part number often researched by engineers, buyers, and maintenance teams who need to preserve exact switching behavior in installed systems. The reason is straightforward: when a switch is central to human-machine interaction, the exact lever style, switching action, and mounting details all become important. The Honeywell 12TW804-72 toggle switch is therefore usually selected through precise specification rather than casual substitution.

Key Technical Features of the 12TW804-72

Available listings describe the Honeywell 12TW804-72 operator controls accessory as a DPDT toggle switch with a 5 A rating at 125 VAC, solder pin termination, sealed construction, and a 15/32-32 bushing. It is also associated with a paddle actuator. These details matter because they shape both the electrical role of the switch and the physical user experience of the control panel.

One especially important point is the switch function associated with this code. Distributor references describe it as (ON)-OFF-(ON), which indicates momentary action on both extremes with an off position in the center. That configuration can be very useful in systems where the operator must command a temporary action without leaving the switch latched in the active position.

Why the Actuator Style Matters

The paddle-style actuator changes more than appearance. It affects glove use, tactile recognition, and how quickly an operator can identify the control in a dense panel. In technical interfaces, actuator geometry often contributes to safe and intuitive operation. This is one reason the Honeywell 12TW804-72 operator controls accessory remains part-specific in procurement and documentation workflows.

Honeywell support documentation also notes that the standard 12TW804-72 uses a standard bat-shaped toggle in contrast to the 12TW804-72E variant, which uses a pull-to-unlock style. That distinction is important because it highlights how even closely related part numbers can serve different control philosophies.

Application Context

The Honeywell 12TW804-72 operator controls accessory is relevant where panel-mounted manual control must remain clear, durable, and mechanically consistent. That includes industrial systems, transportation equipment, instrumentation assemblies, and applications influenced by vibration, environmental exposure, or limited installation space.
