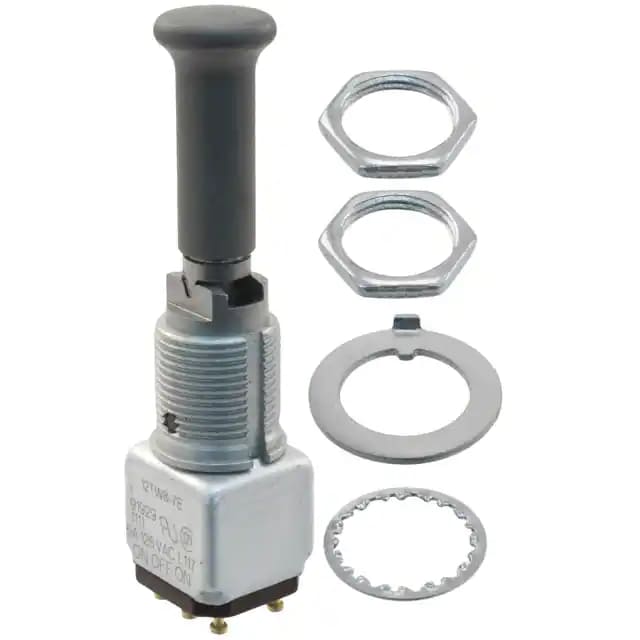

Honeywell 12TW8-7E Operator Controls Toggle Switch Details
The Honeywell 12TW8-7E operator controls toggle switch is designed for applications where precise manual switching and rugged build quality are both required. As part of the TW Series, this model follows Honeywell’s miniature military-grade toggle switch approach while offering a very specific operating profile: DPDT circuitry with a Mom-Off-Mom switch function. That makes the Honeywell 12TW8-7E operator controls version especially suitable when operators need a neutral center-off state with spring-return actuation on both sides.
Technical Specifications of Honeywell 12TW8-7E Operator Controls
The Honeywell 12TW8-7E toggle switch is listed as a panel mount device with a DPDT circuit, a 5 A AC current rating, and a 125 V AC voltage rating. It uses a locking lever actuator with an actuator length of 29.46 mm. The termination style is solder turret, which is often preferred for robust wired connections in demanding assemblies. Additional published details include a 12.40 mm circular panel cutout, a 15/32-32 bushing thread, environmental sealing, and an operating temperature range of -65°C to 71°C.
Why the Mom-Off-Mom Function Is Important
The key differentiator of the Honeywell 12TW8-7E operator controls toggle switch is the Mom-Off-Mom operating logic. This means the switch returns to an off position when released from either side. In control design, that is extremely useful when a command should only be active while the operator is intentionally holding the switch. This type of behavior is often evaluated in directional controls, short-duration command inputs, and interfaces where a neutral center-off state improves safety or control clarity.
The locking lever adds another layer of control. In environments with vibration, frequent handling, or a risk of accidental contact, a locking style can help ensure that actuation is intentional. That is one reason the Honeywell 12TW8-7E operator controls accessory stands out among sealed toggle switch options.
TW Series Design Context
Honeywell’s TW Series is associated with miniature military-grade construction and broad environmental capability. The family is widely recognized for use in applications that may involve shock, vibration, dust, splashing exposure, and temperature extremes. For buyers, engineers, and technical content teams, that context matters because the Honeywell 12TW8-7E operator controls product is more than a standard toggle switch. It sits inside a robust switch platform intended for higher reliability expectations.
This model may be reviewed for industrial control panels, transportation systems, field equipment, aviation-adjacent interfaces, and specialized instrumentation where momentary center-off switching is preferred. For more information about Honeywell, reviewing the brand’s wider electromechanical and sensing portfolio can provide useful context.
FAQ
What does Mom-Off-Mom mean on the Honeywell 12TW8-7E?
It means the switch has a momentary action on both sides and returns to a center off position when released. This is a useful configuration when operators need temporary directional or command inputs without a maintained state.
What kind of circuit does the Honeywell 12TW8-7E use?
The Honeywell 12TW8-7E operator controls toggle switch uses a DPDT circuit. That makes it relevant for applications requiring two poles and more versatile control logic than a simple single-pole design.
Is the lever on this model a locking type?
Yes. Public specifications list the actuator as a locking lever. This design choice can help reduce accidental operation in demanding installations.
What are the main electrical ratings?
The published ratings are 5 A AC and 125 V AC. Even so, engineers should always confirm full compatibility with the intended system, load profile, and regulatory requirements.
How is the Honeywell 12TW8-7E installed?
This switch is specified for panel mounting and uses solder turret termination. It also requires a 12.40 mm circular panel cutout and uses a 15/32-32 bushing thread.
Can this switch be used in challenging environments?
It is listed as environment sealed and supports an operating temperature range of -65°C to 71°C. Those characteristics make it a strong candidate for more demanding applications than standard consumer-grade toggle switches.
