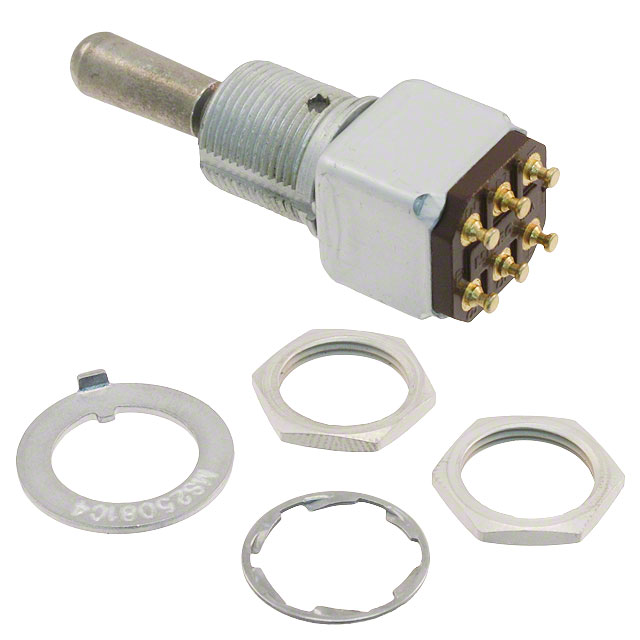

Honeywell 12TW59-7N Locking DPDT Toggle Switch for Rugged Control Panels
The Honeywell 12TW59-7N toggle switch is a TW Series control component developed for demanding operator interfaces where intentional actuation and dependable switching are priorities. As a Honeywell 12TW59-7N operator control accessory, it is especially relevant in technical environments that require a sealed switch body, locking lever action, and a momentary function on both sides of the center position.
Technical Overview of Honeywell 12TW59-7N
The Honeywell 12TW59-7N DPDT toggle switch is commonly listed with a DPDT contact form and a (ON) – OFF – (ON) switching function. It also features solder pin termination, sealed construction, a locking lever actuator, and a 15/32-32 bushing. Typical published details include a 5 A current rating, 125 VAC capability, an actuator length of 20.83 mm, and an operating temperature range from -65 °C to +71 °C.
For engineers, those numbers tell an important story. The Honeywell 12TW59-7N operator controls accessory is not aimed at casual use. It is meant for control systems where both switching accuracy and physical resilience matter. The locking lever helps reduce unintended movement, while the dual momentary action supports temporary commands in either direction.
Why This Configuration Is Useful
A Honeywell 12TW59-7N locking toggle switch can be a strong fit in applications where the operator must manually trigger short-duration functions without leaving the switch engaged. That is valuable in many control architectures, especially when a neutral center-off state is required between actions.
Because this part combines momentary switching with a locking-style lever, it can support disciplined operation in systems that benefit from clear tactile intent. This makes the Honeywell 12TW59-7N accessory more than just a panel component. It becomes part of how the machine communicates safe and deliberate control to the user.
Application Relevance
The Honeywell 12TW59-7N operator control toggle switch is commonly relevant to industrial panels, transportation equipment, instrumentation, test rigs, and other rugged assemblies. The sealed design supports exposure to challenging surroundings, while the Honeywell TW Series heritage gives buyers confidence in product consistency and documentation clarity.
For maintenance teams, using a clearly defined part number also improves replacement accuracy. In professional settings, that matters because electrical function, lever style, and environmental tolerance must align precisely with the original system design.
FAQ
What does the Honeywell 12TW59-7N switch function do?
The switch is generally described as (ON) – OFF – (ON). That means both side positions are momentary and return after actuation, while the center position remains off. This is useful for temporary directional or command signals.
Why does Honeywell 12TW59-7N use a locking lever?
A locking lever helps reduce accidental actuation. In operator control systems, that feature can improve control discipline and support safer, more intentional use.
Is Honeywell 12TW59-7N designed for demanding environments?
Yes. Its sealed design and wide operating temperature range make it relevant for installations where dust, vibration, thermal stress, or repeated use are expected.
Who typically looks for Honeywell 12TW59-7N?
OEM buyers, maintenance specialists, technical distributors, and engineers typically search for this exact part when they need a rugged DPDT momentary toggle switch with a locking lever and defined panel-mount characteristics.
