Honeywell 12TW401-7 Toggle Switch Explained for High-Reliability Control Panels

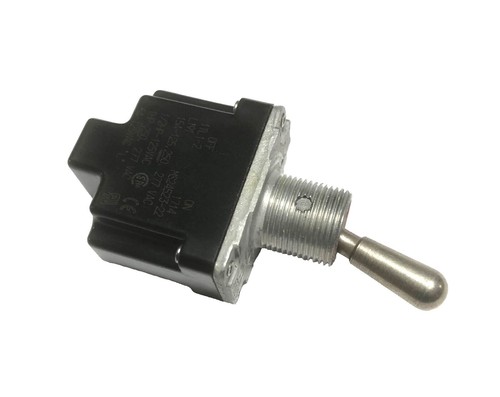

The Honeywell 12TW401-7 toggle switch is designed for applications where a miniature switch must deliver dependable performance under repeated use. As a Honeywell 12TW401-7 operator controls accessory, it is particularly relevant to engineers who prioritize tactile precision, compact panel integration, and environmental sealing in one component.
Why the Honeywell 12TW401-7 Draws Attention
This model is commonly associated with a DPDT configuration and a momentary ON-OFF-momentary ON switching profile. That makes the Honeywell 12TW401-7 operator control switch useful in circuits where temporary actuation is needed on both sides of the neutral position. In real systems, that can support directional commands, temporary mode selection, or operator-driven signal control without adding interface complexity.
One of the strongest reasons this switch remains relevant is that it brings together compact dimensions and rugged construction. Designers often struggle to fit durable components into limited panel space, especially in legacy or space-constrained assemblies. The 12TW401-7 addresses that challenge well.
Technical Characteristics in Context
The Honeywell 12TW401-7 accessory is listed with a 5 A current rating at 125 V AC and sealed construction intended for demanding operating conditions. Panel mounting via a threaded bushing supports mechanical stability, while solder-style termination helps maintain a secure electrical connection in fixed assemblies.
The flatted actuator style also matters more than it first appears. It can affect ergonomics, operator confidence, and repeatability in applications where the switch is used frequently. Small improvements in control feel often lead to better user interaction over the life of the equipment.
Its wide operating temperature range further supports deployment in applications where environmental conditions cannot always be controlled. For teams designing equipment that may be used in outdoor, mobile, or temperature-variable settings, that matters.
Typical Use Cases
The Honeywell 12TW401-7 toggle switch is suitable for industrial control panels, transport systems, specialist machinery, and other professional interfaces that require durable manual switching. It is also relevant wherever operators benefit from fast physical feedback rather than relying solely on digital screens or membrane controls.
In many maintenance-sensitive environments, choosing a well-documented Honeywell switch from an established series can simplify replacement planning and reduce service uncertainty.
FAQ
What kind of switch is the Honeywell 12TW401-7?
It is a sealed miniature toggle switch used in panel-mount operator control applications. It is generally selected for systems that require dependable manual actuation and compact installation.
What is the advantage of a momentary ON-OFF-momentary ON function?
That arrangement allows temporary activation in either direction from a neutral center position. It is useful when control commands should only remain active while the operator is applying force.
Why do engineers choose a sealed toggle switch instead of a basic one?
Sealed models are better suited to environments where dust, moisture, or contamination may affect the switch. This helps preserve reliability in tougher operating conditions.
Is the Honeywell 12TW401-7 good for compact panels?
Yes. It belongs to a miniature switch family, which makes it attractive for tighter layouts where full-size manual controls would consume too much space.
How should this switch be evaluated during component selection?
Engineers should compare the circuit function, current and voltage demands, mounting requirements, sealing needs, and expected operator usage pattern. A switch should always be chosen in relation to the real operating environment, not just the schematic.
For more information about Honeywell, it helps to compare this model with adjacent TW Series variants used in similar control architectures.
