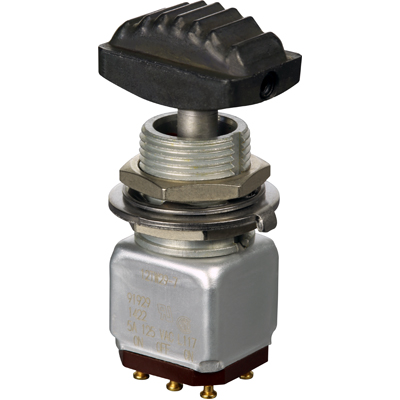

Honeywell 12TW29-7 Operator Controls Toggle Switch Review

The Honeywell 12TW29-7 operator controls toggle switch is intended for applications that require a three-position interface with momentary action on both ends. This model is identified as a DPDT Mom-Off-Mom configuration, which means the switch returns from each outer position while keeping the center position as Off. For designers and maintenance teams, the Honeywell 12TW29-7 toggle switch is relevant when temporary command input is more appropriate than maintained switching.

Current technical listings show the Honeywell 12TW29-7 operator controls model as a panel mount switch with solder turret termination, DPDT contact arrangement, 12.70 mm actuator length, and a knurled cap actuator style. It is also specified with a 15/32-32 bushing, 5 A AC current rating, 125 V AC voltage rating, and an operating temperature range of -65°C to 71°C. Distributor descriptions also identify it as a 3-position special design lever version, reinforcing its suitability for specialized control logic.

Because this part belongs to Honeywell’s TW Series, it benefits from the platform’s compact military-grade design language and environmental sealing focus. That matters in systems where a basic commercial switch may not withstand repeated use, contamination, or mechanical stress. For more information about Honeywell, the TW family is commonly associated with demanding industrial and transportation control applications.

Why the Honeywell 12TW29-7 Stands Out

The defining characteristic of the Honeywell 12TW29-7 operator controls toggle switch is its momentary-off-momentary behavior. This is useful where operators should trigger a function only while holding the lever, rather than leaving a circuit engaged after release.

Typical Control Scenarios

The Honeywell 12TW29-7 DPDT momentary toggle switch can be useful in jog controls, directional commands, temporary override inputs, and equipment interfaces that benefit from spring-return behavior. That makes it a strong candidate for machinery panels and specialist operator stations.

FAQ

What does Mom-Off-Mom mean on the Honeywell 12TW29-7?

It means both outer positions are momentary and the center position is Off. The lever does not stay latched in the end positions after release.

Why is momentary action useful?

Momentary action helps reduce unintended continuous activation. It is especially valuable where an operator should command motion, direction, or a temporary function only while physically holding the switch.

What termination style does the Honeywell 12TW29-7 use?

This model uses solder turret termination, which supports robust wiring practices in technical equipment and panel assemblies.

Is the Honeywell 12TW29-7 suitable for rugged environments?

Yes. It is part of Honeywell’s TW Series, which is documented for compact, durable, and environmentally resilient switching applications in demanding settings.
