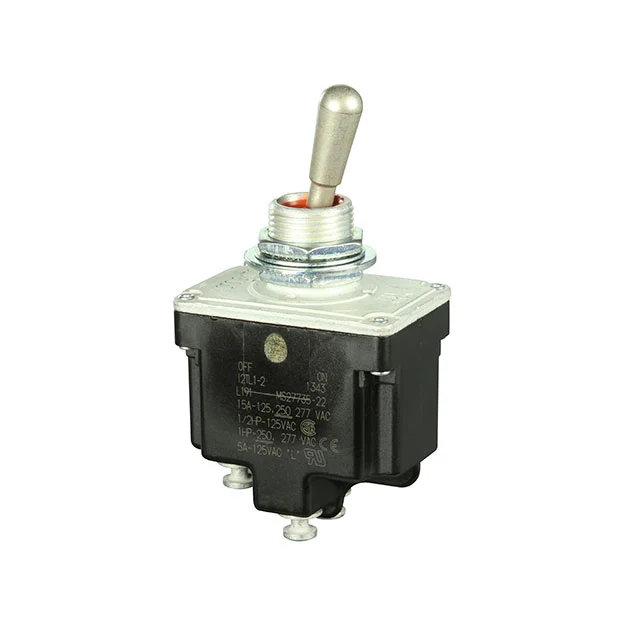

Honeywell 12TL1-2D Toggle Switch Guide
The Honeywell 12TL1-2D toggle switch is a rugged sealed switch developed for applications where simple two-position control must also be protected against accidental actuation. As part of the TL series, the Honeywell 12TL1-2D toggle switch combines a DPST On-Off switching format with a locking lever actuator, making it a more specialized alternative to standard two-position toggle designs.
Key Identity of the Honeywell 12TL1-2D Toggle Switch
This Honeywell toggle switch is built for panel mounting and intended for demanding operating conditions. The locking lever is one of its defining features because it supports more deliberate switching action. In technical environments, that matters when equipment should not be turned on or off casually. The Honeywell 12TL1-2D switch therefore fits well in systems where controlled operator input is part of the design requirement.
Technical Characteristics of the Honeywell 12TL1-2D Switch
The Honeywell 12TL1-2D toggle switch uses a DPST circuit with an On-Off function, a 15 A AC rating at 125 V AC, solder turret termination, and panel mounting. It is environment sealed and uses a locking lever actuator rather than a standard round lever. This gives the part a practical role in rugged industrial and technical control panels where a secure two-position switch is needed.
Honeywell’s TL series is widely associated with sealed construction and operation in conditions involving mechanical stress, temperature variation, and environmental exposure. That family reputation adds context to why the Honeywell 12TL1-2D toggle switch is often specified for more demanding installations instead of lighter-duty commercial switches.
Where the 12TL1-2D Toggle Switch Is Useful
Common application contexts may include industrial control stations, utility panels, transportation equipment, field service systems, and other hardware interfaces where accidental switching must be reduced. Because the Honeywell 12TL1-2D toggle switch is both sealed and lock-actuated, it supports a more disciplined control architecture.
For more information about Honeywell switch families and engineering-focused control components, it is worth reviewing how locking and non-locking TL versions differ.
FAQ
What kind of switch is the 12TL1-2D?
The Honeywell 12TL1-2D is a sealed toggle switch in the TL series. It is a DPST, two-position panel-mount model with a locking lever actuator.
What does the locking lever do on the 12TL1-2D toggle switch?
The locking lever helps prevent unintended switching. This is valuable in systems where an operator should make a deliberate action before changing the switch position.
What is the switch function of the 12TL1-2D?
The Honeywell 12TL1-2D toggle switch uses an On-Off function. It is intended for direct two-position switching rather than multi-position control.
Is the 12TL1-2D suitable for harsh service conditions?
Yes. The TL family is known for sealed construction and use in environments where vibration, dust, splashing moisture, and temperature variation can challenge standard switches.
How does the 12TL1-2D differ from the 12TL1-2?
The main difference is actuator type. The Honeywell 12TL1-2D toggle switch uses a locking lever, while the 12TL1-2 uses a standard round actuator. Both are DPST On-Off sealed panel-mount switches.
Why would an engineer choose the Honeywell 12TL1-2D?
An engineer may choose it when the design calls for a rugged two-position switch with secure actuation, environmental sealing, and a stronger protection against accidental operation.
