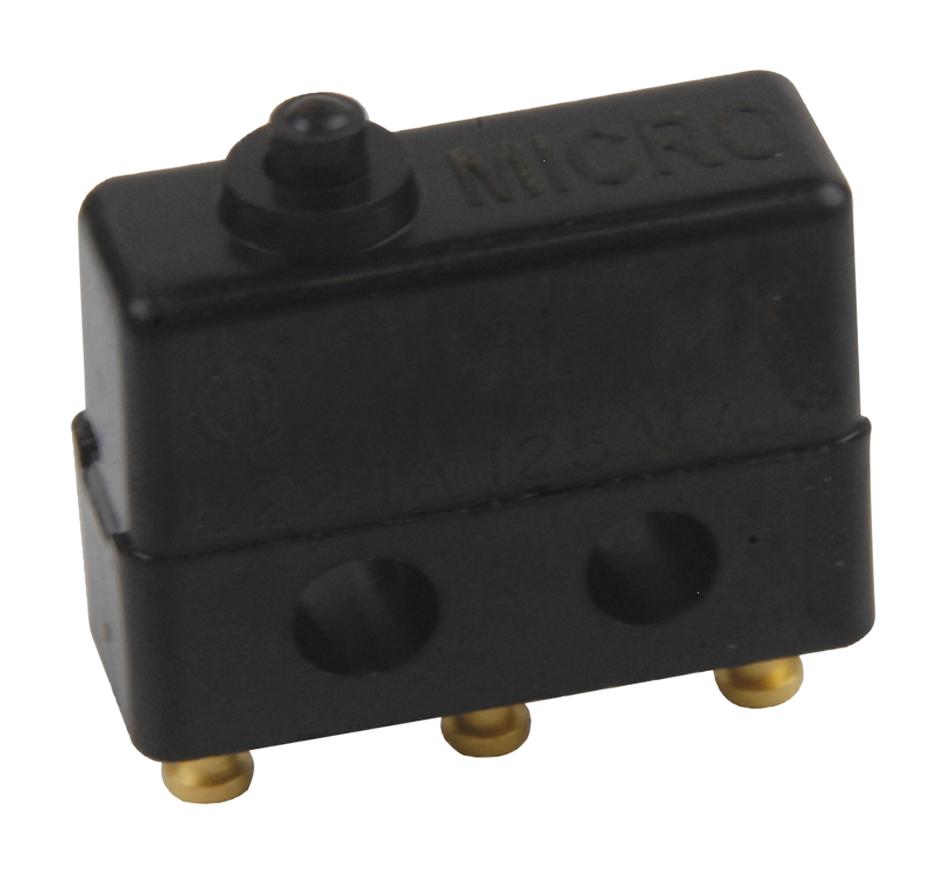

Honeywell 12SX3-H58 Basic Switch: Compact Design for Precision Switching

The Honeywell 12SX3-H58 basic switch is a subminiature snap-action switch developed for precise switching performance in compact mechanical and electrical assemblies. As part of the Honeywell SX series, it is built for applications where small size, stable actuation, and dependable contact behavior need to work together. The Honeywell 12SX3-H58 basic switch is especially useful when engineers want a compact switch with a familiar pin plunger actuation concept and termination that supports efficient installation or service access.

Technical Profile of the Honeywell 12SX3-H58 Switch

The Honeywell 12SX3-H58 switch is generally referenced as an SPDT snap-action switch with a pin plunger actuator, chassis mounting, and quick connect termination. It is commonly associated with a 1 A, 125 VAC rating and 28 VDC capability, while also using bifurcated gold contacts. That contact structure is important because it supports reliable low-energy switching and makes the Honeywell 12SX3-H58 electromechanical switch a logical option for sensitive control paths, signal-level switching, and precision actuation tasks.

Quick connect termination can be a practical advantage in equipment that may require streamlined assembly or field servicing. In contrast with soldered terminations, it can simplify replacement workflows in some maintenance environments. This does not automatically make it the better option for every project, but it does shape how engineers evaluate the switch during system design.

Best-Fit Applications for the Honeywell 12SX3-H58 Basic Switch

The Honeywell 12SX3-H58 basic switch can be used in instrumentation, HVAC support assemblies, compact control devices, office equipment, machine position feedback points, and tightly packaged industrial mechanisms. Its value comes from predictable actuation in a very small package rather than from brute electrical capacity.

In many real-world projects, the right switch is the one that reduces uncertainty. A component that delivers consistent actuation, stable contact performance, and integration flexibility can improve product reliability over time. For more information about Honeywell, reviewing related SX and MICRO SWITCH models can help determine the right balance between contact material, terminal format, and actuator style.

FAQ

What is the Honeywell 12SX3-H58 basic switch used for?

It is commonly considered for compact control and signal switching tasks in industrial, instrumentation, and mechanical assemblies.

Does the Honeywell 12SX3-H58 use gold contacts?

Yes. This model is associated with bifurcated gold contacts, which are often preferred for reliable low-energy switching performance.

Why is quick connect termination important on the Honeywell 12SX3-H58?

Quick connect termination can simplify assembly and maintenance in applications where easier wiring changes or service access are helpful.

Is the 12SX3-H58 a compact switch?

Yes. It belongs to the SX subminiature switch family, which is intended for applications where space and switching precision are both important.

How does the 12SX3-H58 differ from general-purpose larger switches?

Its advantage lies in compact size, controlled actuation, and contact reliability in smaller assemblies rather than high-current switching capacity.
