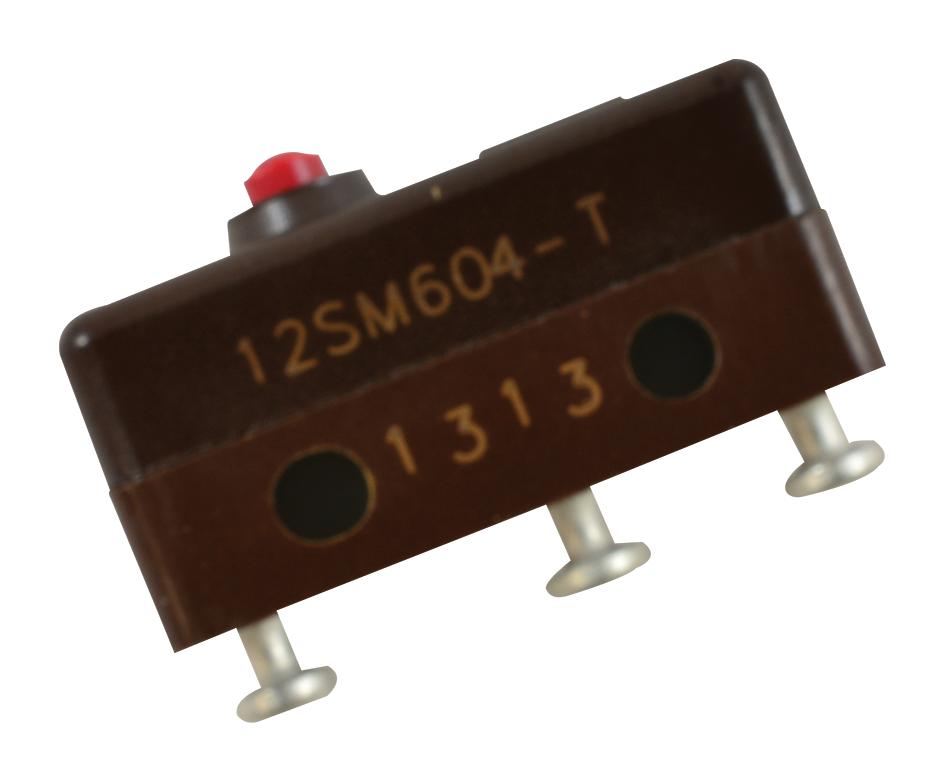

Honeywell 12SM604-T Basic Switch Explained
The Honeywell 12SM604-T basic switch is a precision electromechanical switch in the MICRO SWITCH SM Series, developed for applications that require dependable switching at lower electrical loads. Unlike heavier-duty variants in the same family, the Honeywell 12SM604-T basic switch is generally associated with a reduced 0.1 A rating and bifurcated gold contacts. That makes it especially relevant when engineers are prioritizing switching reliability in low-energy circuits rather than higher current capacity.
Core Characteristics of the Honeywell 12SM604-T Basic Switch
The Honeywell 12SM604-T snap action switch is typically described as an SPDT model with pin plunger actuation. In the official SM Series order guide, the 12SM604-T is specifically identified as a bifurcated gold contact version with reduced rating. This is an important distinction because it places the switch in a category often reviewed for signal-level or precision control functions where contact consistency is essential.
The Honeywell 12SM604-T electromechanical switch is also valued for its compact subminiature construction. In dense assemblies, engineers often need a switch that can provide repeatable operation without consuming unnecessary mounting space. A compact SM Series switch helps support that goal while keeping the switching interface mechanically predictable.
Why the 0.1 A Rating Matters
For technical buyers and product designers, the 0.1 A class is not a limitation by default. Instead, it is a design clue. It indicates that the Honeywell 12SM604-T basic switch is more appropriate for low-level switching tasks, signal circuits, or precision detection functions than for broad power switching. This makes the part relevant in instrumentation, sensing modules, compact control panels, and other applications where electrical cleanliness and reliable response are prioritized.
For more information about Honeywell, reviewing the wider SM Series is useful because other models in the range offer different force levels, current ratings, and contact styles.
Application Perspective
In real design work, the Honeywell 12SM604-T basic switch can be considered for limit detection, status sensing, position confirmation, and low-current control tasks. It is most useful when a design team clearly understands both the electrical load and the mechanical actuation profile of the final product.
FAQ
What is the Honeywell 12SM604-T?
It is a subminiature SPDT snap-action basic switch from Honeywell’s SM Series, designed for precision switching in compact electromechanical systems.
What makes the Honeywell 12SM604-T basic switch different from higher-rated SM switches?
The main difference is its reduced 0.1 A rating and bifurcated gold contact design, which makes it more suitable for lower-energy circuits and signal-oriented applications.
Is the Honeywell 12SM604-T suitable for industrial applications?
Yes, especially in industrial instrumentation, sensing, compact controls, and position-detection functions where low-current switching is needed.
Why would someone choose a 0.1 A switch?
A 0.1 A switch can be the right choice for signal integrity, contact stability, and precision switching in applications that do not require higher current handling.
Does the Honeywell 12SM604-T use a pin plunger actuator?
Yes. It is commonly identified as a pin plunger model within the SM Series pin plunger order guide.
What should be verified before specifying this model?
Engineers should review the actual circuit load, expected cycle count, actuator travel, mounting arrangement, and environmental conditions to ensure a correct match.
