Honeywell 11TS95-5 Toggle Switch: Technical Breakdown and Application Insight
The Honeywell 11TS95-5 toggle switch is another member of the TS Series and is generally associated with general-purpose operator control duties in panel-mounted electrical systems. Engineers and maintenance buyers searching for a Honeywell 11TS95-5 toggle switch, Honeywell 11TS95-5 operator control switch, or Honeywell 11TS95-5 panel switch are usually focused on matching a specific switching action in legacy equipment rather than simply finding any switch that looks similar.

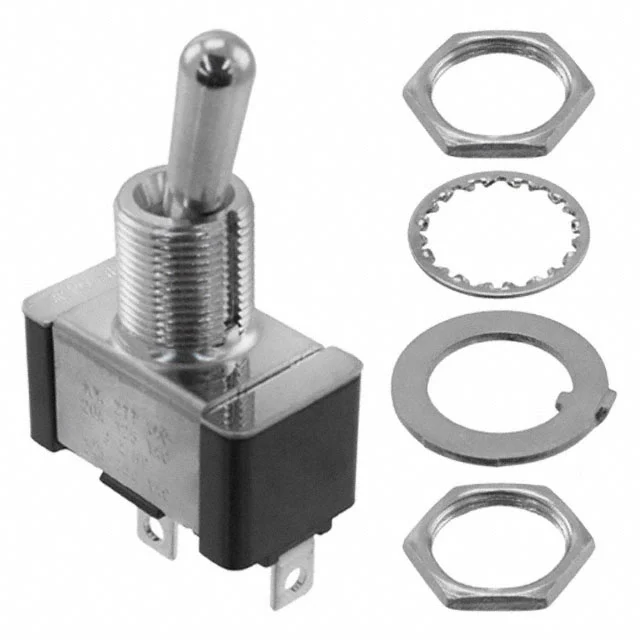

Technically, the Honeywell 11TS95-5 is an SPDT panel mount toggle switch with an on-off-momentary function. It is rated at 20 A at 125 V AC and uses 0.250 in (6.3 mm) quick-connect terminals. The actuator is a standard round lever measuring 16.51 mm, and the switch fits a 12.40 mm circular panel cutout with a 15/32-32 threaded bushing. Distributor data lists an operating temperature range of -54°C to 71°C, while Honeywell’s TS Series documentation describes the family as an unsealed, general-purpose toggle solution.
That combination makes the Honeywell 11TS95-5 toggle switch well suited to applications where quick installation and replacement matter. Quick-connect terminals can reduce service time in production maintenance and panel repair work, especially when technicians need to replace an operator control without rebuilding the entire wiring section. The on-off-momentary action also has clear practical value. It supports circuits that need a maintained running position, an off state, and a spring-return command on the opposite side. This pattern shows up in machine controls, auxiliary activation functions, and temporary command inputs.
How the Honeywell 11TS95-5 Differs from Sealed Toggle Switches
The key distinction is application environment. A Honeywell 11TS95-5 operator control switch can be an excellent fit in enclosed panels and protected installations, but it is not the same type of product as a sealed TL or TW Series toggle. That difference matters in technical writing, especially when documenting replacements for equipment exposed to dust, washdown, splash, or wide temperature swings. Selecting the right family avoids both under-specification and unnecessary cost.
For more information about Honeywell control products, it is helpful to review switch family differences before assigning a part number in maintenance documentation.
FAQ
What is the switch action of the Honeywell 11TS95-5?
It uses an on-off-momentary function. One side remains in position, the center is off, and the opposite side returns after being held and released.
Why are quick-connect terminals important on the Honeywell 11TS95-5?
Quick-connect terminals can simplify installation and service. In many panel applications, they help reduce replacement time and make field maintenance more straightforward than solder-based terminations.
Is the Honeywell 11TS95-5 a sealed toggle switch?
No. The broader TS Series is described as unsealed and intended for applications where a harsh-environment or third-party sealing requirement is not necessary.
Where might the 11TS95-5 be used?
It may appear in machine panels, utility controls, older industrial equipment, service enclosures, and other protected operator control locations where a clear tactile switch action is needed.
What should be checked before replacing a 11TS95-5 toggle switch?
Check the switch function, amp rating, terminal style, mounting thread, panel cutout, and environmental exposure. Many switch replacements fail not because of poor quality, but because the original control logic was not matched correctly.
