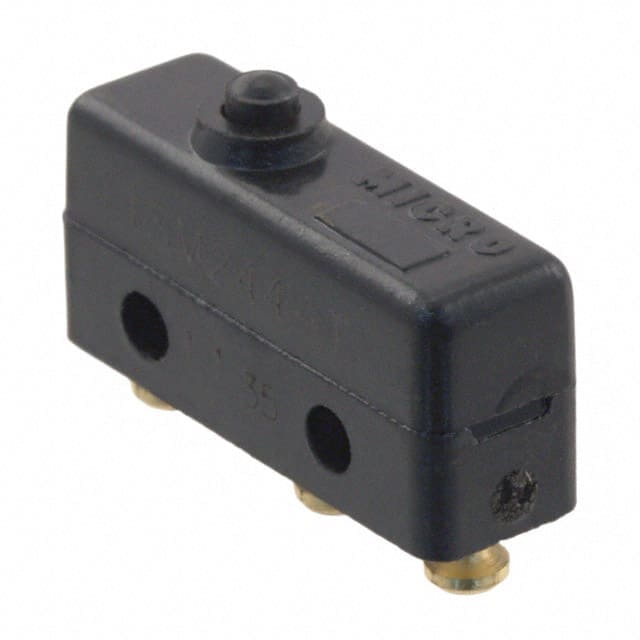

Honeywell 11SM244-T Basic Switch Technical Overview
The Honeywell 11SM244-T basic switch is a compact electromechanical switching solution designed for applications that require dependable snap-action performance and a higher electrical rating than many low-current subminiature alternatives. As part of the trusted SM Series, the Honeywell 11SM244-T basic switch combines precise mechanical response, durable construction, and practical integration for modern control assemblies.
Technical Features of the Honeywell 11SM244-T Basic Switch
This Honeywell 11SM244-T electromechanical switch is commonly listed with an SPDT contact arrangement, a pin plunger actuator, and a 5 A rating at 250 Vac. Distributor references also associate this model with chassis mounting and solder-style electrical termination. In the SM Series, that combination makes it useful in compact systems where designers want reliable switching without moving to a larger switch platform.
The switch is also aligned with broader SM Series benefits such as long mechanical life, precision operation, and stable switching characteristics across demanding working conditions. These qualities matter in products where switching consistency directly affects overall system behavior.
Where the Honeywell 11SM244-T Basic Switch Is Used
The Honeywell 11SM244-T basic switch is suitable for industrial controls, instrumentation, appliances, access systems, and compact mechanical assemblies. It is especially useful where a direct plunger-style actuation method is practical and where a strong balance of size, durability, and electrical capacity is needed.
In many designs, engineers choose this type of Honeywell basic switch for position sensing, mechanism confirmation, or on/off control in devices with repeated actuation cycles. Because the switch is compact, it supports efficient enclosure design. Because it is robust, it supports long-term field use.
Why Engineers Specify This Honeywell Basic Switch
The value of the Honeywell 11SM244-T basic switch lies in its practical balance. It offers more electrical capacity than lighter-duty signal switches while maintaining the small footprint that many compact devices require. That makes it relevant for teams looking to optimize both electrical performance and physical layout.
Its pin plunger format also supports straightforward mechanical engagement. That helps reduce design complexity in systems where a simple, accurate actuation path is preferred over more complicated sensor arrangements.
FAQ
What type of switch is the Honeywell 11SM244-T?
The Honeywell 11SM244-T basic switch is an SPDT electromechanical snap-action switch with a pin plunger actuator. It is part of Honeywell’s SM Series of premium subminiature basic switches.
What is the electrical rating of the Honeywell 11SM244-T basic switch?
This model is commonly listed with a 5 A at 250 Vac rating, making it suitable for applications that require more capacity than many lower-rated compact switches.
Where can the 11SM244-T basic switch be used?
It is often used in industrial equipment, appliance mechanisms, instrumentation, control assemblies, and other compact electromechanical systems that need dependable switching and repeatable actuation.
Why is the pin plunger actuator important in the Honeywell 11SM244-T?
A pin plunger actuator provides direct and precise mechanical triggering. That makes the switch useful in applications where the actuation point needs to remain predictable over time.
