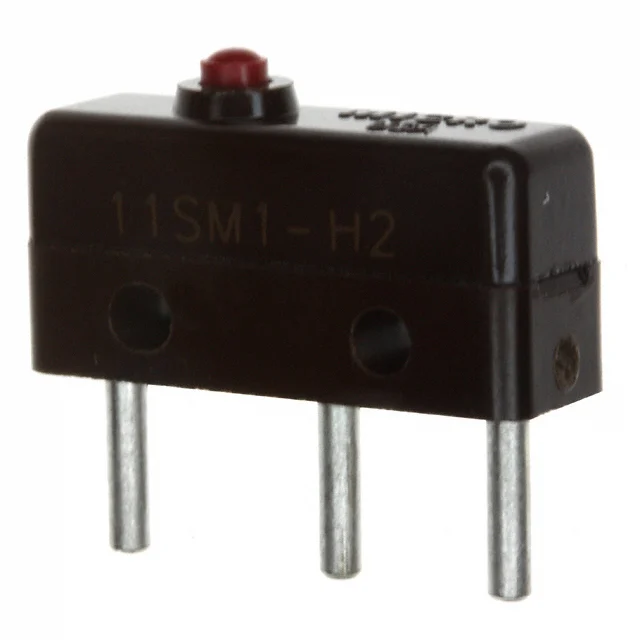

Honeywell 11SM1-H2 Basic Switch Overview
The Honeywell 11SM1-H2 basic switch is a compact electromechanical switching component designed for applications that need reliable snap-action performance in a small footprint. As part of the Honeywell SM Series, this Honeywell 11SM1-H2 basic switch is widely used in industrial controls, compact mechanical assemblies, instrumentation, and equipment that requires dependable SPDT switching. Engineers often search for terms such as Honeywell 11SM1-H2 basic switch, Honeywell 11SM1-H2 micro switch, and Honeywell 11SM1-H2 SPDT switch when they need a PCB-friendly switch with consistent mechanical characteristics.
Technical Specifications of the Honeywell 11SM1-H2 Basic Switch
The Honeywell 11SM1-H2 basic switch features an SPDT contact configuration and a round pin plunger actuator. It is rated for 5 A at 250 V AC and 30 V DC, which makes it suitable for many control and switching applications that need a compact but capable electromechanical device. One of its defining features is its through-hole PC pin termination, which makes this Honeywell 11SM1-H2 basic switch especially useful in assemblies where secure board-level electrical connection is preferred.
From a mechanical performance standpoint, the switch offers an operating force of 141 gf, a release force of 28 gf, a pretravel of 0.020 in (0.5 mm), a differential travel of 0.004 in (0.1 mm), and an overtravel of 0.005 in (0.13 mm). Its operating position is 0.330 in (8.4 mm). These values are important because they help define how precisely the switch reacts inside a mechanical system.
Typical Uses for the Honeywell 11SM1-H2 Basic Switch
The Honeywell 11SM1-H2 micro switch is a strong option for equipment that combines mechanical actuation with PCB-based control architecture. It can be used in industrial modules, compact housings, monitoring devices, safety interlock systems, and other applications where long mechanical life and repeatable switching are important. With a rated mechanical life of 10,000,000 cycles, it supports long-term use in repetitive duty environments.
The operating temperature range of -55°C to 125°C also supports use in demanding ambient conditions. In practical terms, that means the Honeywell 11SM1-H2 SPDT switch can remain stable in equipment exposed to temperature variation, enclosed heat, or cold-start conditions.
For more information about Honeywell, it is worth reviewing related SM Series configurations and compatible switch variants.
FAQ
What makes the Honeywell 11SM1-H2 basic switch different from other 11SM1 versions?
The key differentiator is its through-hole PC pin termination. This terminal style makes the switch particularly relevant for designs that integrate the switch directly into a printed circuit board layout rather than relying on quick-connect or turret-style wiring.
Is the 11SM1-H2 micro switch suitable for industrial equipment?
Yes. Its 5 A rating, broad operating temperature range, and long mechanical life make it suitable for many industrial and commercial systems. It is especially useful where compact size and reliable actuation are both important design factors.
Why do engineers choose the 11SM1-H2 SPDT switch for compact assemblies?
Engineers often select it because it combines precise switching behavior with a small physical profile and board-level connectivity. In compact devices, that combination can simplify mechanical design and improve overall wiring efficiency.
Can the 11SM1-H2 basic switch be used in long-life applications?
Yes. Its rated mechanical life of up to 10 million cycles supports applications that involve repeated actuation over time. This makes it a practical choice for products where durability and predictable switching performance are essential.
