Honeywell 112TW86-1E Toggle Switch Details

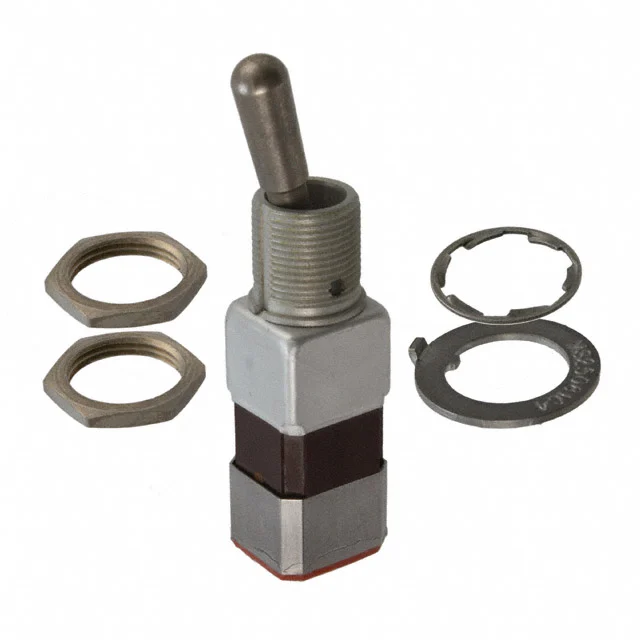

The Honeywell 112TW86-1E toggle switch is a compact sealed operator control intended for applications where reliable switching and clear positional logic are essential. This model belongs to Honeywell’s TW Series and is configured as a DPDT toggle switch with an On-Off-On function. That arrangement is widely used where two maintained operating states are needed with a clear neutral center position between them.
Technical Specifications of the 112TW86-1E
The 112TW86-1E DPDT toggle switch is rated for 2A at 115 V AC. It is designed for panel mounting and uses IWTS termination. A key feature is its locking lever actuator, which adds an extra level of operational security in installations where accidental movement should be minimized. The actuator length is 26.67 mm, which gives it a more prominent lever profile than some shorter variants in the series.
From a mechanical standpoint, the switch uses a 12.40 mm circular panel cutout and a 15/32-32 bushing thread. The housing is listed as environment sealed, and the operating temperature range extends from -65°C to 71°C. These characteristics make the Honeywell 112TW86-1E toggle switch relevant for technical environments where durability and consistency matter.
Why Engineers Look at the Honeywell 112TW86-1E
A DPDT On-Off-On switch can play an important role in control panels, transport equipment, industrial machinery, and specialist systems where two alternate maintained states must be selected. The center-off position can improve safety and process clarity by giving operators a defined neutral position. In real-world panel design, that often matters just as much as the current rating.
The 112TW86-1E operator control switch also stands out because of its locking lever format. In environments with vibration, repeated handling, or critical operator functions, that extra mechanical control can be a genuine advantage.
Installation and Product Selection Considerations
When replacing or specifying a sealed toggle switch, matching the circuit type alone is not enough. Lever style, mounting dimensions, and action profile all influence whether the switch will integrate correctly. The Honeywell 112TW86-1E toggle switch offers a combination of sealed construction, maintained On-Off-On logic, and a locking actuator that supports more controlled operation.
For more information about the broader product family, visit Honeywell.
FAQ About Honeywell 112TW86-1E
What is the switch function of the Honeywell 112TW86-1E?
The Honeywell 112TW86-1E toggle switch uses an On-Off-On function. This means it has two maintained operating positions with a center off position.
What circuit type does the Honeywell 112TW86-1E use?
It uses a DPDT circuit, allowing it to control two separate poles simultaneously. This is often useful in control, routing, and reversal-related switch logic.
What is the current and voltage rating of the Honeywell 112TW86-1E?
This model is rated at 2A at 115 V AC. That makes it suitable for many controlled switching applications where precision and reliability matter more than high current handling.
Does the Honeywell 112TW86-1E have a locking lever?
Yes. The switch is identified with a locking lever actuator, which can help prevent accidental actuation in demanding installations.
Is the Honeywell 112TW86-1E environmentally sealed?
Yes. The product is listed as environment sealed, supporting use in more challenging operating conditions.
Why is the actuator length important on the Honeywell 112TW86-1E?
The 26.67 mm actuator length affects ergonomics, panel clearance, and how easily the lever can be operated with gloves or in tightly arranged control spaces.
