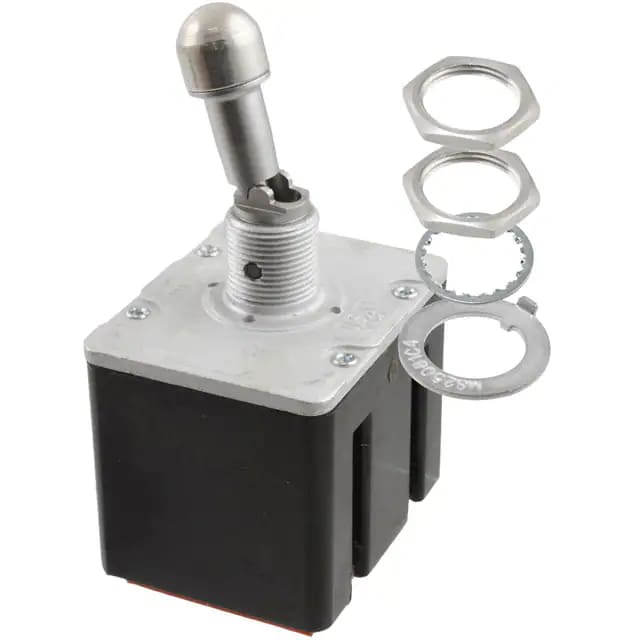

Honeywell 104TL2-1N Operator Control Toggle Switch
The Honeywell 104TL2-1N operator control toggle switch is a sealed 4PDT panel-mount switch built for demanding operator interface applications. This model uses an On-Off-On switching function together with a locking lever, which gives it a more controlled and intentional feel in operation. The Honeywell 104TL2-1N operator control switch is therefore especially relevant for panels where a center-off state is useful and switch movement should not happen casually.
Technical Overview of 104TL2-1N
The Honeywell 104TL2-1N operator control toggle switch is listed as part of the TL Series with 4PDT circuitry, panel mounting, IWTS termination, environmental sealing, and a locking lever actuator. Distributor references commonly show 7.5A AC/DC capability, 115 V AC, 30 V DC, 12.40 mm panel cutout sizing, and operating performance from very low to high industrial temperatures. Together, these details position the Honeywell 104TL2-1N operator control toggle switch as a serious option for rugged manual control design.
Why the Center-Off Function Matters
The On-Off-On format of the Honeywell 104TL2-1N operator control switch provides two active outer positions with a neutral center state. That can be helpful in systems that need a safe idle condition, manual reset point, or clearer separation between two operating modes. This makes the Honeywell 104TL2-1N operator control toggle switch a practical choice for more structured control logic.
Application Areas for the 104TL2-1N
This Honeywell operator control toggle switch can be considered for industrial machines, transportation systems, ruggedized enclosures, and specialist equipment where operators need dependable manual switching under difficult conditions. The sealed TL Series construction is one of the main reasons it remains relevant in harsh-environment applications.
Why Engineers Still Use Heavy-Duty Toggle Switches
Even in modern control systems, physical operator controls remain essential in many applications. The Honeywell 104TL2-1N operator control switch supports that need by offering clear tactile operation, robust construction, and reliable multi-circuit switching behavior.
For more information about Honeywell, exploring the full TL Series is useful when comparing center-off and three-active-position operator controls.
FAQ About 104TL2-1N Operator Controls
What is the switching function of the 104TL2-1N?
The Honeywell 104TL2-1N is typically identified as an On-Off-On 4PDT operator control toggle switch. That means it offers two active end states with a center-off position between them.
Why is a locking lever useful on the Honeywell 104TL2-1N?
A locking lever helps make actuation more deliberate. In technical equipment, this can reduce the chance of accidental movement and improve operator confidence when each switch position has a meaningful system function.
Is the 104TL2-1N suitable for demanding environments?
Yes. The Honeywell 104TL2-1N belongs to the sealed TL Series, which is designed for use in challenging environments involving vibration, temperature variation, and exposure to dust or moisture.
