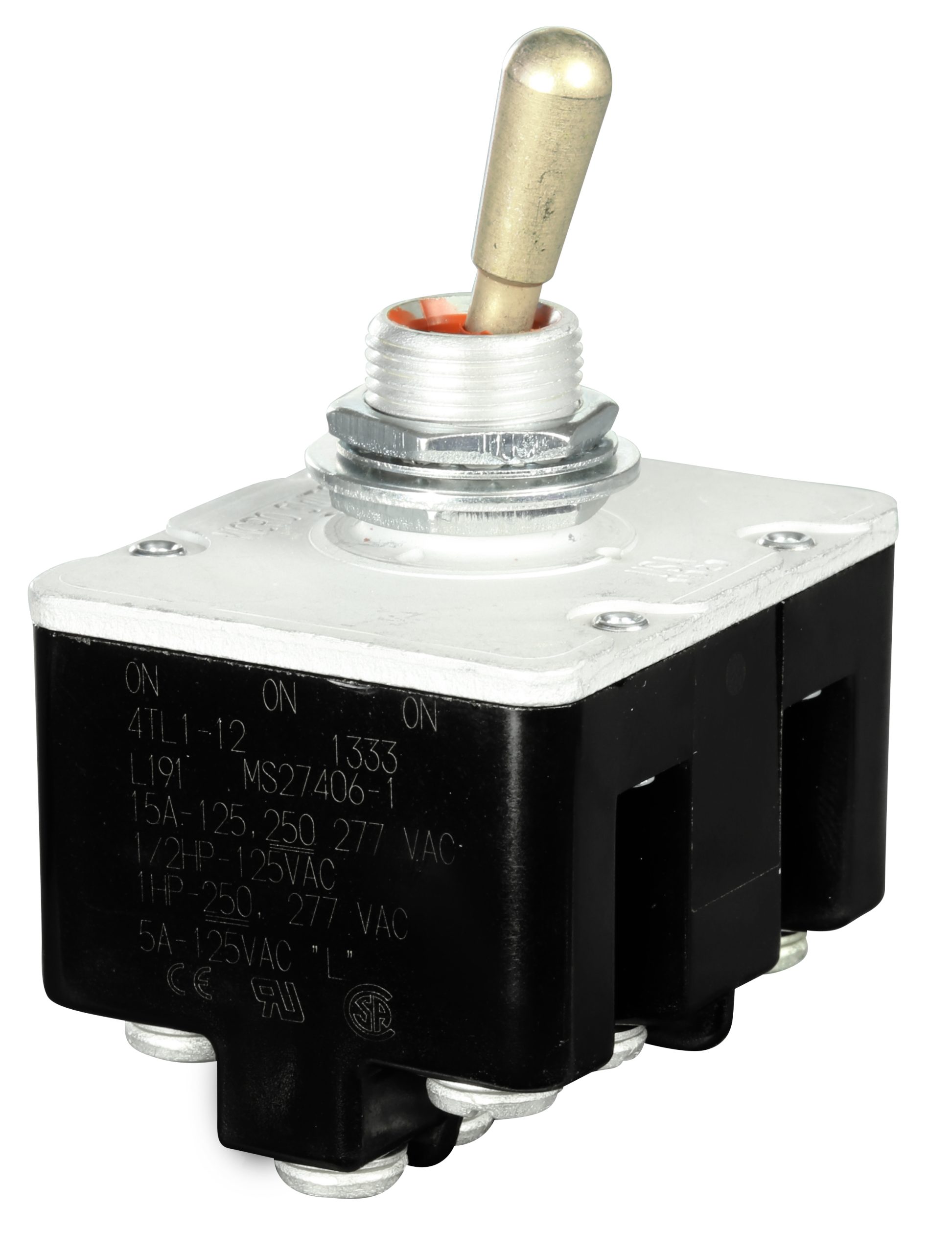

Honeywell 104TL1-12 Toggle Switch
The Honeywell 104TL1-12 toggle switch is a specialized TL Series operator control designed for applications that need more than a basic two-position switch. This model is generally identified as a 4PDT, 3-position toggle switch with special circuitry, making it useful in systems that require coordinated multi-circuit switching across three distinct lever positions.
What the 104TL1-12 Offers
Within the Honeywell TL Series, the Honeywell 104TL1-12 toggle switch stands out because it belongs to the special-circuit variants rather than the simplest standard configurations. That matters in control engineering because special-circuit toggles can support more deliberate signal routing and more application-specific logic. In real equipment, that may help when designers need controlled state changes across several connected lines.
Like the broader TL Series, the 104TL1-12 benefits from a sealed, military-grade style construction that supports use in high-reliability environments. Honeywell positions the TL family for demanding use cases involving vibration, shock, dust exposure, and severe operating conditions. For that reason, the Honeywell 104TL1-12 4PDT toggle switch is often considered where durability carries as much weight as electrical function.
Why Special Circuitry Matters
Not every toggle switch is built for nuanced circuit behavior. The Honeywell 104TL1-12 operator control switch is relevant because three-position, four-pole double-throw switching opens the door to more flexible control architecture. Instead of only starting or stopping a circuit, the switch can support staged selection, alternate routing, or structured manual control in panel-based systems.
This makes it a solid fit for aerospace controls, heavy equipment panels, transportation systems, and industrial operator interfaces where robust manual selection is needed.
Design Value in Practical Terms
The biggest strength of the Honeywell 104TL1-12 toggle switch is that it combines mechanical confidence with circuit complexity. Operators get a strong physical interface, while designers get a reliable multi-pole switching format suited to critical-duty applications. That combination keeps the part relevant across industries where hardware still needs to be direct, tactile, and resilient.
For more information about Honeywell, reviewing the wider TL Series can help identify the right action style and lock option for each panel design.
FAQ
What is the Honeywell 104TL1-12?
It is a TL Series toggle switch from Honeywell, generally specified as a 4PDT, 3-position switch with special circuitry.
Why would an engineer choose a 3-position toggle switch?
A 3-position switch allows more flexible manual control than a simple two-position device, especially when systems need multiple operating states.
Is the 104TL1-12 suitable for harsh environments?
Yes. It belongs to Honeywell’s sealed TL Series, which is designed for demanding applications with vibration, environmental exposure, and reliability requirements.
What does 4PDT mean in practice?
It means four poles are switched with double-throw capability, enabling coordinated control of multiple circuit paths from a single actuator.
Where is the Honeywell 104TL1-12 commonly used?
It is commonly relevant for industrial control panels, transport systems, aerospace-style controls, and mission-critical operator interfaces.
