Honeywell 103SR14A-2 HCS Magnetics Hall Effect Position Sensor
Honeywell 103SR14A-2 HCS Magnetics Sensor Overview
The Honeywell 103SR14A-2 HCS Magnetics Hall effect position sensor is a higher-sensitivity magnetic position sensor in the Honeywell 103SR series. It combines the 103SR14A family’s more responsive unipolar switching profile with a practical cable-connected format that suits industrial installation. For technical users searching Honeywell 103SR14A-2 HCS Magnetics, industrial Hall effect position sensor, or magnetic proximity switch with cable, this model is one of the more accessible variants in the sensitive 103SR14A branch.

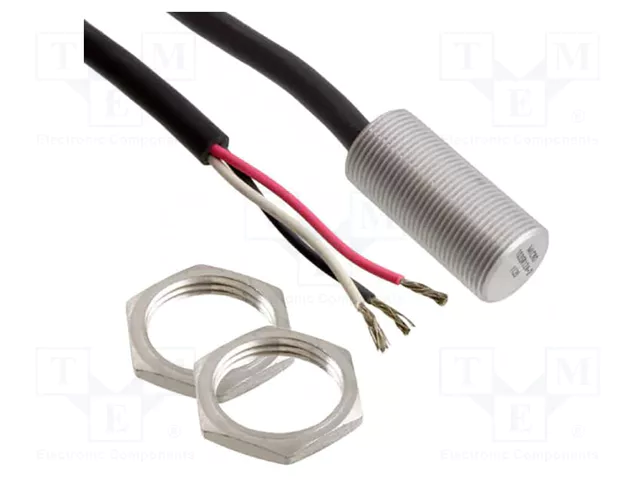

Variant data describes the Honeywell 103SR14A-2 as a unipolar Hall-effect digital position sensor with a 15/32-32 UNS-2A cylindrical aluminum threaded housing, two hex nuts, and a 1000 mm 22-gauge PVC insulated cable. Electrically, it shares the 103SR digital family’s 4.5 Vdc to 24 Vdc operating range and up to 20 mA sinking output capability. The 103SR14A branch is also associated with a lower magnetic switching threshold than 103SR13A, which makes it attractive in applications where designers need earlier or more sensitive response to a magnetic target.
Why the 103SR14A-2 Is a Practical Industrial Choice
One advantage of the Honeywell 103SR14A-2 HCS Magnetics Hall effect sensor is that it gives designers both sensitivity and installation convenience. The 1000 mm cable supports easier routing than a short lead-only version, while the threaded metal body enables secure mounting and positioning. In applications such as enclosure monitoring, actuator travel sensing, machine state detection, and magnet-based proximity feedback, that combination can simplify design and field installation.
Technical Relevance in Search and Specification Work
Professionals often search for high sensitivity Hall effect sensor, Honeywell 103SR14A-2 HCS Magnetics, and threaded industrial magnetic sensor when comparing options for compact automation layouts. This variant fits those needs with a familiar Honeywell package and a cable format suited to general-purpose industrial integration. For more information about Honeywell, it is useful to compare this model with the 103SR14A-1 when deciding between wire leads and a 1 meter cable.
FAQ
What makes the Honeywell 103SR14A-2 different from the Honeywell 103SR13A-2?
The biggest difference is magnetic sensitivity. The 103SR14A family is designed for more sensitive unipolar switching than the 103SR13A family.
Does the Honeywell include a cable?
Yes. This variant is commonly listed with a 1000 mm PVC insulated cable and a threaded aluminum housing.
What industrial uses fit the 103SR14A-2 well?
It is well suited for machine position feedback, panel status detection, end-of-travel sensing, and other magnet-based industrial automation tasks.
Is the 103SR14A-2 a digital output sensor?
Yes. It is a digital Hall-effect position sensor with current-sinking output behavior used in industrial control systems.
Why is the Honeywell HCS Magnetics model searched frequently?
It offers a practical mix of Honeywell build quality, threaded mounting, higher magnetic sensitivity, and a ready-to-install 1 meter cable format.
