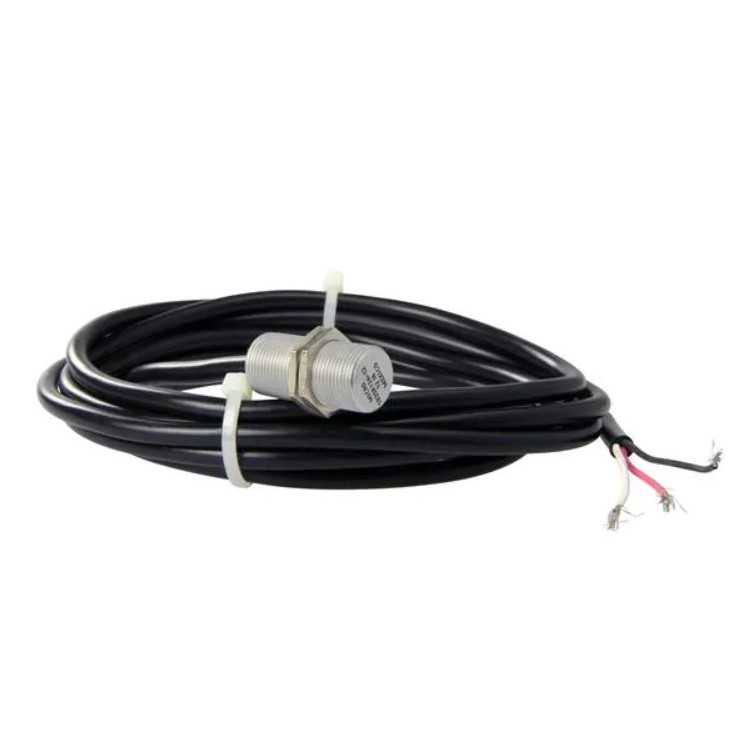

Honeywell 103SR13A-8 HCS Magnetics Hall Effect Position Sensor
Overview of the Honeywell 103SR13A-8 HCS Magnetics Sensor
The Honeywell 103SR13A-8 HCS Magnetics Hall effect position sensor stands out in the 103SR family because it is commonly listed with a cylindrical stainless steel housing rather than the standard aluminum body. That difference matters in environments where corrosion resistance, washdown exposure, or stricter material preferences influence sensor selection. For users searching Honeywell 103SR13A-8 HCS Magnetics, stainless steel Hall effect sensor, or industrial magnetic position switch, this model is one of the more environment-focused options in the range.
From an electrical perspective, the Honeywell 103SR13A-8 follows the standard 103SR13A digital unipolar profile. It operates from 4.5 Vdc to 24 Vdc, provides a current-sinking digital output up to 20 mA, and supports a -40 °C to 100 °C operating range. Variant listings describe this model with a 15/32-32 UNS-2A threaded stainless steel housing, two hex nuts, and a 1000 mm 22-gauge PVC insulated cable. That makes it attractive in installations where the sensor has to survive moisture, cleaning processes, or more aggressive ambient conditions than a basic indoor machine environment.
Why Stainless Steel Can Matter in Magnetic Sensing
The Honeywell 103SR13A-8 HCS Magnetics Hall effect sensor is often relevant in food-adjacent machinery, outdoor equipment, process handling systems, and industrial installations where material durability matters. Since it is a non-contact sensor, it avoids wear associated with mechanical switches. At the same time, the stainless housing can add confidence in applications where corrosion resistance and long service life are important design priorities.
Best-Fit Applications
This Honeywell magnetic position sensor is useful for gate sensing, actuator travel confirmation, moving component detection, and machine status monitoring where a target magnet can be mounted nearby. Its 1000 mm cable supports tidy wiring runs while preserving installation flexibility. For more information about Honeywell, it is worth reviewing how stainless and aluminum 103SR variants compare in real industrial environments.
FAQ
What is the main difference between Honeywell 103SR13A-8 and many other 103SR13A variants?
The most notable difference is the stainless steel housing, which is often preferred for more demanding environmental conditions.
Does the Honeywell 103SR13A-8 have a cable connection?
Yes. This variant is commonly listed with a 1000 mm PVC insulated cable and threaded mounting body.
Is the 103SR13A-8 still a unipolar Hall-effect sensor?
Yes. It remains part of the 103SR13A unipolar digital Hall-effect family.
Where is a stainless steel Hall effect position sensor most useful?
It is useful in environments where corrosion resistance, cleaning exposure, or outdoor durability are more important than with standard indoor installations.
Which technical keywords align with this model?
Relevant searches include Honeywell 103SR13A-8 HCS Magnetics, stainless steel Hall effect sensor, industrial magnetic position sensor, and threaded proximity Hall switch.
