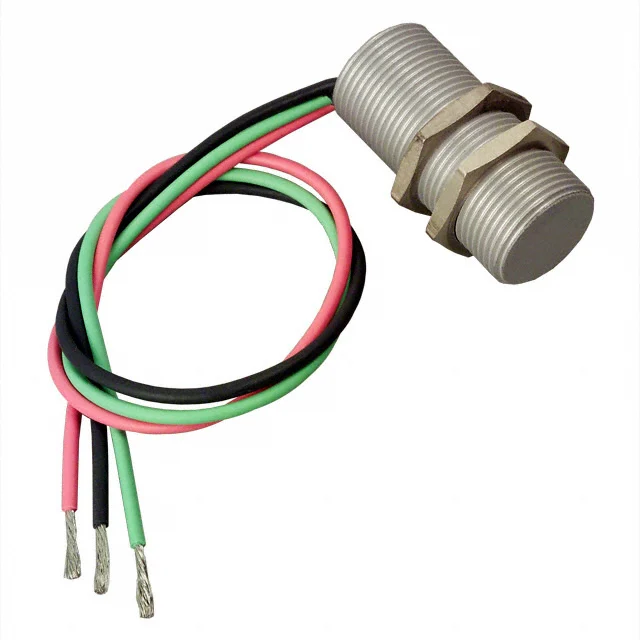

Honeywell 103SR13A-1 HCS Magnetics for Industrial Hall-Effect Position Sensing
The Honeywell 103SR13A-1 HCS Magnetics model belongs to the 103SR Series of Hall-effect position sensors and is designed for non-contact magnetic detection in industrial systems. In applications where dependable switching must be maintained across many cycles, Hall-effect sensing offers a practical advantage because it reduces the wear associated with mechanical contacts.
Technical Highlights of Honeywell 103SR13A-1 HCS Magnetics
Public specification summaries for the Honeywell 103SR13A-1 HCS Magnetics part describe a Hall-effect switch with 4.5 Vdc to 24 Vdc supply range, NPN open-collector output, 20 mA output current, and an operating temperature span of -40°C to 100°C. Honeywell’s 103SR Series documentation also explains that digital variants are available in unipolar, latching, and linear magnetic types in sealed threaded housings for industrial use.
This type of specification is important because it gives engineers flexibility across common industrial control voltages while supporting straightforward interface logic.
Where Honeywell 103SR13A-1 HCS Magnetics Fits Best
The Honeywell 103SR13A-1 HCS Magnetics Hall-effect sensor is useful in equipment that needs reliable magnetic position feedback, such as doors, covers, actuators, machine guards, compact transport systems, and motion-related detection points. Because it is designed around non-contact operation, it can help improve repeatability and support long-term stability in repetitive-use systems.
The threaded sealed package is also a strong advantage in industrial settings. It allows practical mounting while helping protect the sensing element in environments where moisture, dust, or general mechanical exposure may be present.
Why This Honeywell Magnetic Position Sensor Is Relevant
When engineers search for Honeywell 103SR13A-1 HCS Magnetics, they are often trying to balance environmental durability, clean electrical integration, and stable magnetic switching behavior. The 103SR platform addresses that need by combining industrial packaging with Hall-effect sensing technology.
For more information about Honeywell, explore the broader family of magnetic sensors and industrial controls.
FAQ: Honeywell 103SR13A-1 HCS Magnetics
What type of output does the 103SR13A-1 use?
Public specification sources describe it as using an NPN open-collector style output, which is common in industrial sensing and control circuits.
What voltage range does the 103SR13A-1 support?
Available technical summaries list a 4.5 Vdc to 24 Vdc supply range, which is well aligned with many industrial and embedded control platforms.
Why are Hall-effect sensors chosen instead of mechanical switches?
Hall-effect sensors detect magnetic fields without physical contact, which can reduce wear, improve life cycle consistency, and help maintain stable performance over repeated operation.
Is the Honeywell 103SR13A-1 suitable for industrial environments?
Yes. The broader 103SR Series is described by Honeywell as a rugged, sealed, threaded housing platform intended for demanding industrial use.
What is the main benefit of the Honeywell 103SR13A-1 HCS Magnetics product?
Its main value is dependable non-contact position sensing in a sealed industrial format that is easy to integrate into equipment and control architectures.
