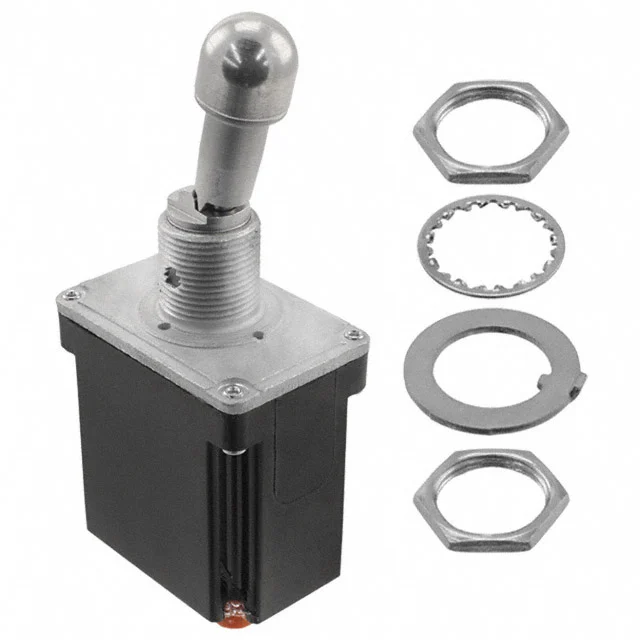

Honeywell 102TL2-50 Operator Controls Toggle Switch Overview
The Honeywell 102TL2-50 operator controls toggle switch is a TL Series DPDT panel mount switch created for rugged operator interfaces that require a combination of maintained and momentary positions. Current product data identifies this model with an On-On-Mom switch function, a 7.5 A current rating, 115 V AC and 30 V DC voltage ratings, a standard round actuator, a 17.27 mm actuator length, and IWTS termination. It is part of Honeywell’s sealed TL switch platform for demanding environments.
Why the Honeywell 102TL2-50 Operator Controls Switch Is Useful
The value of the Honeywell 102TL2-50 operator controls design is in its switching logic. An On-On-Mom layout gives the operator two maintained states plus one temporary position, which can be highly practical in specialized control systems. It supports interface layouts where one mode must remain selected while another action needs to be triggered only while the lever is intentionally held. That kind of behavior is often more efficient than combining multiple switches across the panel.
Sealed Construction and Professional Application Fit
The TL Series is well known for environment-proof sealing and a sealed switching chamber, with Honeywell documentation highlighting its suitability for applications exposed to vibration, dust, splash, and temperature extremes. That broader design reputation adds confidence to the Honeywell 102TL2-50 toggle switch, especially in operator interfaces where equipment reliability is more important than simplified consumer-style hardware.
For engineers and maintenance teams, this model represents a practical balance of compact size, flexible switching behavior, and rugged mechanical execution. It is especially relevant where a standard two-position toggle would be too limited. For more information about Honeywell, it can be helpful to compare the 102TL2-50 with the 102TL2-5 if the application hinges on which side of travel is momentary.
FAQ
What function does the Honeywell 102TL2-50 use?
It uses an On-On-Mom switching function in a DPDT format.
What makes this different from a simple On-On toggle?
The added momentary position allows one temporary control input in addition to two maintained states, which increases interface flexibility.
Is the Honeywell 102TL2-50 operator controls switch part of a sealed series?
Yes. It belongs to the TL Series, which is documented as environment-proof and suited for demanding conditions.
What are the main electrical ratings?
The published ratings are 7.5 A, 115 V AC, and 30 V DC.
Where can the Honeywell 102TL2-50 be applied effectively?
It is effective in industrial panels and specialized equipment interfaces where operators need two maintained positions and one momentary action in a single switch body.
