Honeywell 102TL2-3G Operator Controls Toggle Switch Guide

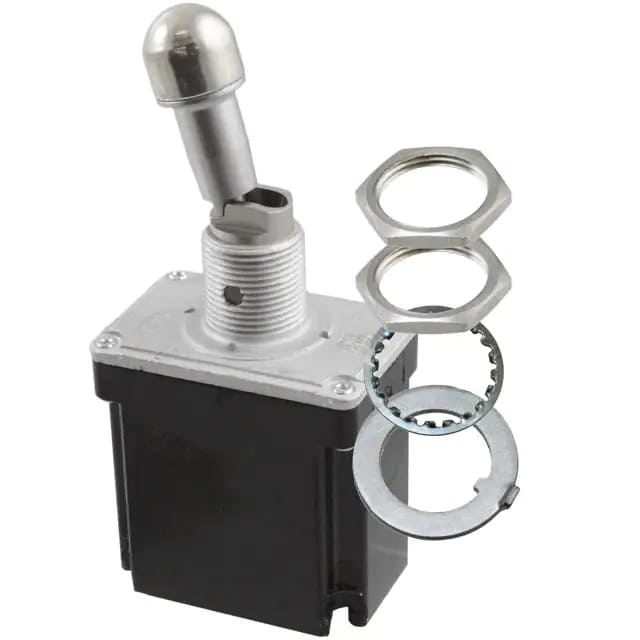

The Honeywell 102TL2-3G operator controls toggle switch is a sealed DPDT panel mount toggle switch in the TL Series with an On-On function. Current product data lists a 7.5 A current rating, 115 V AC and 30 V DC voltage ratings, a locking lever, a 26.67 mm actuator length, IWTS termination, a 12.40 mm panel cutout, a 15/32-32 bushing thread, environment sealing, and an operating temperature range of -65°C to 71°C.
What the Honeywell 102TL2-3G Operator Controls Model Offers
The Honeywell 102TL2-3G operator controls configuration is focused on controlled actuation and rugged service. Because it combines a locking lever with a maintained DPDT On-On arrangement, it is useful in systems where operators must intentionally shift between two active positions and where casual movement of the switch should be minimized. This is a classic requirement in higher-discipline control panels, especially where environment sealing and mechanical reliability are non-negotiable.
TL Series Engineering Context
Honeywell’s TL Series has a long-standing reputation for sealed construction and dependable use in environments affected by shock, vibration, water splash, dust, and temperature extremes. The series documentation references environment-proof sealing and a completely sealed switching chamber, which helps explain why models like the Honeywell 102TL2-3G toggle switch continue to be specified in industrial and transportation-related applications.
This switch is not about decorative panel hardware. It is about repeatable mechanical action, clear electrical behavior, and integration into equipment that must keep working under real operational pressure. For more information about Honeywell, reviewing other locking TL Series variants can help determine whether this exact actuator style is the best operational match.
FAQ
What is the circuit type of the Honeywell 102TL2-3G?
It is a DPDT toggle switch with an On-On function.
Does the Honeywell 102TL2-3G operator controls switch use a locking lever?
Yes. The actuator type is listed as a locking lever.
Is the switch sealed for harsh conditions?
Yes. It is described as environment sealed, and the TL Series is intended for demanding environments.
What are the electrical ratings?
The listed ratings are 7.5 A, 115 V AC, and 30 V DC.
Why might an engineer choose this model over a standard lever version?
The locking lever adds an extra layer of intentional control, which can be beneficial where unintended switching must be avoided.
