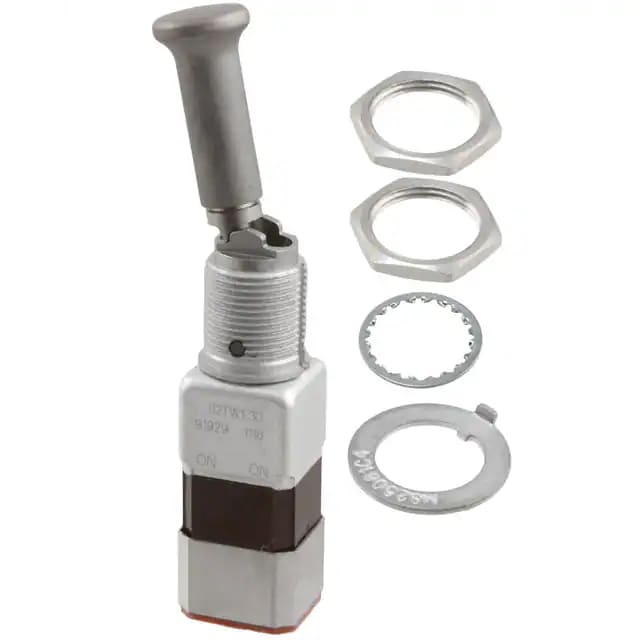

Honeywell 102TL1-3 Operator Controls: DPDT On-On Toggle Switch
The Honeywell 102TL1-3 operator controls are a TL Series DPDT 2-position On-On toggle switch with integrated wire termination for 14-16 gauge wire and a standard lever. Product sources identify the model with military part number MS27723-23, placing it within Honeywell’s long-established sealed-toggle portfolio. For engineers and maintenance teams searching for a Honeywell 102TL1-3 operator controls toggle switch, the attraction lies in the combination of dual-pole switching, rugged panel integration, and the TL Series reputation for harsh-environment performance.
What the On-On Format Means
The Honeywell 102TL1-3 operator controls do not include a center-off position. Instead, they provide two maintained active states in a DPDT arrangement. That matters in designs where the operator is not choosing between active and idle, but between two defined operating paths. In some systems, that is the cleanest control logic available. Rather than adding a more complex interface, a two-position On-On toggle provides direct, readable, mechanical state selection.
Technical Strengths of Honeywell 102TL1-3 Operator Controls
The switch belongs to a family Honeywell describes as military qualified to MIL-DTL-3950, with bonded seals and a sealed switching chamber built for hard service. The TL Series is associated with applications involving vibration, shock, dust, splashing water, and temperature extremes. Those characteristics are why the Honeywell 102TL1-3 operator controls remain relevant in industrial control systems, aviation-related panels, and test or support equipment where mechanical certainty is still preferred. Search terms such as Honeywell DPDT On-On switch, sealed operator controls, and Honeywell 102TL1-3 panel mount toggle all point toward that same demand profile.
Where This Model Fits
The Honeywell 102TL1-3 operator controls fit applications that require switching between two live states with clear lever feedback and strong environmental durability. For more information about Honeywell, it is useful to compare this standard-lever version with the 102TL1-3D and 102TL1-3F locking variants, which serve similar electrical roles with different mechanical control behavior.
FAQ
What is the core function of Honeywell 102TL1-3?
It is a DPDT 2-position On-On panel-mount toggle switch with integrated wire termination.
Does it have a center off position?
No. This model is an On-On configuration, which means both lever positions are active states.
Is this a harsh-environment switch family?
Yes. Honeywell describes the TL Series as environment-proof sealed and suited to demanding applications.
Why would an engineer choose an On-On toggle?
Because some systems need a straightforward choice between two active circuits or operating modes rather than an active/off pattern.
