Honeywell 102TL1-2D Operator Controls: Locking DPST Toggle Guide

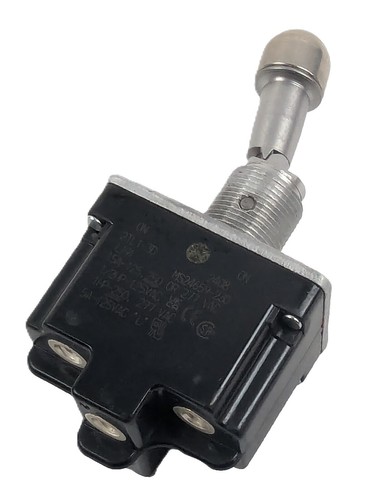

The Honeywell 102TL1-2D operator controls are a locking-lever version of the TL Series DPST Off-On toggle format. Available specifications describe the model as a DPST 2-position Off-On switch with integrated wire termination for 14-16 gauge wire, panel mounting, a locking lever locked out of center position, environment sealing, and operating capability from -65 °C to 71 °C. In practical terms, the Honeywell 102TL1-2D operator controls toggle switch is designed for applications that want the simplicity of Off-On switching but with more intentional operator action than a standard free lever provides.
What the “D” Variant Changes
Within the TL Series, suffix changes often signal meaningful differences in lever behavior. In the case of the Honeywell 102TL1-2D operator controls, the switch keeps the same basic DPST Off-On electrical role but adds a locking lever arrangement. That matters in real equipment because two-position switches are often placed in safety-related or mission-critical user paths. A locking action can help prevent accidental changes during vibration, incidental contact, or routine operator movement around a crowded panel.
Technical Strengths of Honeywell 102TL1-2D Operator Controls
The part is associated with military part number MS27782-22D and belongs to a series Honeywell describes as MIL-DTL-3950 qualified. The TL Series is also known for bonded sealing between key exterior interfaces and for use in demanding environments. Engineers looking for Honeywell 102TL1-2D operator controls, Honeywell locking DPST toggle switch, or sealed Off-On operator controls are usually evaluating reliability, positive actuation, and environmental survivability at the same time. That combination explains why this type of part continues to appear in high-specification panels.
Application Value
The Honeywell 102TL1-2D operator controls fit industrial machinery, mobile equipment, aerospace support panels, and specialized instrumentation where operators need a clear two-state command with some protection against unintended movement. For more information about Honeywell, comparing the 102TL1-2D with the non-locking 102TL1-2 helps clarify how mechanical behavior can influence system usability just as much as electrical rating.
FAQ
What is the main function of Honeywell 102TL1-2D?
It is a DPST 2-position Off-On panel-mount toggle switch with a locking lever.
Why choose the 102TL1-2D over the 102TL1-2?
The electrical function is similar, but the 102TL1-2D adds a locking lever for more deliberate operator control.
Is it suitable for harsh-duty environments?
Yes. It belongs to the sealed TL Series, which Honeywell positions for demanding environments including vibration and temperature extremes.
What kind of users typically look for this model?
Engineers maintaining rugged panels, replacing qualified parts, or specifying sealed manual controls for industrial and transport-related equipment often search for this model.
