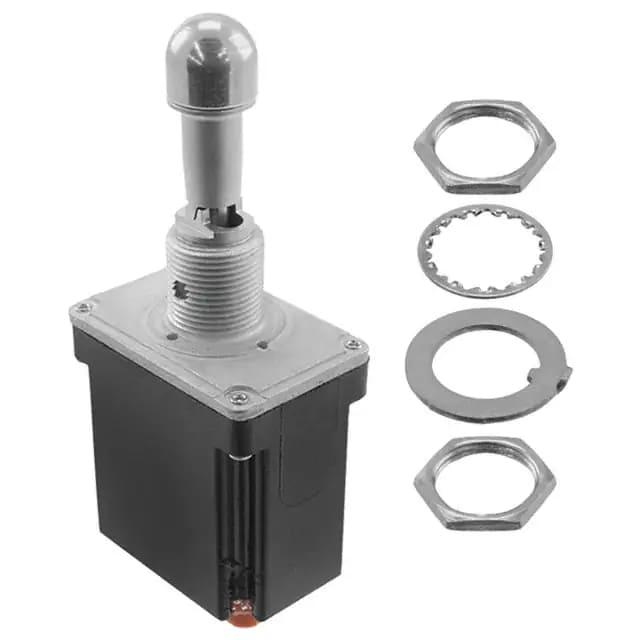

Honeywell 102TL1-10A Operator Controls: Locking Toggle Switch Guide
The Honeywell 102TL1-10A operator controls are part of the MICRO SWITCH TL Series and are built for applications that need a sealed, panel-mounted toggle switch with more deliberate operator action. This model is defined as a DPDT 3-position special circuitry switch with On-On-On operation, integrated wire termination for 14-16 gauge wire, and a locking lever locked in all three positions. That makes the Honeywell 102TL1-10A operator controls toggle switch especially useful where accidental movement must be reduced and switching position must be more intentional.
Why the Locking Lever Matters
In real operating environments, switch position security can be just as important as electrical performance. The Honeywell 102TL1-10A operator controls answer that requirement with a lever design that locks in each of the three maintained positions. This added control can be valuable in aviation support systems, industrial control stations, rugged machinery panels, and other installations where vibration, operator contact, or environmental movement could otherwise cause unintended actuation. Compared with a standard lever version, the 102TL1-10A introduces a more controlled human-machine interface without changing the basic TL Series design language.
Technical Highlights of Honeywell 102TL1-10A Operator Controls
This model carries military part number MS27782-1A and belongs to a switch family qualified to MIL-DTL-3950. Honeywell literature describes the TL Series as environment-proof sealed, with a completely sealed switching chamber and robust construction intended for demanding conditions. The 102TL1-10A also uses panel mounting with a threaded bushing and IWTS termination, which makes it a strong fit for control panels where compact, secure wiring and dependable field performance are priorities. Engineers often search for phrases such as Honeywell 102TL1-10A operator controls, Honeywell locking toggle switch, and sealed DPDT On-On-On switch when specifying this kind of component.
Typical Use Context
The Honeywell 102TL1-10A operator controls are relevant in process systems, industrial machinery, medical instrumentation, agricultural equipment, test instruments, and military or commercial aviation support assemblies where a locking, multi-position toggle is preferred. The main benefit is not flashy design; it is repeatable, deliberate operator input. For more information about Honeywell, reviewing the broader TL Series is helpful because the “A” suffix is one of several lever-behavior variations available within the same switch platform.
FAQ
What is the main difference between Honeywell 102TL1-10 and 102TL1-10A?
The most important difference is the lever style. The 102TL1-10 uses a standard lever, while the 102TL1-10A uses a locking lever that is locked in all three positions.
Does the Honeywell 102TL1-10A support complex switching logic?
Yes. It is a DPDT 3-position switch with special On-On-On circuitry, making it more versatile than a basic two-position toggle.
Is the 102TL1-10A intended only for aerospace use?
No. While the TL Series is strongly associated with military and aerospace environments, Honeywell also points to industrial, agricultural, construction, process, and instrumentation applications.
Why would someone choose a locking lever version?
A locking lever can help prevent unintended switching and gives the operator more control in environments with motion, vibration, or strict procedural requirements.
