Honeywell 102MG11 HCS Magnetics
The Honeywell 102MG11 HCS magnetics component is a purpose-built magnetic actuator intended for sensor applications rather than a general industrial magnet. In sensing systems, the magnet is part of the performance equation. It influences sensing distance, response reliability, packaging design, and installation flexibility. That is why engineers choosing a magnetic sensor often also pay close attention to the actuator magnet. The Honeywell 102MG11 HCS magnetics part is one of those components that supports accurate system behavior when matched correctly with Hall-effect or magnetoresistive sensing technology.
What the Honeywell 102MG11 HCS Magnetics Part Does

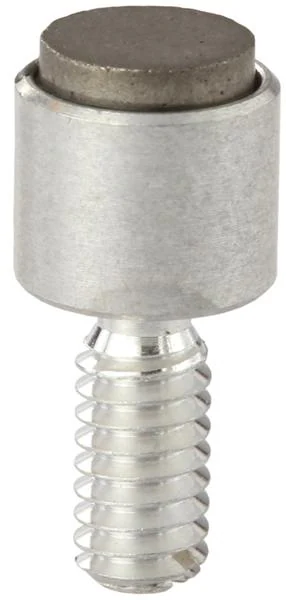

This part belongs to Honeywell’s MG Series of magnets, which are intended to actuate compatible sensor devices. The series is designed to help engineers match magnet size, strength, and mechanical format to application requirements. In the case of the Honeywell 102MG11 HCS magnetics model, the part is commonly described as an Alnico 8 cylindrical magnet with axial magnetization and an externally threaded shaft format. That combination makes it useful where a secure mechanical installation and defined magnetic performance are both required.
Unlike generic magnets sourced only by dimensions, a sensor-oriented magnet must be selected with system behavior in mind. Sensing distance, target alignment, temperature limits, and packaging constraints can all affect the outcome. By using a part such as the Honeywell 102MG11 HCS magnetics reference, designers gain a clearer path toward repeatable integration.
Why Engineers Use Sensor-Specific Magnets
Hall-effect and magnetoresistive sensors rely on magnetic field characteristics, not just physical presence. The wrong magnet may reduce sensing distance, create unstable actuation points, or complicate calibration. Honeywell MG Series magnets are intended to provide minimum magnetic fields at specified distances, which helps system designers choose an appropriate part for their sensor architecture.
The Honeywell 102MG11 HCS magnetics model is therefore relevant in door-position sensing, machine interlock detection, limit sensing, industrial automation, and compact embedded sensor designs. Its defined size and mounting format help simplify the mechanical side of sensor implementation.
Practical Design Considerations
When selecting this magnet, teams should verify compatible sensor type, actuation distance, magnetic orientation, operating temperature, and mounting geometry. Mechanical alignment matters just as much as magnetic strength. A properly mounted magnet improves repeatability, while poor positioning can create inconsistent results.
Because Honeywell offers multiple MG Series options, using the exact part number supports traceability and more predictable performance. For more information about Honeywell, reviewing the relevant magnetic-sensor ecosystem can help clarify part compatibility.
FAQ
What is the Honeywell 102MG11 HCS magnetics part used for?
It is used as a magnetic actuator for compatible sensing applications, particularly with Hall-effect and magnetoresistive sensor devices.
What material is used in the Honeywell 102MG11?
The part is commonly identified as an Alnico 8 magnet, which is chosen for stable magnetic characteristics in sensing applications.
Why not use a generic magnet instead?
Generic magnets may not provide the right field profile, mechanical format, or repeatability. Sensor-specific magnets help support consistent actuation performance.
What should be checked before choosing this magnet?
Check sensor compatibility, operating gap, mechanical mounting, magnetic orientation, and the environmental temperature range of the application.
Is this a sensor by itself?
No. It is a magnetic actuator component used alongside a compatible magnetic sensor.
