Honeywell 102MG11-BP HCS Magnetics
The Honeywell 102MG11-BP HCS magnetics part is a bulk-packaged magnetic actuator designed for sensor-oriented applications where repeatability, mechanical compatibility, and defined magnetic behavior matter. In sensing assemblies, the magnet should never be treated as an afterthought. It directly affects switching distance, alignment tolerance, and response stability. That is why the Honeywell 102MG11-BP HCS magnetics reference is useful in projects that require a documented, repeatable magnetic actuator rather than an unspecified off-the-shelf magnet.
Understanding the Honeywell 102MG11-BP HCS Magnetics Design

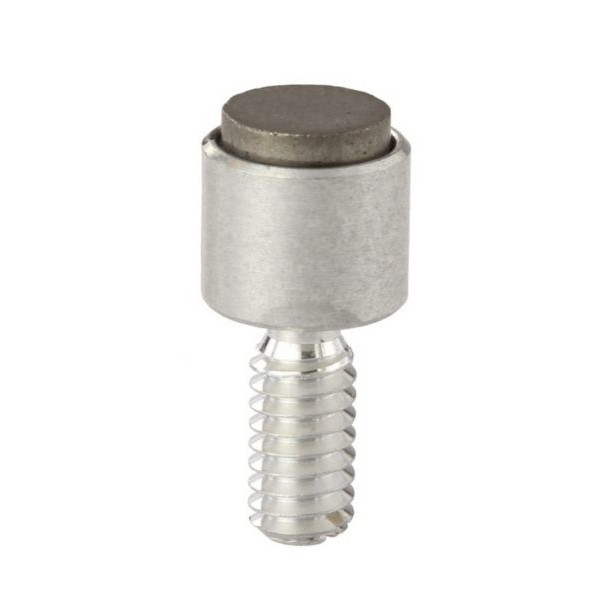

This model belongs to the Honeywell MG Series and is closely related to the 102MG11 base design, but with bulk-packaging context for higher-volume requirements. The part is identified as an Alnico 8 sintered cylindrical magnet in an externally threaded metal bushing format. That makes it well suited to installations where the magnet must be positioned securely and repeatedly in sensor-based assemblies.
Because it is packaged for larger-quantity usage, the Honeywell 102MG11-BP HCS magnetics part is especially relevant for OEM production, repetitive service kits, and standardized sensing assemblies. In such scenarios, maintaining a consistent magnet reference helps preserve actuation behavior across multiple units.
Why a Defined Magnet Part Number Matters
In Hall-effect and magnetoresistive sensor systems, the distance between the sensor and the actuator magnet affects how the system responds. A part with known dimensions, material, and magnetic properties can simplify engineering decisions. Honeywell’s MG Series is designed to help system designers select the appropriate magnet for their sensing requirements, which is valuable in industrial automation, position sensing, access control, machine guarding, and embedded device design.
The Honeywell 102MG11-BP HCS magnetics model also supports documentation discipline. Instead of using generic magnets that vary between suppliers, engineers can specify a part tied to a recognized sensing ecosystem. That improves design traceability and often simplifies long-term maintenance.
Application and Integration Notes
This part may be used where threaded installation is preferred and where a stable cylindrical magnetic actuator supports a compatible sensor. Typical use cases include door state sensing, machine position feedback, safety interlock arrangements, and proximity-triggered signal detection.
Before implementation, designers should confirm actuation distance, sensor operating thresholds, temperature exposure, orientation, and mechanical thread compatibility. Those checks are important because reliable sensing depends on both magnetic and physical alignment. For more information about Honeywell, broader product-family resources can help confirm system fit.
FAQ
What does the BP version mean in Honeywell 102MG11-BP HCS magnetics?
It indicates a bulk-packaged version intended for higher-volume handling and production-oriented usage.
Is the Honeywell 102MG11-BP a sensor?
No. It is a magnet used to actuate a compatible magnetic sensor.
What type of magnet is used here?
It is identified as an Alnico 8 sintered cylindrical magnet with a threaded mounting format.
Why would engineers choose this over a generic magnet?
Because it supports more predictable sensor actuation, better traceability, and easier documentation in engineered systems.
Where can this part be applied?
It can be applied in industrial sensing, interlock systems, machine position detection, door monitoring, and OEM sensor assemblies.
