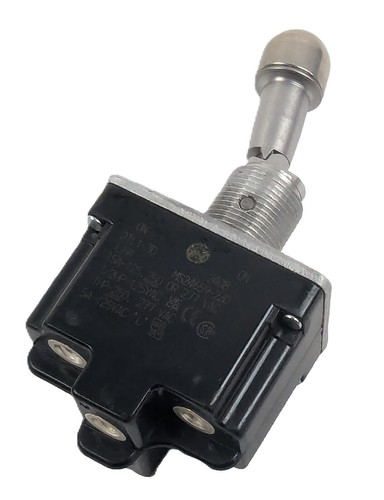

Honeywell 101TL1-2D Operator Controls Locking Toggle Switch

The Honeywell 101TL1-2D Operator Controls toggle switch is designed for applications where a standard on-off switch is not enough and additional control security is required. In real installations, accidental actuation can create downtime, confusion, or even safety risk. That is why locking toggle switches remain highly relevant in industrial controls, transportation systems, service equipment, and specialized panels. A locking mechanism adds intentionality to every switch action, which can be extremely valuable in high-consequence environments.

The Honeywell 101TL1-2D Operator Controls part is commonly listed as a sealed TL Series toggle switch with an SPST on-off function, panel mounting, and a locking lever configuration. Honeywell’s TL Series is broadly described as environmentally sealed and suitable for demanding applications involving shock, vibration, temperature extremes, dust, and splashing or hose-directed water exposure. For additional manufacturer context and related solutions, more information about Honeywell is available here.

Technical Overview of Honeywell 101TL1-2D Operator Controls

The Honeywell 101TL1-2D Operator Controls locking toggle switch is used where a single controlled circuit path must be switched on and off, but with a more deliberate actuation method than a conventional free-moving lever. The locking feature can help prevent unintended switching caused by vibration, operator contact, or incidental panel interaction. In environments where the switch controls a critical enable function, maintenance mode, or auxiliary subsystem, that extra layer of mechanical control can be a meaningful advantage.

Available product references identify this model within the TL Series, with panel-mount architecture and sealed construction. As with other family members, the wider TL Series framework is associated with -65°C to 71°C operation and rugged environmental suitability.

Why a Locking Lever Is Important

The biggest advantage of the Honeywell 101TL1-2D Operator Controls locking toggle switch is reduced risk of accidental state change. In many industrial and transport applications, a switch may be installed close to other controls, exposed to vibration, or used in an environment where operators wear gloves. A locking mechanism helps ensure that the switch position changes only when the user intends it to change.

This is particularly useful for maintenance bypasses, arm/disarm functions, subsystem enable control, and field equipment interfaces where an unintended toggle movement could interrupt a process or activate equipment unexpectedly. It is a small design choice with outsized practical value.

Application Areas for Honeywell 101TL1-2D Operator Controls

The Honeywell 101TL1-2D Operator Controls part can be considered for industrial control stations, specialty vehicles, portable service equipment, machinery panels, generator interfaces, power distribution cabinets, and harsh-duty operator consoles. In each of these applications, the switch does not just serve an electrical purpose. It also contributes to human factors engineering by making the control state more intentional and resistant to error.

That is one reason this type of part remains relevant even in systems with sophisticated digital interfaces. Manual hard controls still have a crucial role, especially where immediate tactile access and predictable physical behavior are required.

Specification Notes for Engineers and Buyers

When selecting the Honeywell 101TL1-2D Operator Controls model, engineers should confirm whether the locking direction and release behavior match the intended application. A locking toggle switch is most effective when its mechanical behavior aligns naturally with the control logic and operator expectations. Panel spacing, wiring access, and lever clearance should also be reviewed before final specification.

Because this is a sealed professional-grade switch, it is often chosen for lifecycle reliability rather than only initial function. That makes long-term maintainability, replacement planning, and operator training part of the overall selection picture.

FAQ About Honeywell 101TL1-2D Operator Controls

What kind of switch is Honeywell 101TL1-2D Operator Controls?

The Honeywell 101TL1-2D Operator Controls part is commonly identified as an SPST on-off sealed toggle switch with a locking lever, intended for rugged panel-mount use.

Why would a locking toggle switch be preferred?

A locking toggle switch helps prevent accidental actuation. This is useful in equipment where an unexpected switch movement could affect safety, interrupt operation, or trigger an unwanted state change.

Where is Honeywell 101TL1-2D commonly used?

It can be used in industrial panels, field equipment, transport systems, power interfaces, and control stations where deliberate manual switching is required in demanding environments.

Is Honeywell 101TL1-2D environmentally sealed?

Yes. It belongs to the Honeywell TL Series, which is described as environmentally sealed and suited for harsh-duty conditions including vibration, dust, splashing, and temperature extremes.

What should be checked before specifying Honeywell 101TL1-2D?

It is important to confirm circuit requirements, lever locking behavior, panel fit, operator access, and the environmental conditions of the final installation. These details help determine whether the switch is the right functional and ergonomic match.
